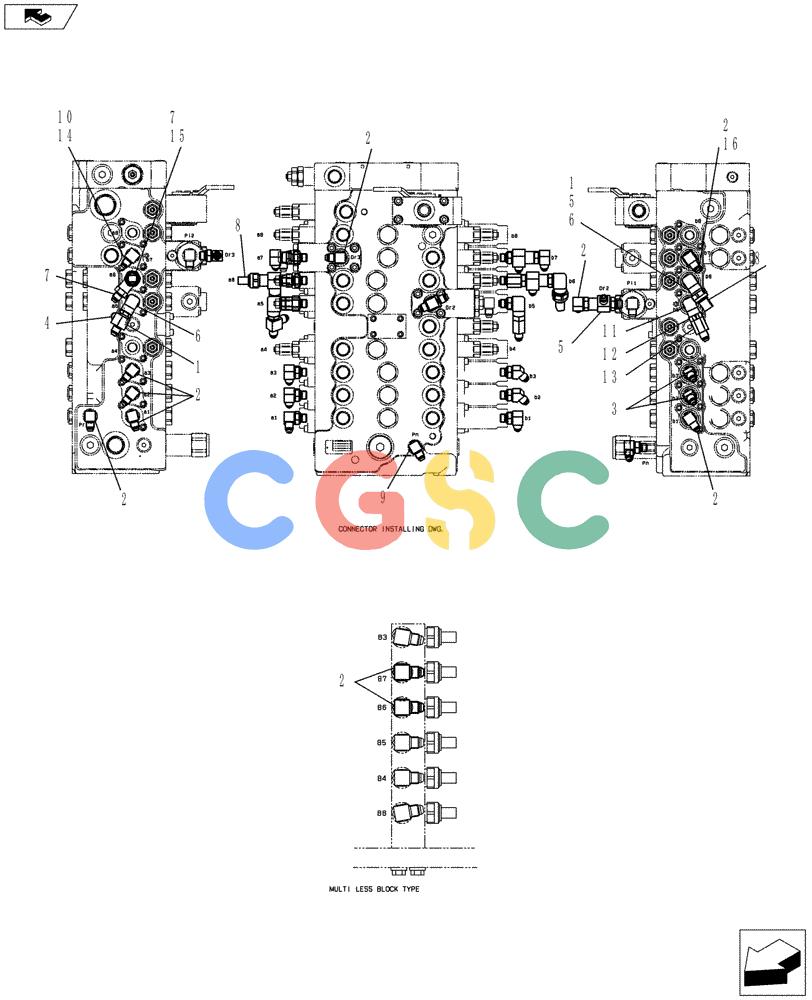

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-026[02]) - CONTROL LINES, MAIN (NIBBLER & BREAKER + DOZER + BOOM ARM SAFETY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2444Z2894 | [2] | 90 ELBOW | KOB |
| 2. | ZH32X04000 | [8] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB90 |
| 3. | ZH42X04000 | [2] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB45 |
| 4. | 2444Z2336 | [1] | HYD CONNECTOR | KOB |
| 5. | 2444Z2461 | [2] | TEE | KOB |
| 6. | 2444Z2525 | [2] | HYD CONNECTOR | KOB |
| 7. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| 8. | YX52S00013P1 | [2] | SENSOR | SMPress Superseded by part number: LC52S00019P1 |
| 9. | HH35X04004G3 | [1] | 90 ELBOW | KOB |
| 10. | 2444R596D1 | [1] | ELBOW | KOB |
| 11. | PH62H01003P1 | [1] | ELBOW | KOB Superseded by part number: 72283832 |
| 12. | PF21V00006P1 | [1] | CHECK VALVE | KOB |
| 13. | 2444Z4473 | [1] | HYD CONNECTOR | KOB |
| 14. | YY21V00001F1 | [1] | CHECK VALVE | KOB |
| 15. | YT64H01023P1 | [1] | TEE | KOB |
