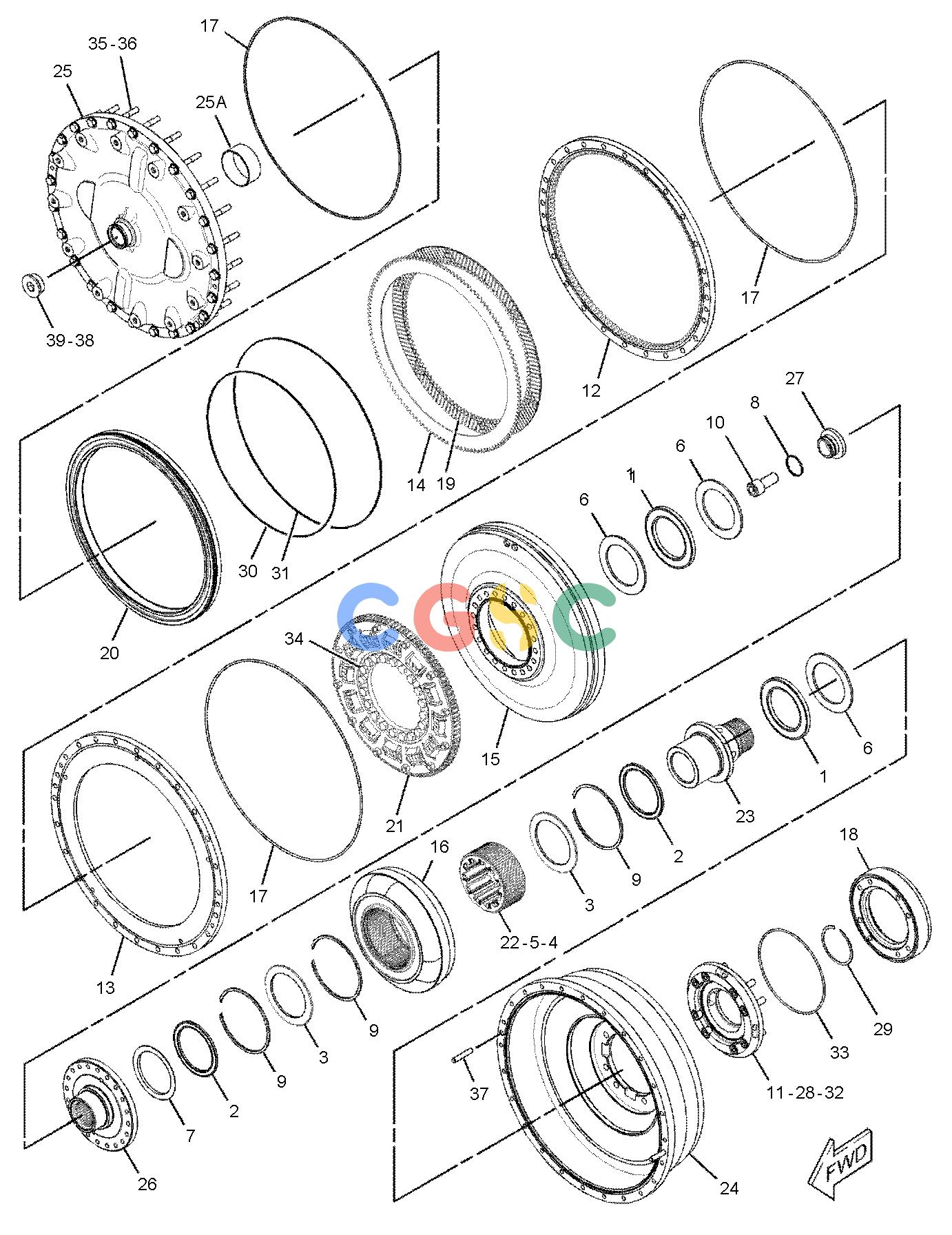

卡特零件查询（730C） 288-2660: TORQUE CONVERTER GP
广数供应链运营团队, 15 02月, 2025，浏览：
200 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1T-0655 | [2] | BEARING-THRUST | |
| 2. | 1T-1078 | [2] | BEARING-THRUST | |
| 3. | 1T-0657 | [2] | PLATE | |
| 4. | 1T-0679 | [11] | ROLLER-FREEWHEEL | |
| 5. | 1T-0680 | [11] | SPRING-FREEWHEEL | |
| 6. | 1T-0686 | [3] | RACE-THRUST BEARING | |
| 7. | 1T-0762 | [1] | RACE-THRUST BEARING | |
| 8. | 7S-7018 | [1] | RING-SEAL METAL | |
| 9. | 8B-7789 | [3] | RING-SNAP | |
| 10. | 260-3738M | [1] | BOLT-SOCKET HEAD(M20X2.5X45-MM) | |
| 11. | 260-9530 | [1] | HUB-IMPELLER | |
| 12. | 260-9554 | [1] | PLATE-SPLINED | |
| 13. | 260-9555 | [1] | PLATE-BACKING | |
| 14. | 260-9557 | [1] | PLATE | |
| 15. | 268-0169 | [1] | TURBINE-CONVERTER | |
| 16. | 268-8128 | [1] | STATOR-CONVERTER | |
| 17. | 269-9158 | [3] | SEAL-O-RING | |
| 18. | 272-7959 | [1] | ADAPTER-DRIVE | |
| 19. | 275-5308 | [1] | DISC-FRICTION | |
| 20. | 283-0015 | [1] | PISTON | |
| 21. | 283-3534Y | [1] | COUPLING GP-DRIVE | |
| 22. | 284-3599 | [1] | CAM-FREEWHEEL | |
| 23. | 293-5988 | [1] | CARRIER-STATOR | |
| 24. | 297-6403 | [1] | IMPELLER | |
| 25. | 364-5467 | [1] | HOUSING AS-CLUTCH | |
| 25A. | 1T-0577 | [1] | BUSHING | |
| 26. | 390-9741 | [1] | HUB | |
| 27. | 390-9762 | [1] | RETAINER | |
| 28. | 095-0670M | [8] | BOLT(M12X1.75X45-MM) | |
| 29. | 154-1581 | [1] | RING-RETAINING | |
| 30. | 1S-6515 | [1] | RING-SEAL | |
| 31. | 2S-1362 | [1] | RING-SEAL | |
| 32. | 5P-7213 | [8] | WASHER-HARD(13.5X20.5X2-MM THK) | |
| 33. | 6V-1902 | [1] | SEAL-O-RING | |
| 34. | 6V-4249M | [20] | BOLT(M10X1.5X50-MM) | |
| 35. | 6V-5839 | [24] | WASHER(11X21X2.5-MM THK) | |
| 36. | 6V-7981M | [24] | BOLT(M10X1.5X70-MM) | |
| 37. | 7B-0472 | [2] | DOWEL | |
| 38. | 7L-3386 | [1] | SEAL-O-RING | |
| 39. | 9S-8010 | [1] | PLUG | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
