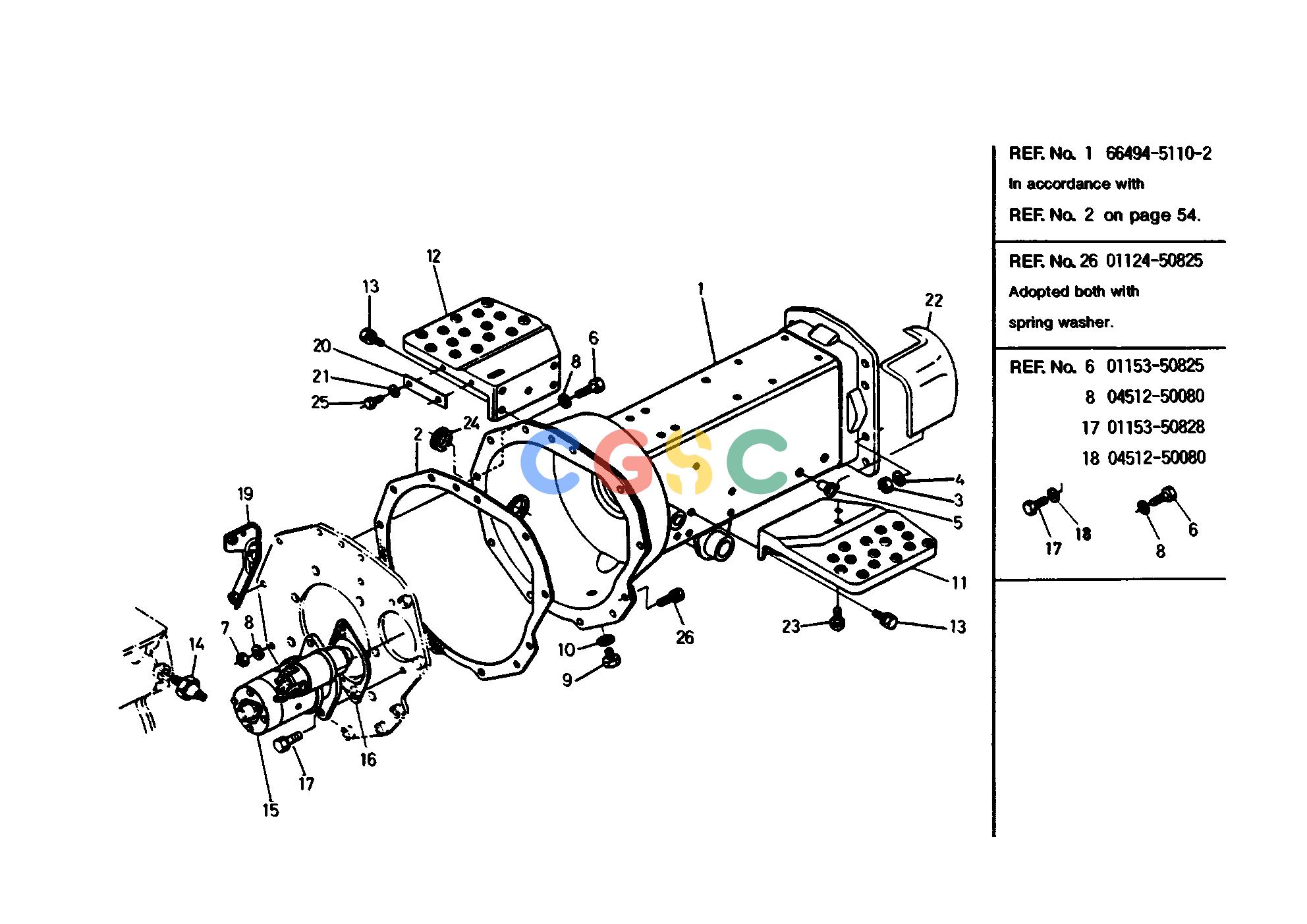

久保田零件查询T04600 CLUTCH HOUSING GROUP CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6649451100
|
[1] |
HOUSING CLUTCH
|
28.6000(lbs); 13.000
|
| 001. |
6649451102
|
[1] |
HOUSING CLUTCH
|
0.0000(lbs); 0.000
|
| 002. |
6662151410
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 003. |
0211850100
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 004. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 005. |
6659154390
|
[8] |
PLUG
|
0.0022(lbs); 0.001
|
| 006. |
0115350825
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 007. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 008. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 009. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 010. |
0471701600
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 011. |
6671151130
|
[1] |
STEP LH
|
4.5716(lbs); 2.078
|
| 012. |
6671151140
|
[1] |
STEP RH
|
4.1360(lbs); 1.880
|
| 013. |
0112050818
|
[10] |
BOLT
|
0.0000(lbs); 0.000
|
| 014. |
1522139010
|
[1] |
SWITCH OIL
|
0.0000(lbs); 0.000
|
| 015. |
1523163010
|
[1] |
ASSY STARTER
|
0.0000(lbs); 0.000
|
| 016. |
6659151160
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 017. |
0115350828
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 017. |
0112450828
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 018. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 019. |
6681151450
|
[1] |
STAY FILTER
|
0.2244(lbs); 0.102
|
| 020. |
6671151180
|
[1] |
PLATE
|
0.0990(lbs); 0.045
|
| 021. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 022. |
6670482610
|
[1] |
COVER
|
0.4510(lbs); 0.205
|
| 023. |
0112050814
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 024. |
6670451190
|
[1] |
CAP
|
0.0198(lbs); 0.009
|
| 025. |
0112050818
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 026. |
0112450825
|
[10] |
BOLT
|
0.0330(lbs); 0.015
|
