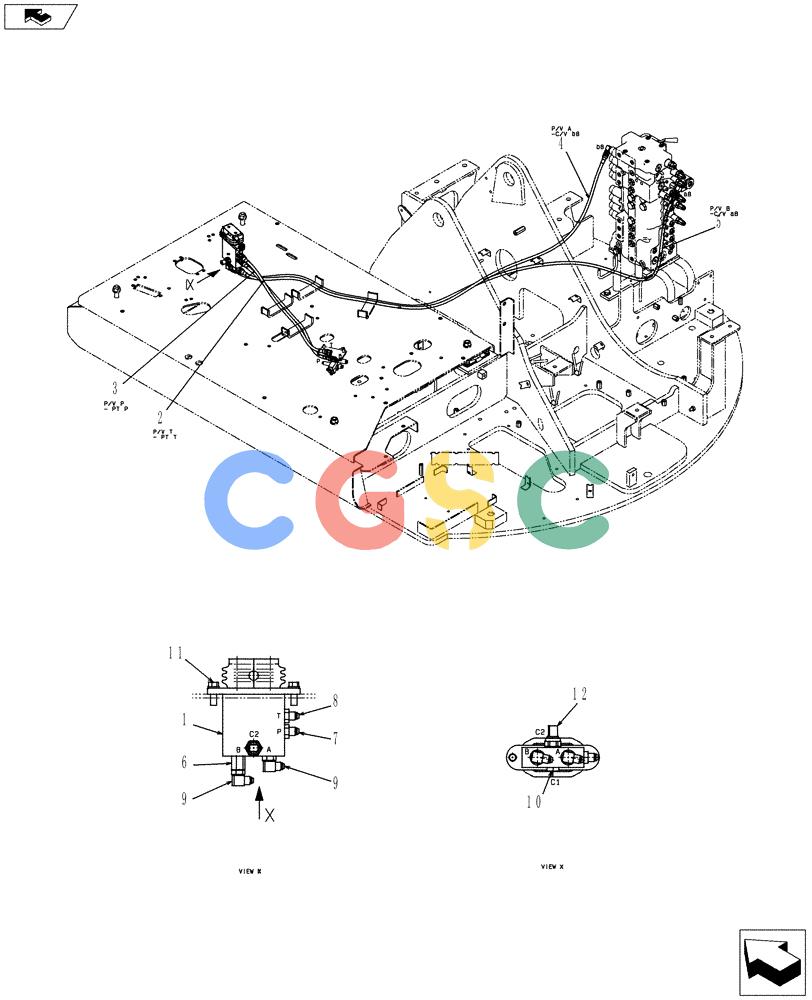

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-035[01]) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
392 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT68H00087F1 | [1] | Remote, Nibbler & Breaker | |
| 1. | YN30V00080F1 | [1] | VALVE | KOBPilot |
| 2. | 2420R349D080 | [1] | HOSE,6.35mm ID x 800mm L | KOB |
| 3. | 2420R349D082 | [1] | HYDRAULIC HOSE,6.35 mm ID x 820.00 mm | KOB Superseded by part number: 2420R349D085 |
| 4. | 2420R349D220 | [1] | HOSE,2200.00 mm | KOB Superseded by part number: HX21E04220DX |
| 5. | 2420R349D250 | [1] | HOSE,2500.00 mm | KOB |
| 6. | 2444Z2525 | [1] | HYD CONNECTOR | KOB |
| 7. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB |
| 8. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| 9. | ZH32X04000 | [2] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB90 |
| 10. | ZE72X04000 | [1] | PLUG | KOB |
| 11. | HM83C10030G1 | [2] | BOLT | KOBSems |
| 12. | YX52S00013P1 | [1] | SENSOR | SMPress Superseded by part number: LC52S00019P1 |
