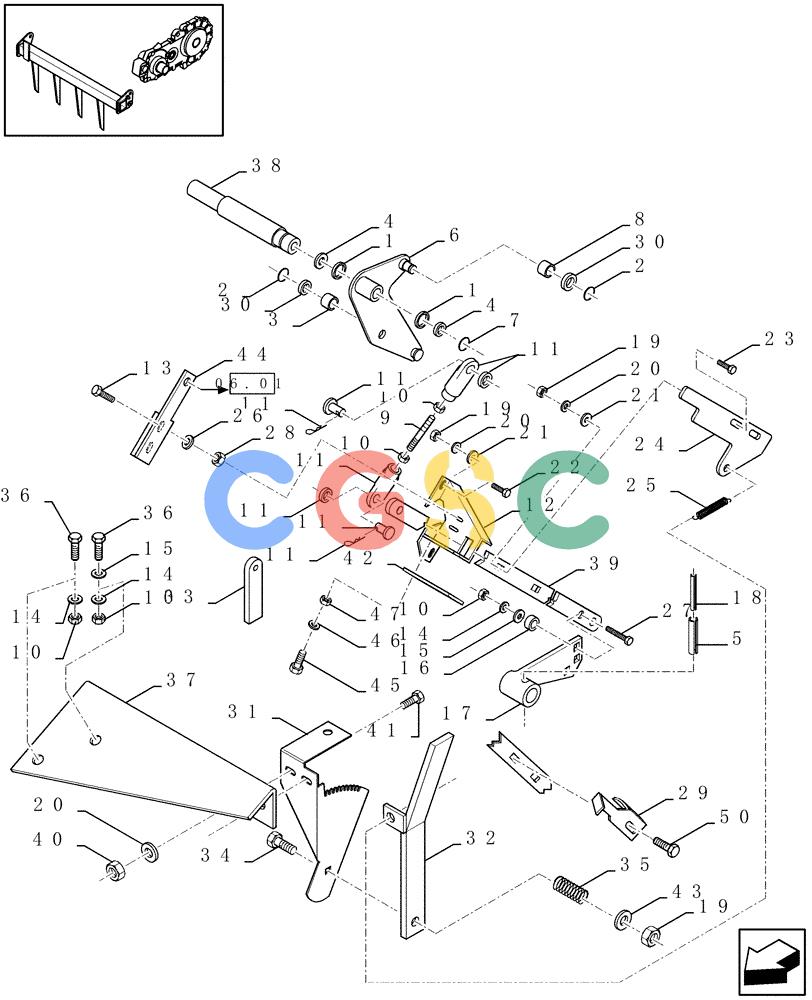

| 1. |
89838305
|
[2] |
WASHER
|
ZED
Superseded by part number: 9838305
|
| 2. |
80370024
|
[2] |
CIRCLIP
|
ZED
Superseded by part number: 370024
|
| 3. |
89838377
|
[1] |
ROLLER
|
ZED
Superseded by part number: 9838377
|
| 4. |
80140229
|
[1] |
WASHER
|
ZED
Superseded by part number: 140229
|
| 5. |
80300873
|
[1] |
ROLL PIN
|
ZED
Superseded by part number: 14607370
|
| 6. |
84074033
|
[1] |
LEVER
|
ZED
|
| 7. |
80370002
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 370002
|
| 8. |
84056050
|
[1] |
BALL BEARING,20mm ID x 52mm OD x 20.6mm W
|
ZED
|
| 9. |
84015668
|
[1] |
ROD
|
ZED
|
| 10. |
89706685
|
[1] |
NUT
|
ZED
Superseded by part number: 9706685
|
| 11. |
89838297
|
[2] |
CLEVIS
|
ZED
Superseded by part number: 9838297
|
| 12. |
84074730
|
[1] |
SUPPORT
|
ZED
|
| 12. |
84074738
|
[1] |
SUPPORT
|
ZED
|
| 13. |
811-8020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 14. |
80140046
|
[1] |
WASHER
|
ZED
12MM Superseded by part number: 140046
|
| 15. |
89839232
|
[1] |
WASHER
|
ZED
Superseded by part number: 9839232
|
| 16. |
89839233
|
[1] |
SPACER
|
ZED
Superseded by part number: 9839233
|
| 17. |
84074735
|
[1] |
ARM
|
ZED
|
| 18. |
80321950
|
[1] |
PIN
|
ZED
Superseded by part number: 86977792
|
| 19. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
M10 Superseded by part number: 100037
|
| 20. |
80140045
|
[1] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 21. |
89839231
|
[1] |
WASHER
|
ZED
Superseded by part number: 9839231
|
| 22. |
811-10030
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 23. |
80412183
|
[1] |
BOLT
|
ZED
Superseded by part number: 9833222
|
| 24. |
84607174
|
[1] |
STOP
|
ZED
|
| 25. |
84021175
|
[1] |
SPRING
|
ZED
|
| 26. |
80322358
|
[2] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 27. |
80328754
|
[1] |
SCREW
|
ZED
M12x40 Superseded by part number: 328754
|
| 29. |
84607175
|
[1] |
STOP
|
ZED
|
| 30. |
80443434
|
[1] |
WASHER
|
ZED
Superseded by part number: 443434
|
| 31. |
84058200
|
[1] |
SECTOR
|
ZED
TOOTHED SECTOR Superseded by part number: 84485847
|
| 32. |
84058199
|
[1] |
LEVER
|
ZED
|
| 33. |
80332809
|
[1] |
HANDLE GRIP
|
ZED
Superseded by part number: 332809
|
| 34. |
80412189
|
[1] |
BOLT
|
ZED
M10x80 Superseded by part number: 412189
|
| 35. |
80510375
|
[1] |
SPRING
|
ZED
Superseded by part number: 510375
|
| 36. |
89706687
|
[1] |
SCREW
|
ZED
Superseded by part number: 9706687
|
| 37. |
84100904
|
[1] |
SUPPORT
|
ZED
|
| 38. |
84074030
|
[1] |
PIN,25mm OD x 132mm L
|
ZED
|
| 39. |
84074728
|
[1] |
BRACKET
|
ZED
Superseded by part number: 85015667
|
| 40. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 42. |
84078516
|
[1] |
WEAR STRIP
|
ZED
|
| 43. |
80140042
|
[1] |
WASHER
|
ZED
10MM Superseded by part number: 140042
|
| 44. |
84078792
|
[1] |
ANGLE
|
ZED
|
| 45. |
89706703
|
[2] |
BOLT
|
ZED
M6x20 Superseded by part number: 9706703
|
| 46. |
80322357
|
[2] |
LOCK WASHER,Belleville, M6
|
ZED
6MM Superseded by part number: 322357
|
| 48. |
80374892
|
[1] |
SCREW
|
ZED
M10x40 Superseded by part number: 374892
|
| 28. |
89706690
|
[2] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 47. |
15896221
|
[2] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
