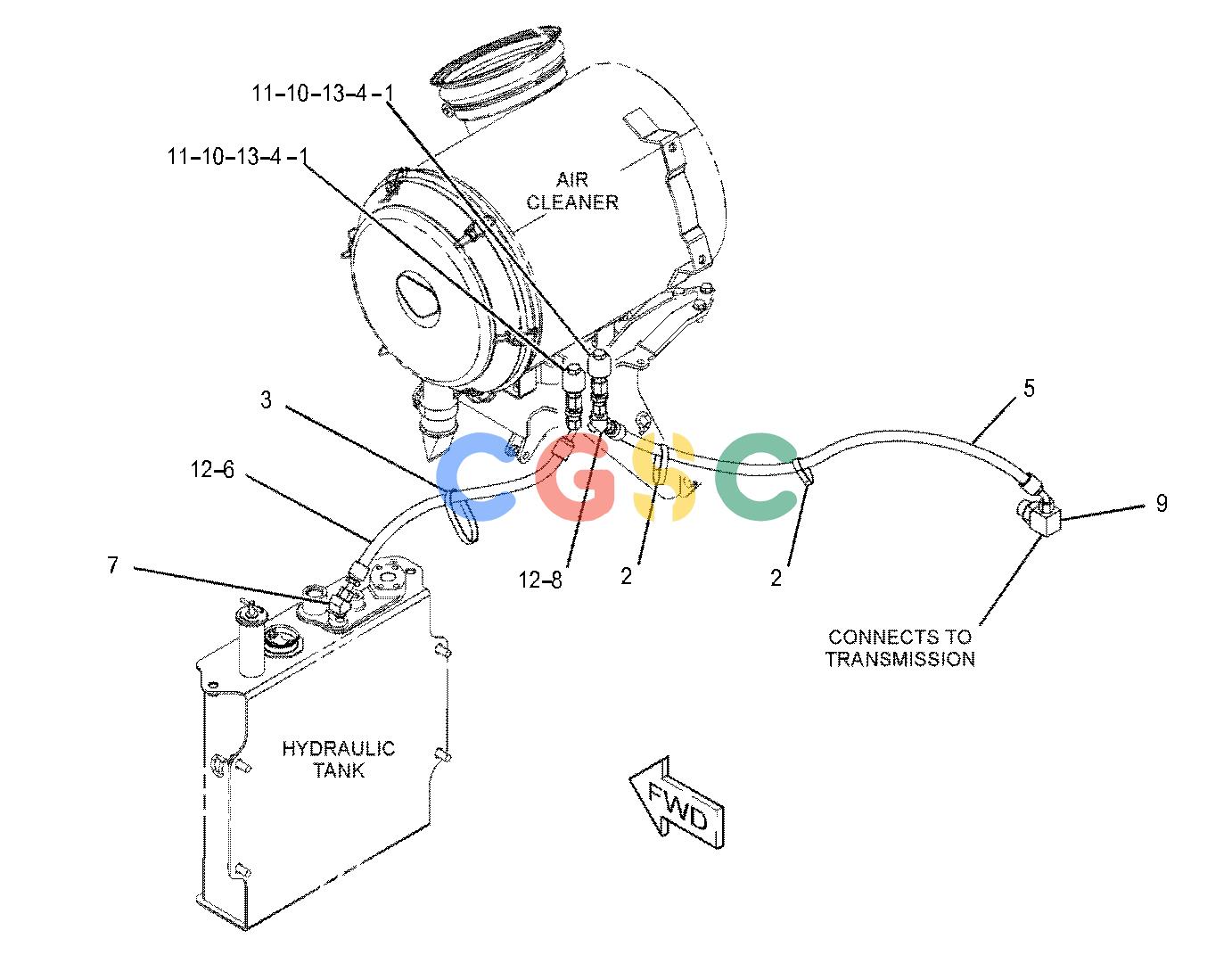

卡特零件查询（730C） 364-4047: BREATHER GP-POWER TRAIN
广数供应链运营团队, 15 02月, 2025，浏览：
865 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4H-6112 | [2] | BREATHER(POWER TRAIN) | |
| 2. | 6U-0455 | [2] | STRAP | |
| 3. | 6U-0456 | [1] | STRAP | |
| 4. | 8T-9358 | [2] | CONNECTOR | |
| 5. | 166-1350I | [1] | HOSE AS | |
| 6. | 391-3756I | [1] | HOSE AS | |
| 7. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 8. | 148-8371 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 9. | 150-3028 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9343 | [1] | ELBOW | |
| 10. | 3J-1907 | [2] | SEAL-O-RING | |
| 11. | 5P-3501 | [2] | ADAPTER | |
| 12. | 6V-8397 | [2] | SEAL-O-RING | |
| 13. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
