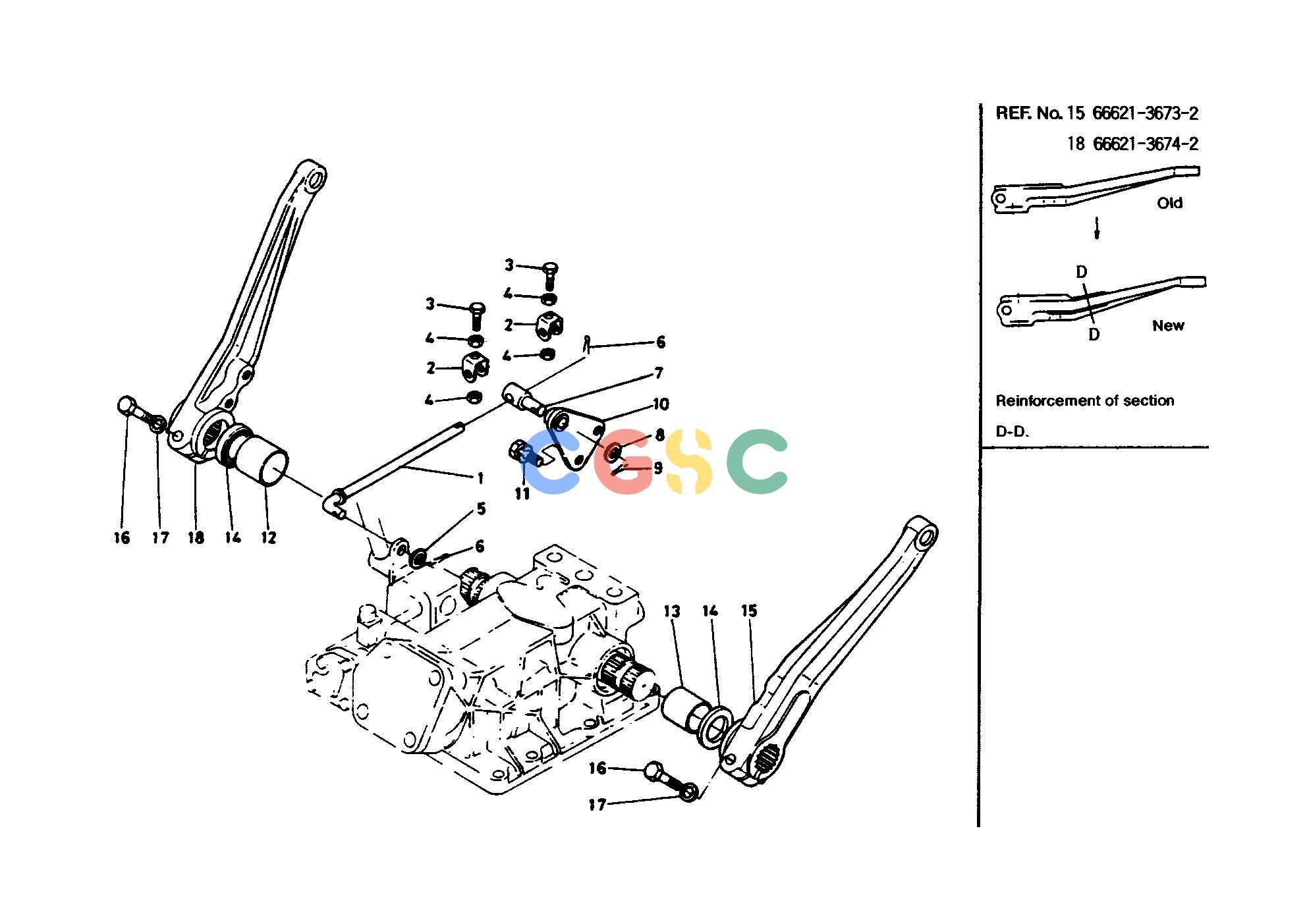

久保田零件查询T03900 OIL PRESSURE GROUP 1 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6649436510
|
[1] |
ROD CHECK
|
0.1628(lbs); 0.074
|
| 002. |
6661136320
|
[2] |
INTERLOCKER
|
0.0484(lbs); 0.022
|
| 003. |
0115350822
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 004. |
0211250080
|
[4] |
NUT
|
0.0066(lbs); 0.003
|
| 005. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 006. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 007. |
6659136540
|
[1] |
SHAFT
|
0.0748(lbs); 0.034
|
| 008. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 009. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 010. |
6659136550
|
[1] |
HOLDER
|
0.1584(lbs); 0.072
|
| 011. |
0112050822
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 012. |
6659136710
|
[1] |
BUSH
|
0.1078(lbs); 0.049
|
| 013. |
6659136720
|
[1] |
BUSH
|
0.0968(lbs); 0.044
|
| 014. |
0923028405
|
[2] |
SEAL OIL
|
0.0132(lbs); 0.006
|
| 015. |
6662136730
|
[1] |
ARM LIFT LH
|
3.0140(lbs); 1.370
|
| 015. |
6662136732
|
[1] |
ARM LIFT LH
|
0.0000(lbs); 0.000
|
| 016. |
0115351045
|
[2] |
BOLT
|
0.0682(lbs); 0.031
|
| 017. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 018. |
6662136740
|
[1] |
ARM LIFT RH
|
2.6180(lbs); 1.190
|
| 018. |
6662136742
|
[1] |
ARM LIFT RH
|
0.0000(lbs); 0.000
|
