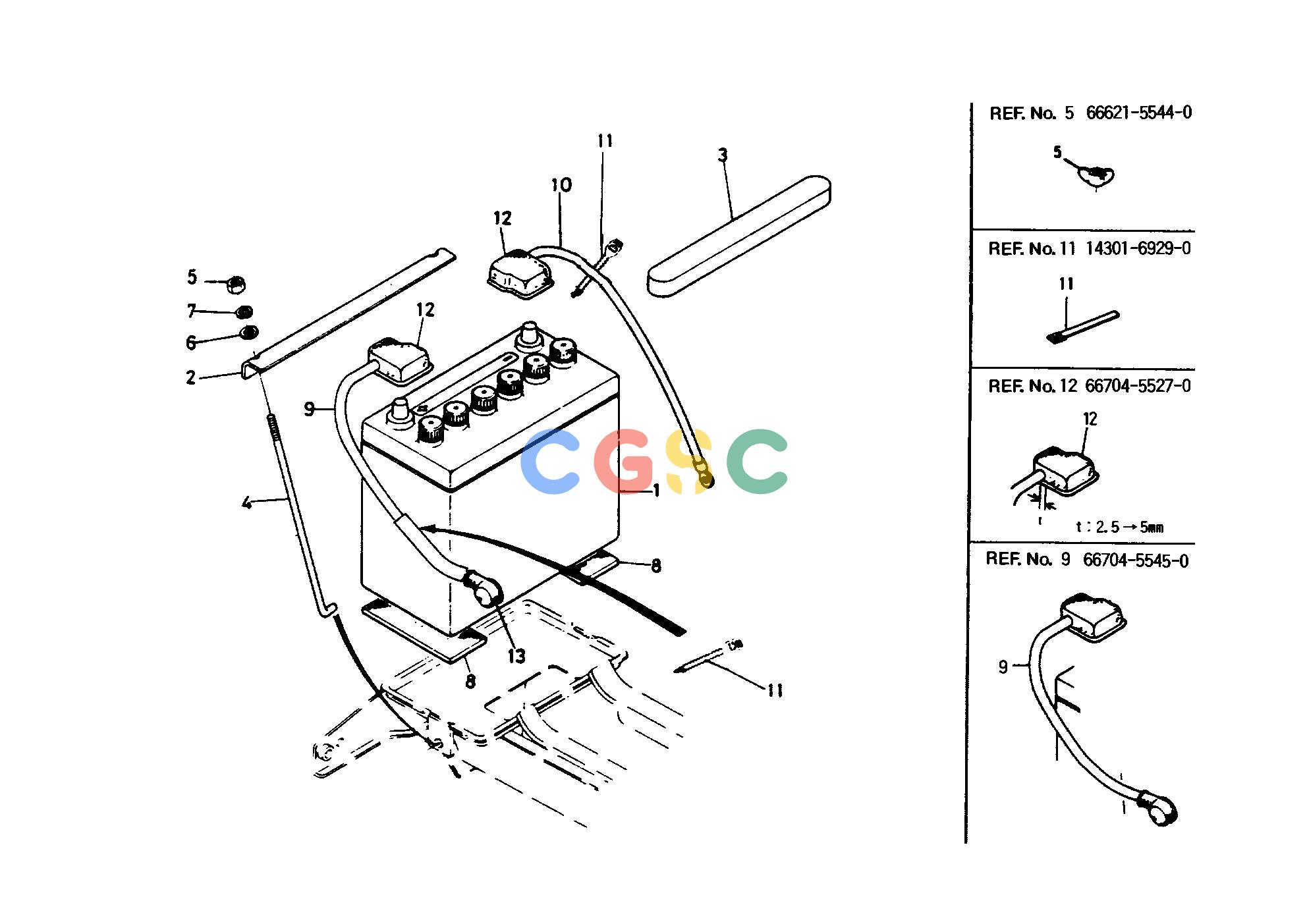

久保田零件查询T05300 BATTERY GROUP ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
839 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6670455412
|
[1] |
BATTERY
|
15.4000(lbs); 7.000
|
| 002. |
6681155420
|
[1] |
RETAINER BATTERY
|
0.1804(lbs); 0.082
|
| 003. |
6662155430
|
[1] |
COVER BATTERY
|
0.1298(lbs); 0.059
|
| 004. |
6659154490
|
[2] |
BOLT
|
0.1056(lbs); 0.048
|
| 005. |
6662155440
|
[2] |
NUT WING
|
0.0132(lbs); 0.006
|
| 005. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 006. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 007. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 008. |
6659154510
|
[2] |
CUSHION BATTERY
|
0.0440(lbs); 0.020
|
| 009. |
6670455450
|
[1] |
CORD BATTERY
|
0.0000(lbs); 0.000
|
| 009. |
6670455452
|
[1] |
CORD BATTERY
|
0.0000(lbs); 0.000
|
| 010. |
6649455130
|
[1] |
CORD BATTERY
|
0.0000(lbs); 0.000
|
| 011. |
1430169290
|
[2] |
BAND PIPE
|
0.0022(lbs); 0.001
|
| 011. |
6671155470
|
[2] |
CLAMP CORD
|
0.0022(lbs); 0.001
|
| 012. |
6657155170
|
[2] |
CAP TERMINAL
|
0.0000(lbs); 0.000
|
| 012. |
6670455270
|
[2] |
CAP TERMINAL
|
0.0330(lbs); 0.015
|
| 013. |
6659155190
|
[1] |
CAP TERMINAL
|
0.0264(lbs); 0.012
|
