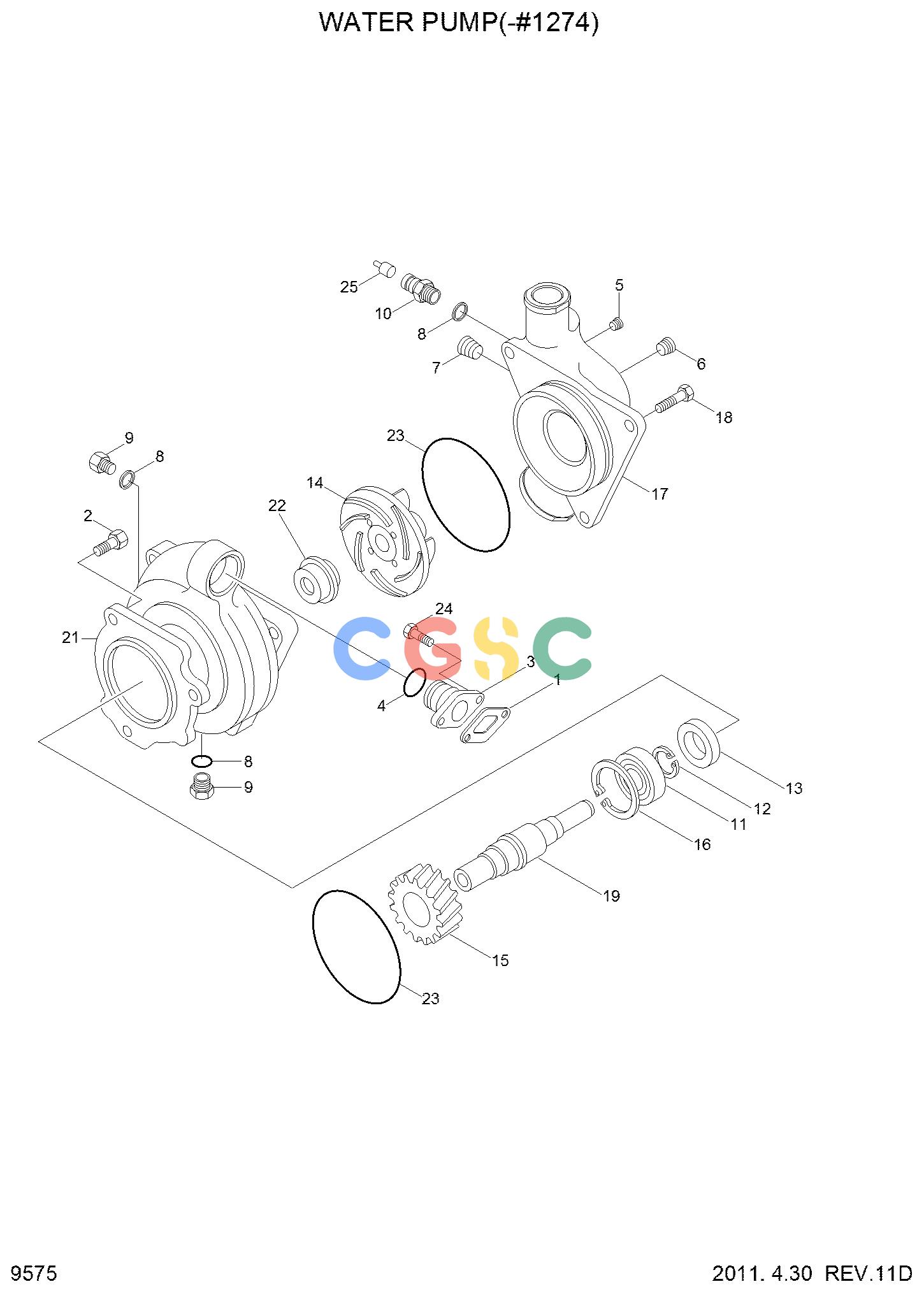

现代零件查询R500LC-7 WATER PUMP(-#0631)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3027924
|
[1] |
GASKET-CONNECTION
|
|
| 2. |
3034836
|
[3] |
SCREW-HEX HD CAP
|
|
| N . |
3328559
|
[1] |
CONNECTION-W/TRANSFER
|
|
| 3. |
3821718
|
[1] |
CONNECTION
|
|
| 5. |
3008468
|
[1] |
PLUG-PIPE
|
|
| 6. |
3008469
|
[1] |
PLUG-PIPE
|
|
| 7. |
3008470
|
[1] |
PLUG
|
|
| -13. |
3042619
|
[1] |
NIPPLE-COUPLING
|
|
| 8. |
3037537
|
[1] |
O-RING
|
|
| 10. |
3042620
|
[1] |
NIPPLE-COUPLING
|
|
| 17. |
3073695
|
[1] |
COVER-WATER PUMP
|
|
| 18. |
3335044
|
[3] |
SCREW-HEX HD CAP
|
|
| 25. |
3044896
|
[1] |
COVER-PROTECTIVE
|
|
| 4. |
3892095
|
[1] |
O-RING
|
|
| -1. |
4955706
|
[1] |
KIT-WATER PUMP
|
|
| N -11. |
4972857
|
[1] |
PUMP-WATER
|
|
| 5. |
3008468
|
[1] |
PLUG-PIPE
|
|
| 6. |
3008469
|
[1] |
PLUG-PIPE
|
|
| 7. |
3008470
|
[1] |
PLUG
|
|
| -12. |
3037536
|
[2] |
PLUG-THREADED
|
|
| 8. |
3037537
|
[1] |
O-RING
|
|
| N9. |
3040813
|
[1] |
PLUG-THREADED
|
|
| -13. |
3042619
|
[1] |
NIPPLE-COUPLING
|
|
| 8. |
3037537
|
[1] |
O-RING
|
|
| 10. |
3042620
|
[1] |
NIPPLE-COUPLING
|
|
| -14. |
4972862
|
[1] |
PUMP-WATER
|
|
| 11. |
S16002
|
[1] |
BEARING-BALL
|
|
| 12. |
160586
|
[1] |
RING-RETAINING
|
|
| 13. |
3019600
|
[1] |
SEAL-OIL
|
|
| 14. |
3035679
|
[1] |
IMPELLER-WATER PUMP
|
|
| 15. |
3038991
|
[1] |
GEAR-WATER PUMP
|
|
| 16. |
3064634
|
[1] |
RING-RETAINING
|
|
| 17. |
3073695
|
[1] |
COVER-WATER PUMP
|
|
| 18. |
3335044
|
[3] |
SCREW-HEX HD CAP
|
|
| 19. |
3400813
|
[1] |
SHAFT-WATER PUMP
|
|
| 20. |
3820791
|
[1] |
O-RING
|
|
| N21. |
4926553
|
[1] |
BODY-WATER PUMP
|
|
| 22. |
4972860
|
[1] |
SEAL-WATER PUMP
|
|
| 23. |
2863701
|
[1] |
SEAL/O-RING
|
|
| 24. |
3900631
|
[2] |
SCREW-HEX F/HD CAP
|
|
| 25. |
3044896
|
[1] |
COVER-PROTECTIVE
|
|
| -2. |
4955802
|
[1] |
KIT-W/PUMP, REPAIR
|
|
| -21. |
S16002
|
[1] |
BEARING-BALL
|
|
| -22. |
3820791
|
[1] |
O-RING
|
|
| -23. |
160586
|
[1] |
RING-RETAINING
|
|
| -24. |
4972860
|
[1] |
SEAL-WATER PUMP
|
|
| -25. |
3064634
|
[1] |
RING-RETAINING
|
|
| -26. |
3019600
|
[1] |
SEAL-OIL
|
|
| -27. |
3035679
|
[1] |
IMPELLER-WATER PUMP
|
|
| -29. |
3882774
|
[1] |
O-RING
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
