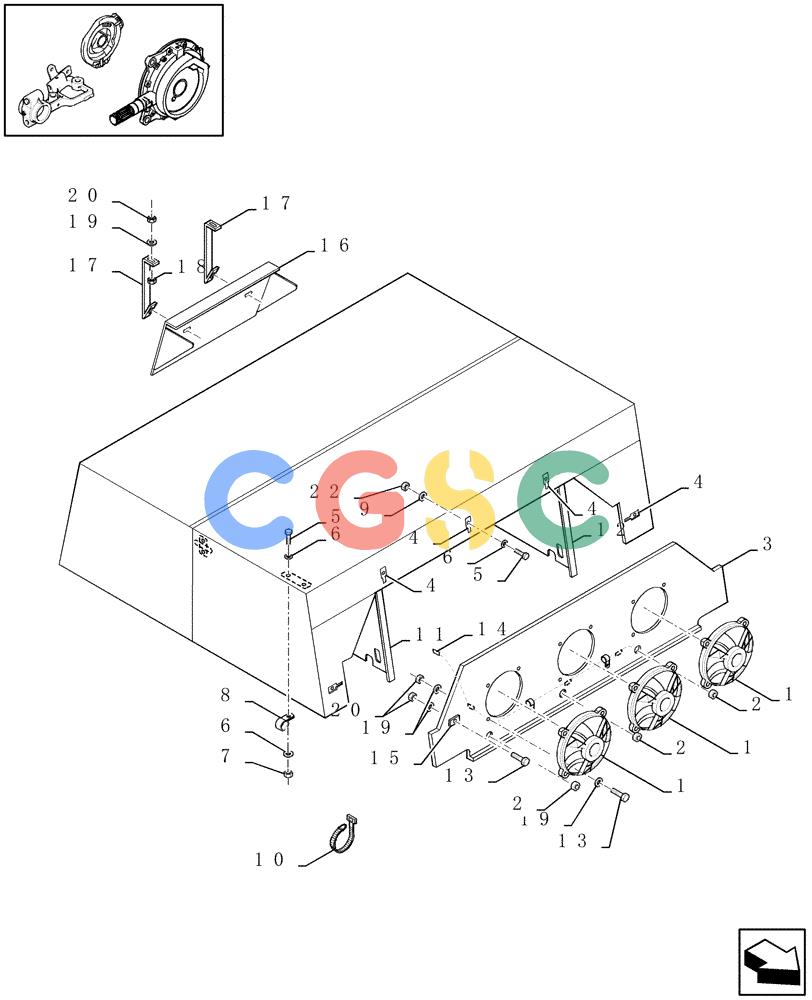

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (15.09[01]) - KNOTTER FANS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
684 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84429995
|
[1] |
FAN
|
ZED
Superseded by part number: 84074638, 84275427, 86500036, 87695582
|
| 2. |
80140182
|
[4] |
WASHER
|
ZED
Superseded by part number: 140182
|
| 3. |
84400011
|
[1] |
SUPPORT
|
ZED
|
| 3. |
84400009
|
[1] |
SUPPORT
|
ZED
|
| 3. |
84429805
|
[1] |
SUPPORT
|
ZED
|
| 4. |
80362786
|
[4] |
LOCKING TAB
|
ZED
Superseded by part number: 362786
|
| 5. |
80412064
|
[1] |
SCREW
|
ZED
Superseded by part number: 412064
|
| 6. |
80362785
|
[4] |
WASHER
|
ZED
Superseded by part number: 362785
|
| 7. |
80100012
|
[1] |
NUT
|
ZED
Superseded by part number: 57121
|
| 8. |
80076403
|
[1] |
CLAMP
|
ZED
Superseded by part number: 76403
|
| 9. |
89824326
|
[1] |
WASHER
|
ZED
5MM Superseded by part number: 9824326
|
| 10. |
80323597
|
[1] |
STRAP
|
ZED
Superseded by part number: 14560287
|
| 11. |
84053243
|
[1] |
PLATE
|
ZED
RH
|
| 11. |
84400168
|
[1] |
PLATE
|
ZED
|
| 12. |
84078904
|
[1] |
PLATE
|
ZED
LH
|
| 12. |
84400166
|
[1] |
PLATE
|
ZED
|
| 13. |
80120100
|
[1] |
BOLT,M6 x 1 x 20mm
|
ZED
Superseded by part number: 120100
|
| 14. |
84072857
|
[1] |
WIRE HARNESS
|
ZED
|
| 14. |
84072855
|
[1] |
WIRE HARNESS
|
ZED
|
| 15. |
89503929
|
[1] |
CLAMP
|
ZED
Superseded by part number: 84818442
|
| 16. |
84053328
|
[1] |
PLATE
|
ZED
|
| 16. |
84053242
|
[1] |
PLATE
|
ZED
|
| 17. |
84400036
|
[2] |
BRACKET
|
ZED
|
| 18. |
811-6016
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86512439
|
| 19. |
80322357
|
[1] |
LOCK WASHER,Belleville, M6
|
ZED
Superseded by part number: 322357
|
| 20. |
15896221
|
[1] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
