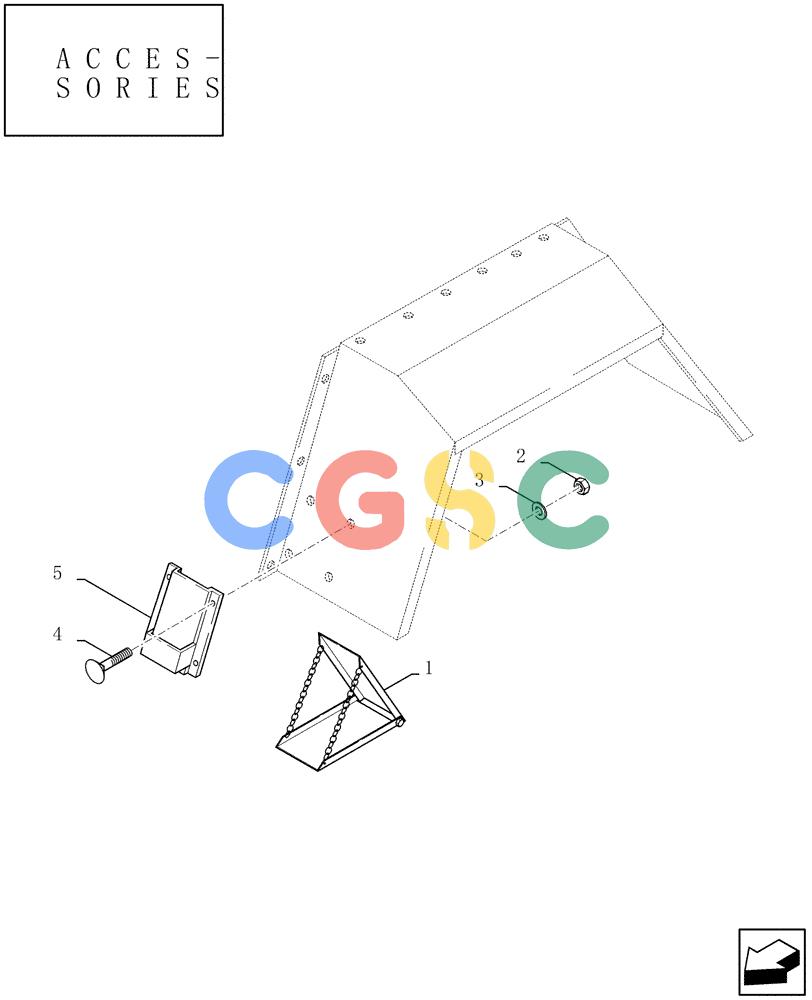

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (18.01[01]) - MUDGUARDS AND WHEEL CHOCK Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80411582
|
[2] |
WHEEL CHOCK
|
ZED
Superseded by part number: 411582
|
| 3. |
80322358
|
[8] |
LOCK WASHER
|
ZED
Superseded by part number: 322358
|
| 4. |
811-8020
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 5. |
80411583
|
[2] |
HOLDER
|
ZED
Superseded by part number: 85001998
|
| 2. |
89706690
|
[8] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
