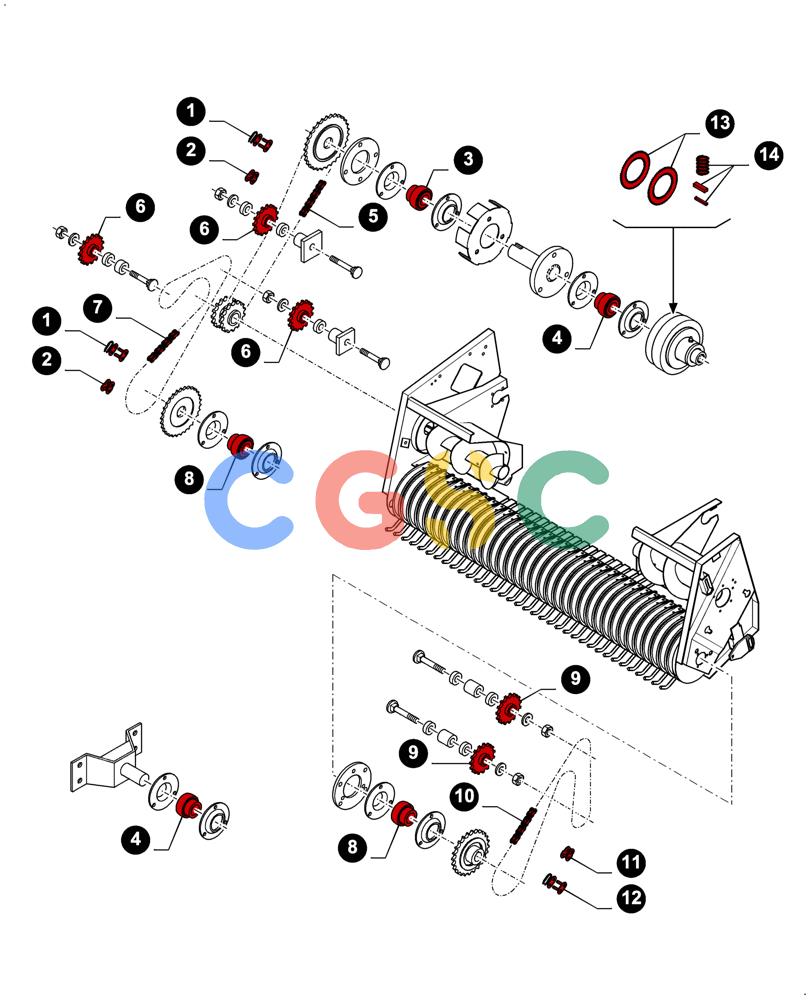

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (00.00LB009[01]) - MAINTENANCE PARTS, PICK-UP MAIN DRIVE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
599 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
165590
|
[2] |
CONNECTING LINK
|
PA
Superseded by part number: 241-1316
|
| 2. |
25817
|
[2] |
OFFSET LINK
|
NNA
Superseded by part number: 3220034R93, 3220034R93, 86595275
|
| 3. |
322360
|
[2] |
BALL BEARING,35mm ID x 72mm OD x 19mm W
|
ZED
|
| 4. |
552945
|
[2] |
BEARING ASSY,40 mm ID x 80 mm OD x 30.2 mm
|
NH
Superseded by part number: 412441
|
| 5. |
9837879
|
[1] |
CHAIN,Roller, 68 Links x 19.05mm = 1295.4mm
|
ZED
(1, 2)
|
| 6. |
9837867
|
[3] |
DRIVEN SPROCKET
|
ZED
, Serial Range: -C575 Superseded by part number: 87517107
|
| 6. |
87517107
|
[3] |
DRIVEN SPROCKET
|
ZED
, Start Serial: D576
|
| 7. |
9837966
|
[1] |
CHAIN,Roller, 105 Links x 19.05mm = 2000.25mm
|
ZED
(1, 2)
|
| 8. |
9837842
|
[2] |
BEARING,35mm ID x 72mm OD x 19mm W
|
ZED
|
| 9. |
9837969
|
[2] |
DRIVEN SPROCKET
|
ZED
, Serial Range: -C575 Superseded by part number: 87517105
|
| 9. |
87517105
|
[2] |
DRIVEN SPROCKET
|
ZED
, Start Serial: D576
|
| 10. |
9837965
|
[1] |
CHAIN,Roller, 123 Links x 15.88mm = 1952.63mm
|
ZED
(11, 12)
|
| 11. |
86595276
|
[1] |
LINK,15.88mm Pitch
|
NH
|
| 12. |
25194
|
[1] |
CONNECTING LINK
|
GI
Superseded by part number: 86537460
|
| 13. |
84026625
|
[2] |
DISC
|
ZED
Clutch
|
| 14. |
84004498
|
[1] |
REPAIR KIT
|
ZED
Pawl, Contains 3 pawls & 3 springs
|
