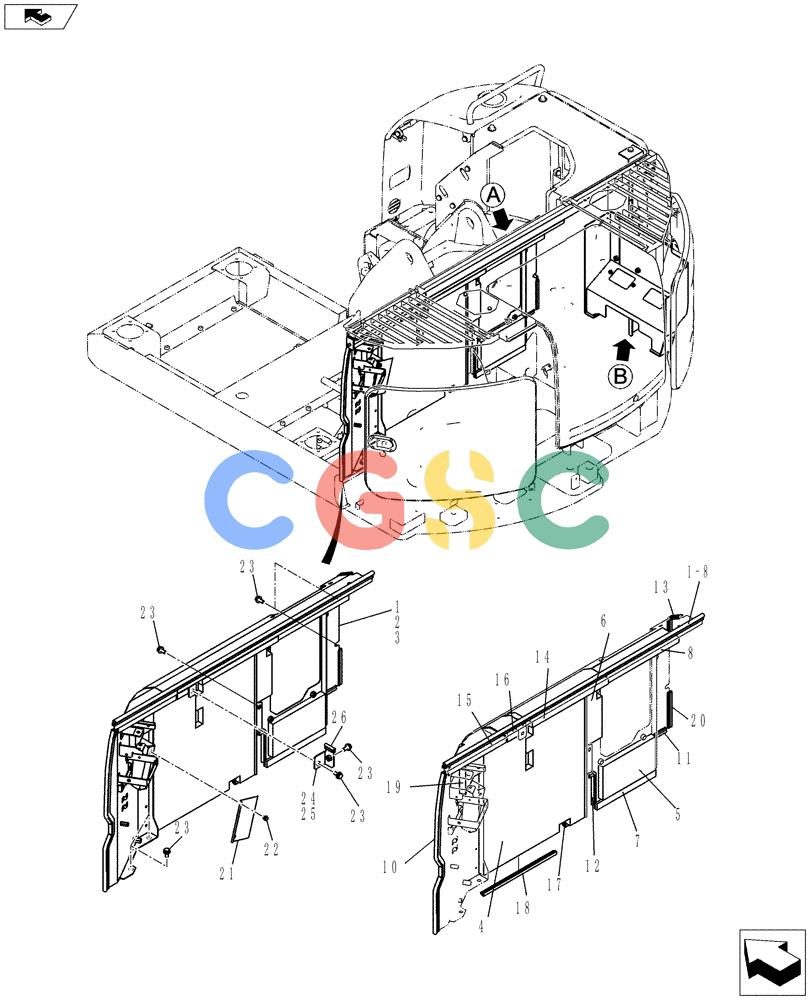

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-069[01]) - GUARD INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
716 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21C00044F2 | [1] | | |
| 1. | YT21C00045F1 | [1] | | |
| 2. | YT21C01866F1 | [1] | GUARD | KOBAssy. |
| 3. | YT21C01865P1 | [1] | GUARD | KOB, Serial Range: YT06-18001-YT06-18386 |
| 3. | YT21C02094P1 | [1] | , Start Serial: YT06-18387 | |
| 4. | YR21C01414P1 | [1] | INSULATION | KOB |
| 5. | YT21C01963P1 | [1] | INSULATION | KOB |
| 6. | YR21C01415P1 | [1] | INSULATION | KOB |
| 7. | YT21C01641P1 | [1] | RUBBER SEAL | KOB |
| 8. | YT21C01651P1 | [1] | INSULATION | KOB |
| 9. | YT21C01164DN | [1] | WEATHERSTRIP | KOB |
| 10. | YT21C01164DM | [1] | WEATHERSTRIP | KOB |
| 11. | YR21C01168D2 | [1] | WEATHERSTRIP | KOB |
| 12. | YJ21C01103D5 | [1] | WEATHERSTRIP | KOB |
| 13. | YR21C01168DE | [1] | WEATHERSTRIP | KOB |
| 14. | YR21C01423P1 | [1] | INSULATION | KOB |
| 15. | YT21C01693P1 | [1] | INSULATION | KOB |
| 16. | YR21C01424P1 | [1] | INSULATION | KOB |
| 17. | YN21C01136D6 | [1] | STRIP | KOBWeather, Serial Range: YT06-18001-YT06-18386 |
| 17. | YT21C01164DS | [1] | RUBBER WEATHERSTRIP | KOBWeather, Start Serial: YT06-18387 |
| 18. | PY21C01007DH | [1] | WEATHERSTRIP | KOB, Serial Range: YT06-18001-YT06-18386 |
| 18. | YT21C01164DR | [1] | RUBBER WEATHERSTRIP | KOBWeather, Start Serial: YT06-18387 |
| 19. | YR21C01437P1 | [1] | INSULATION | KOB |
| 20. | YR21C01168DJ | [1] | WEATHERSTRIP | KOB |
| 21. | YF21C01765P1 | [1] | SPRING | KOB |
| 22. | ZM73C08016 | [5] | BOLT,M8x16mm - Course Thread | KOBSems |
| 23. | ZM73C12025 | [14] | BOLT,M12x25mm - Course Thread | KOBSems |
| 24. | YR21C01425F1 | [1] | BRACKET | KOBAssy. |
| 25. | YR21C01426P1 | [1] | BRACKET | KOB |
| 26. | YR21C01168DC | [1] | WEATHERSTRIP | KOB |
