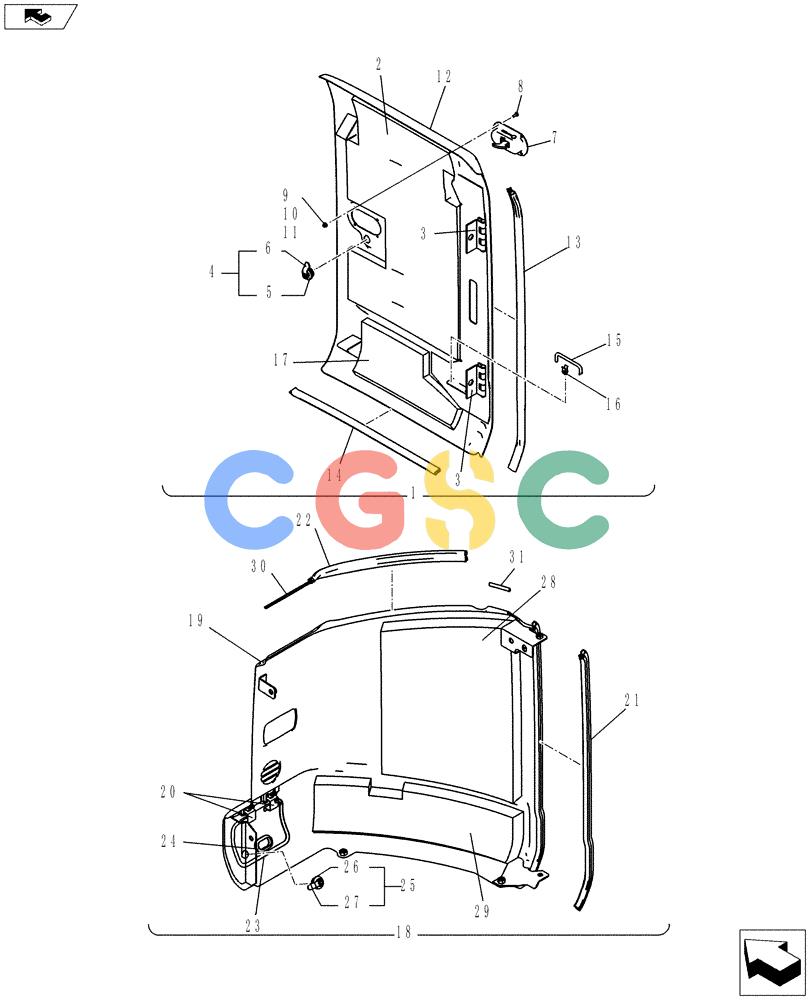

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-069[05]) - GUARD INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT21C02048F1 | [1] | TRIM PANEL | KOBAssy. |
| 2. | YT21C01666P1 | [1] | PANEL | KOB |
| 3. | YY21C02345P1 | [2] | HINGE | KOB |
| 4. | PM21C01268F1 | [1] | LOCK | KOB |
| 5. | YR22C01025P2 | [1] | LOCK | KOB |
| 6. | PM21C01269P1 | [1] | PLATE | KOB |
| 7. | YF21C01796P1 | [1] | LOCK | KOB |
| 8. | PH22C01023P1 | [4] | BOLT | KOB |
| 9. | ZW16H05000 | [4] | WASHER | KOB |
| 10. | ZW26X05000 | [4] | LOCK WASHER | KOBLock |
| 11. | ZN18C05004 | [4] | NUT | KOB |
| 12. | YT21C02049P1 | [1] | INSULATION | KOB |
| 13. | YT21C01164DK | [1] | WEATHERSTRIP | KOB |
| 14. | 2427P1836D27 | [1] | STRIP | KOBWeather |
| 15. | YF21C01490P1 | [1] | STAY | KOB |
| 16. | YR21C01123P1 | [1] | COLLAR | KOBClip |
| 17. | YT21C01879P1 | [1] | FOAM INSULATION | KOB |
| 18. | YT21C02038F1 | [1] | TRIM PANEL | KOBAssy. |
| 18-1. | YT21C01838P1 | [1] | COVER | KOB(Small Access Door) |
| 19. | YT21C02033P1 | [1] | TRIM PANEL | KOB |
| 20. | YT21C01841P2 | [2] | HINGE | KOB |
| 21. | YN21C01528DC | [1] | WEATHERSTRIP | KOB |
| 22. | PH21C01136DE | [1] | WEATHERSTRIP | KOB |
| 23. | PE21C01135DH | [1] | GASKET | KOBTrim |
| 24. | PM21C01255P2 | [1] | GROMMET | KOB |
| 28. | YT21C01929P1 | [1] | INSULATION | KOB, Serial Range: YT06-18001-YT06-18441 |
| 28. | YT21C01929P2 | [1] | , Start Serial: YT06-18442 | |
| 29. | YT21C01930P1 | [1] | INSULATION | KOB |
| 30. | PE21C01135DG | [1] | TRIM | KOB |
| 31. | PE21C01135DD | [1] | TRIM | KOB |
