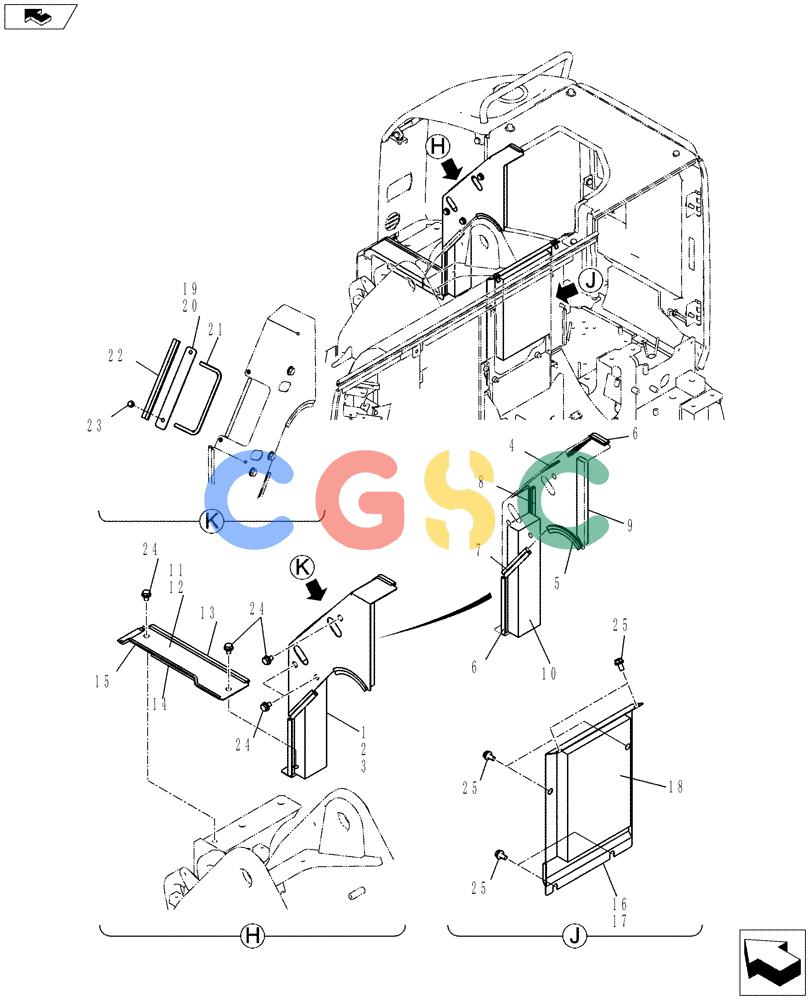

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-069[10]) - GUARD INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
691 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT21C00047F1 | [1] | | |
| 2. | YR21C01466F1 | [1] | COVER ASSY | KOB |
| 3. | YR21C01467P1 | [1] | COVER | KOB |
| 4. | PE21C01135DF | [1] | TRIM | KOB |
| 5. | YJ21C01103D4 | [1] | INSULATING PANEL | KOB |
| 6. | YR21C01168DD | [2] | WEATHERSTRIP | KOBWeather |
| 7. | YR21C01168DJ | [1] | WEATHERSTRIP | KOB |
| 8. | YJ21C01103D7 | [1] | WEATHERSTRIP | KOB |
| 9. | YR21C01404P1 | [1] | RUBBER SEAL | KOB |
| 10. | YT21C01876P1 | [1] | INSULATION | KOB |
| 11. | YT21C02039F1 | [1] | COVER ASSY | KOB |
| 12. | YT21C02019P1 | [1] | PLATE | KOB |
| 14. | YT21C02021P1 | [1] | INSULATION | KOB |
| 16. | YT21C01860F1 | [1] | COVER ASSY | KOB |
| 17. | YT21C01861P1 | [1] | COVER | KOB |
| 18. | YT21C01878P1 | [1] | INSULATION | KOB, Serial Range: YT06-18001-YT06-8441 |
| 18. | YT21C01878P2 | [1] | , Start Serial: YT06-18442 | |
| 19. | YT21C01705F1 | [1] | COVER ASSY | KOB |
| 20. | YT21C01706P1 | [1] | COVER | KOB |
| 21. | PE21C01135DG | [1] | TRIM | KOB |
| 22. | YR21C01168DB | [1] | WEATHERSTRIP | KOB |
| 23. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBSems |
| 24. | ZM73C12020 | [5] | BOLT,M12x20mm - Course Thread | KOBSems |
| 25. | ZM73C12025 | [6] | BOLT,M12x25mm - Course Thread | KOBSems |
