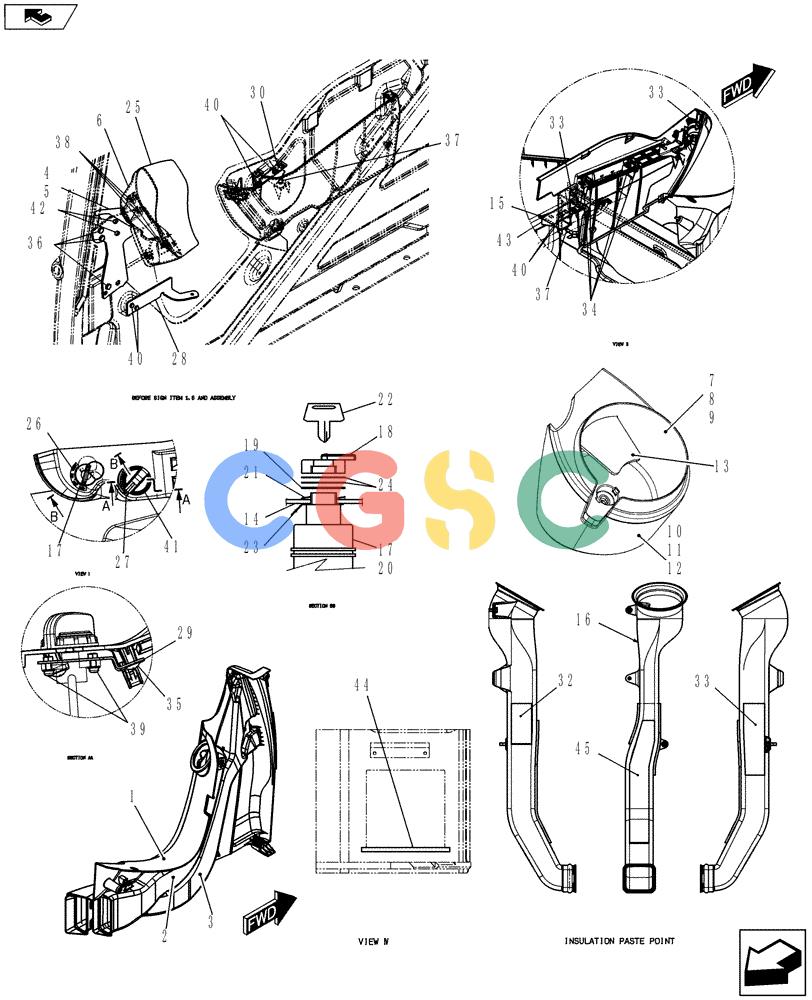

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-074[02]) - PANEL ASSEMBLY, INSTRUMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN17M01469F1 | [1] | COVER ASSY | KOB Superseded by part number: YN15V00019F2 |
| 2. | YY20M01250P1 | [1] | AIR DUCT | KOB |
| 3. | YY20M01251P1 | [1] | AIR DUCT | KOB |
| 4. | YN17M01433F1 | [1] | COVER | SMAssy. |
| 5. | YN17M01486P1 | [1] | COVER ASSY | KOB |
| 6. | YN17M01464P1 | [1] | COVER | SM, Serial Range: YT06-18001-YT06-18386 Superseded by part number: YN17M01464P2 |
| 6. | YN17M01464P2 | [1] | COVER | KOB, Start Serial: YT06-18387 |
| 7. | YN17M01488F1 | [1] | HOLDER | KOBAssy. |
| 8. | YN17M01489P1 | [1] | HOLDER | KOB |
| 9. | YN17M01508P1 | [1] | BUSHING | KOB |
| 10. | YN17M01490F1 | [1] | HOLDER | KOBAssy. |
| 11. | YN17M01491P1 | [1] | | |
| 13. | YN17M01492P1 | [1] | RUBBER SLEEVE | KOB |
| 14. | YN17M01436F1 | [1] | COVER ASSY | SMAssy. Superseded by part number: YN17M01436F2 |
| 14. | YN17M01438F1 | [1] | COVER ASSY | SMAssy. Superseded by part number: YN17M01438F2 |
| 15. | YY17M01037P1 | [1] | BRACKET | KOB |
| 16. | YY20M01252F1 | [1] | AIR DUCT | KOBAssy. |
| 17. | YN50S00026F2 | [1] | SWITCH | KOBKey |
| 18. | YN50S00002S002 | [1] | NUT | KOBAssy. |
| 19. | YN50S00002S003 | [2] | WASHER | KOB |
| 20. | YN50S00002S004 | [1] | TOGGLE SWITCH | KOB |
| 21. | YN50S00002S005 | [1] | WASHER | KOB |
| 22. | PM50S01001P1 | [1] | IGNITION KEY | KOBKEY, LOCK |
| 23. | YN01E01021P1 | [1] | TERMINAL | SM |
| 24. | YN17M01345P1 | [2] | WASHER | SM |
| 25. | YN59S00021F3 | [1] | CONTROL MONITOR | SMGauge, Cluster |
| 26. | YN17M01463P1 | [1] | DECAL | SM |
| 27. | YN17M01462P1 | [1] | DECAL | SM |
| 28. | YN17M01444P1 | [1] | BRACKET | SM Superseded by part number: YN17M01444P2 |
| 29. | YN17M01445P1 | [1] | BRACKET | SM |
| 30. | YN17M01446P1 | [1] | BRACKET | SM Superseded by part number: YN17M01446P2 |
| 31. | YY17M01058P1 | [1] | INSULATION | KOB, Start Serial: YT06-18387 |
| 32. | YY17M01059P1 | [1] | INSULATION | KOB, Start Serial: YT06-18387 |
| 33. | YN17M01162D1 | [2] | BOLT | SMSems |
| 34. | YN17M01466P1 | [4] | SCREW | SMTapping |
| 35. | YN17M01467P1 | [2] | SCREW | SMTapping |
| 36. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBSems |
| 37. | ZM66C06020 | [16] | BOLT | KOBSems |
| 38. | ZM66C06016 | [5] | BOLT | KOBSems, Serial Range: YT06-18001-YT06-18386 |
| 39. | ZM41C04012 | [2] | BOLT | KOBSems |
| 40. | ZM73C06016 | [12] | BOLT,M6x16mm - Course Thread | KOBSems, Serial Range: YT06-18001-YT06-18386 |
| 41. | LQ52S00025P1 | [1] | POTENTIOMETER | SM |
| 42. | YN17M01449P1 | [2] | SCREW | SMTapping |
| 43. | YY17M01044P1 | [1] | BRACKET | KOB |
| 44. | YT20M01180P1 | [1] | RUBBER SEAL | KOB, Start Serial: YT06-18387 |
| 45. | YY17M01060P1 | [1] | INSULATION | KOB, Start Serial: YT06-18387 |
