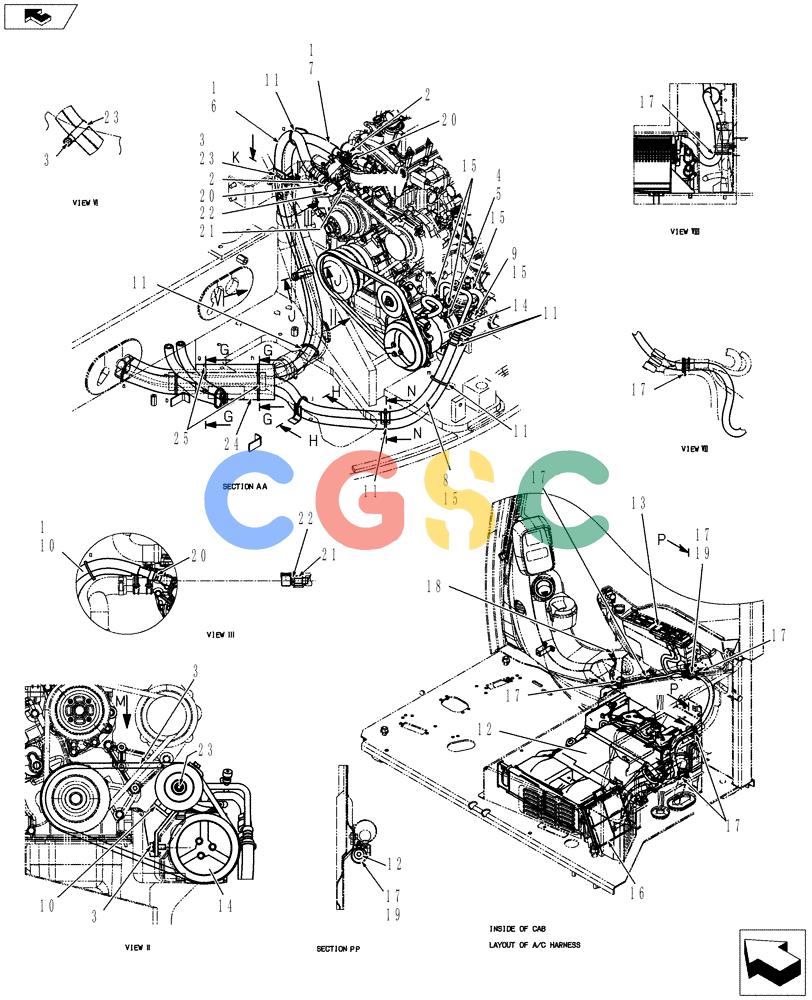

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-080[02]) - AIR CONDITIONING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
648 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | HX11W08210DX | [2] | FLEXIBLE HOSE | KOB |
| 2. | ZC16X02000 | [4] | CLIP | KOB |
| 3. | ZM73C10025 | [5] | BOLT,M10x25mm - Course Thread | KOBSems |
| 4. | ZS18C08100 | [4] | SCREW,Hex, M8 x 100mm | KOBCap |
| 5. | ZW16P08000 | [4] | WASHER | KOB |
| 6. | YJ21M01003D1 | [1] | FLEXIBLE HOSE | SM |
| 7. | YN20M01046D9 | [1] | TUBE,22.10mm ID x 27.00mm OD x 1700.00mm | KOB |
| 8. | 2418Z1333D29 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1450mm Length | KOB |
| 9. | YN20M01094D6 | [1] | TUBE,25mm ID x 30mm OD x 1500mm Length | KOB |
| 10. | YY20M01142P1 | [1] | BRACKET | KOB |
| 11. | PY01P01043D4 | [15] | CABLE TIE,4.80mm W x 251mm L | KOB |
| 12. | YT20M00021F1 | [1] | AIR CONDITIONER | KOBAssy. |
| 12. | YT20M00024F1 | [1] | AIR CONDITIONER | KOBAssy. |
| 13. | YN20M01468P4 | [1] | PANEL | SMAir Conditioner Climate Control |
| 14. | YX91V00001F1 | [1] | COMPRESSOR,W/ Pulley | KOBAir |
| 14. | YX91V00001F1R | [1] | REMAN-COMPRESSOR,W/ Pulley | KOBE70BSR ASN YT06-18001 |
| 14. | YX91V00001F1C | [1] | CORE-COMPRESSOR | KOBReturn Number |
| 15. | YT96V00004F1 | [1] | EVAPORATOR | KOBDryer Assy., Air |
| 16. | YN50V01015P3 | [1] | CAB FILTER | SM Superseded by part number: YN50V01015P3P |
| 17. | PY01P01043D3 | [6] | CABLE TIE,188mm L | KOB |
| 18. | YN52S00044P1 | [1] | SENSOR | SM |
| 19. | YN13E01375P1 | [3] | CLIP,M8 x 8.20mm Shank | KOB |
| 20. | 2444Z1630 | [2] | FITTING | KOB |
| 21. | YT20M01157P1 | [1] | HYD CONNECTOR | KOB |
| 22. | YT20M01179P1 | [1] | HYD CONNECTOR | KOB |
| 23. | 2432R226D13 | [2] | CLIP | KOB |
| 24. | YT20M01161P1 | [1] | INSULATION | KOB |
| 25. | PY01P01043D6 | [2] | CABLE TIE,4.80mm W x 383mm L | KOB |
