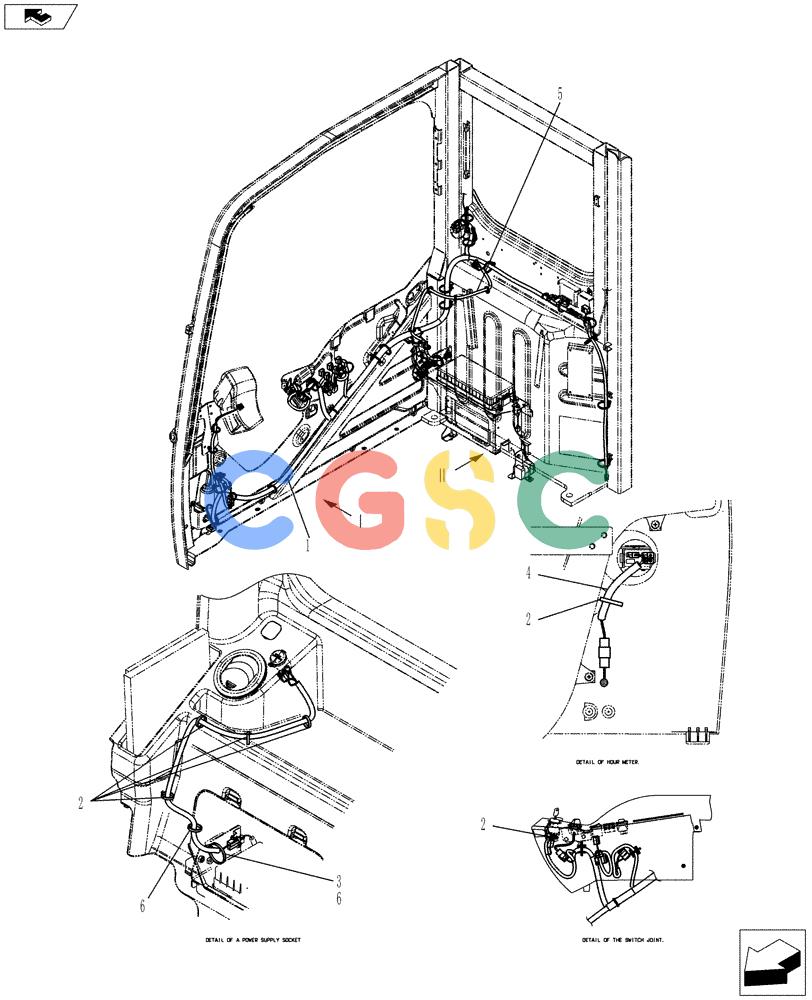

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-087[01]) - HARNESS ASSEMBLY, CAB New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
694 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF14E00012F1 | [1] | Cab | |
| 1. | LF14E01031P1 | [1] | WIRE HARNESS | KOB, Serial Range: YT06-18001-YT06-18351 Superseded by part number: LF14E01031P3 |
| 1. | LF14E01031P2 | [1] | WIRE HARNESS | KOB, Serial Range: YT06-18352-YT06-18441 Superseded by part number: LF14E01031P3 |
| 1. | LF14E01031P3 | [1] | WIRE HARNESS | KOB, Start Serial: YT06-18442 |
| 2. | PY01P01043D3 | [29] | CABLE TIE,188mm L | KOB |
| 3. | YN13E01375P1 | [19] | CLIP,M8 x 8.20mm Shank | KOB, Serial Range: YT06-18001-YT06-18316 |
| 4. | YN11E01205P1 | [1] | WIRE HARNESS | KOB |
| 5. | LF14E01029P1 | [1] | WIRE HARNESS | KOB, Serial Range: YT06-18001-YT06-18441 |
| 5. | LF14E01033P1 | [1] | WIRE HARNESS | KOB, Start Serial: YT06-18442 |
| 6. | PY01P01043D5 | [3] | CABLE TIE,301mm L | KOB, Serial Range: YT06-18001-YT06-18316 |
