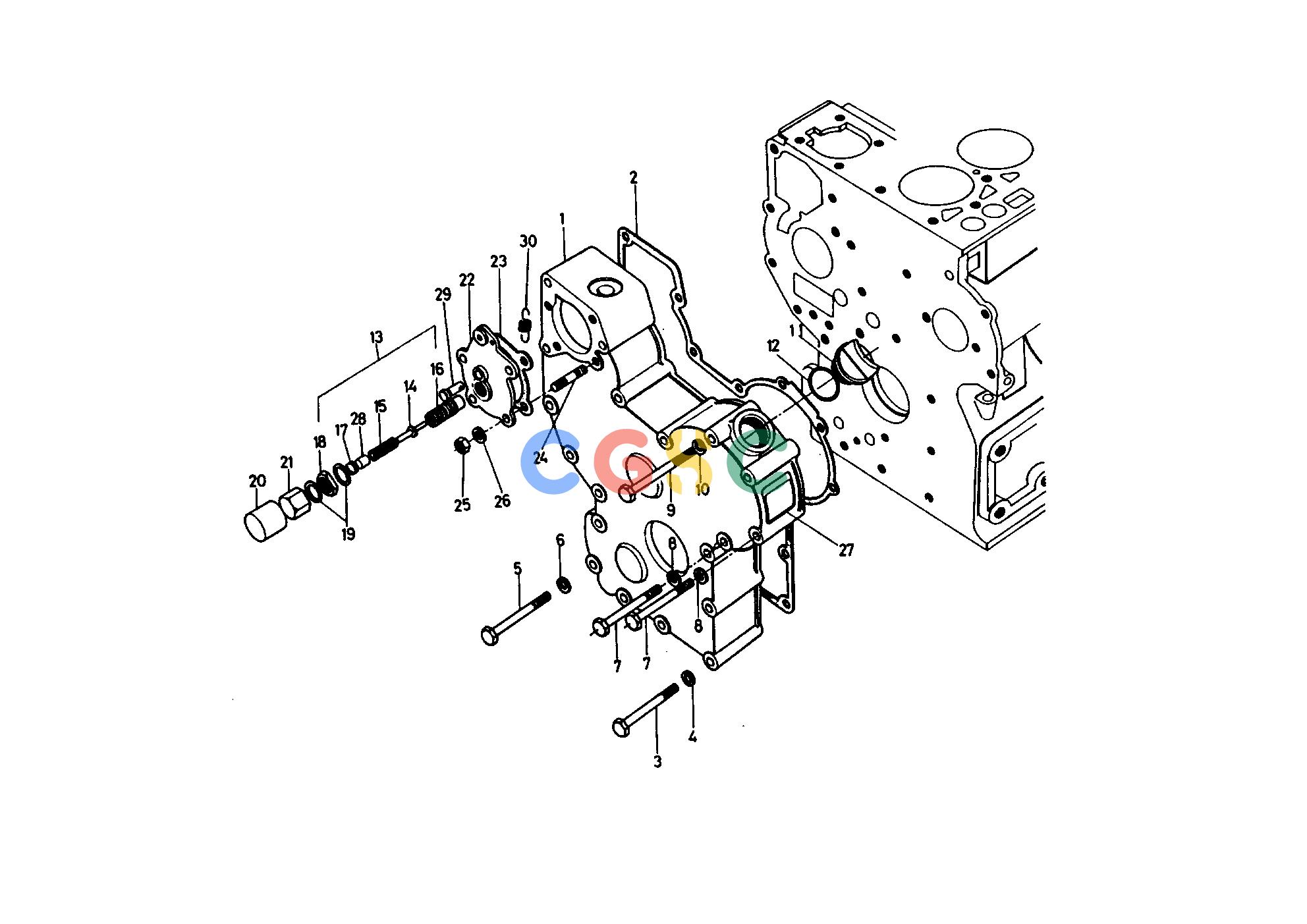

久保田零件查询020000 GEAR CASE GROUP ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
830 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1523104114
|
[1] |
CASE GEAR
|
0.0000(lbs); 0.000
|
| 002. |
1523104130
|
[1] |
PACKING GEAR CASE
|
0.0000(lbs); 0.000
|
| 003. |
0105350665
|
[15] |
BOLT
|
0.0330(lbs); 0.015
|
| 004. |
0451250060
|
[15] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 005. |
0105350675
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 006. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 007. |
0105350670
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 008. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 009. |
0105350680
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 010. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 011. |
1522133140
|
[1] |
PLUG OIL FILLER
|
0.0836(lbs); 0.038
|
| 012. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 013. |
1523154103
|
[1] |
APPARATUS FUEL LIMIT
|
0.0000(lbs); 0.000
|
| 014. |
1523154170
|
[1] |
PIN
|
0.0000(lbs); 0.000
|
| 015. |
1523154230
|
[1] |
SPIRNG
|
0.0044(lbs); 0.002
|
| 016. |
1522154130
|
[1] |
BODY
|
0.0000(lbs); 0.000
|
| 017. |
1430154430
|
[1] |
SCREW
|
0.0022(lbs); 0.001
|
| 018. |
1523154250
|
[1] |
NUT LOCK
|
0.0000(lbs); 0.000
|
| 019. |
1430154150
|
[2] |
PACKING
|
0.0022(lbs); 0.001
|
| 020. |
1430154420
|
[1] |
CAP
|
0.0110(lbs); 0.005
|
| 021. |
1430154222
|
[1] |
NUT CAP
|
0.0000(lbs); 0.000
|
| 022. |
1523154142
|
[1] |
BRACKET
|
0.1276(lbs); 0.058
|
| 023. |
1523154160
|
[1] |
PACKING
|
0.0000(lbs); 0.000
|
| 024. |
0120250616
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 025. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 026. |
0451250060
|
[4] |
WASHER SPIRNG
|
0.0022(lbs); 0.001
|
| 027. |
1523288222
|
[1] |
LABEL
|
0.0000(lbs); 0.000
|
| 028. |
1522154190
|
[1] |
SPACER
|
0.0000(lbs); 0.000
|
| 029. |
1522156280
|
[1] |
PIN START SPRING
|
0.0132(lbs); 0.006
|
| 030. |
1523156482
|
[1] |
SPRING START
|
0.0000(lbs); 0.000
|
