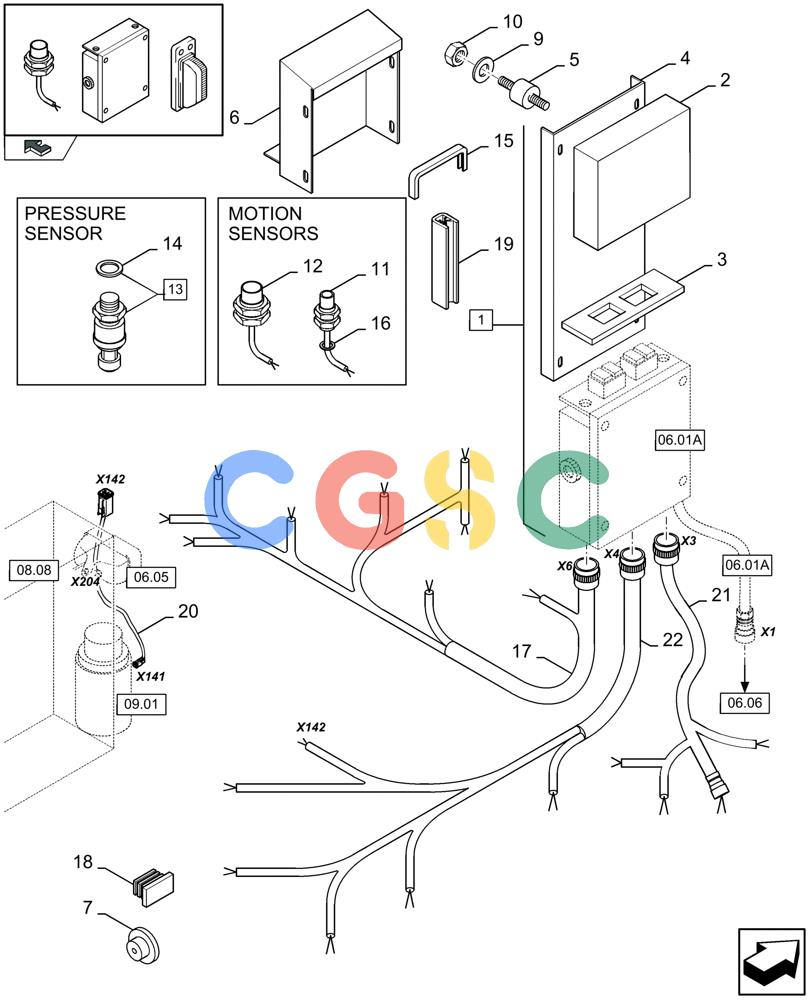

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (06.01[01]) - ELECTRIC WIRING - C479 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84448291
|
[1] |
ECU
|
ZED
(2 to 5, fig. 06.01A)
|
| 2. |
84448292
|
[1] |
ECU
|
ZED
|
| 3. |
84429195
|
[1] |
SEAL
|
ZED
|
| 4. |
84072075
|
[1] |
SUPPORT
|
ZED
Superseded by part number: 84433364
|
| 5. |
80393802
|
[4] |
SHOCK ABSORBER
|
ZED
Superseded by part number: 393802
|
| 6. |
84400159
|
[1] |
PROTECTING COVER
|
ZED
|
| 7. |
84441183
|
[1] |
DUST CAP
|
ZED
|
| 9. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8 MM Superseded by part number: 322358
|
| 10. |
89706690
|
[1] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 11. |
84078760
|
[1] |
SENSOR
|
ZED
M12
|
| 12. |
84058863
|
[1] |
SENSOR
|
ZED
M18
|
| 13. |
86523197
|
[1] |
SENSOR
|
ZED
(14)
|
| 14. |
84320139
|
[1] |
O-RING,2.2mm Thk x 11.3mm ID
|
ZED
|
| 15. |
80401310
|
[1] |
PROFILE
|
ZED
L= 0.320 M Superseded by part number: 401310
|
| 16. |
80355607
|
[1] |
SEALING RING
|
ZED
SEALRING Superseded by part number: 87801445
|
| 17. |
84448281
|
[1] |
WIRE HARNESS
|
ZED
|
| 18. |
84819755
|
[1] |
PLUG
|
ZED
|
| 19. |
9850033
|
[1] |
SEAL
|
ZED
L= 0.22 M Superseded by part number: 84053834
|
| 20. |
84449604
|
[1] |
WIRE HARNESS
|
ZED
|
| 21. |
84448287
|
[1] |
WIRE HARNESS
|
ZED
|
| 21. |
84448288
|
[1] |
WIRE HARNESS
|
ZED
|
| 22. |
84448289
|
[1] |
WIRE HARNESS
|
ZED
|
