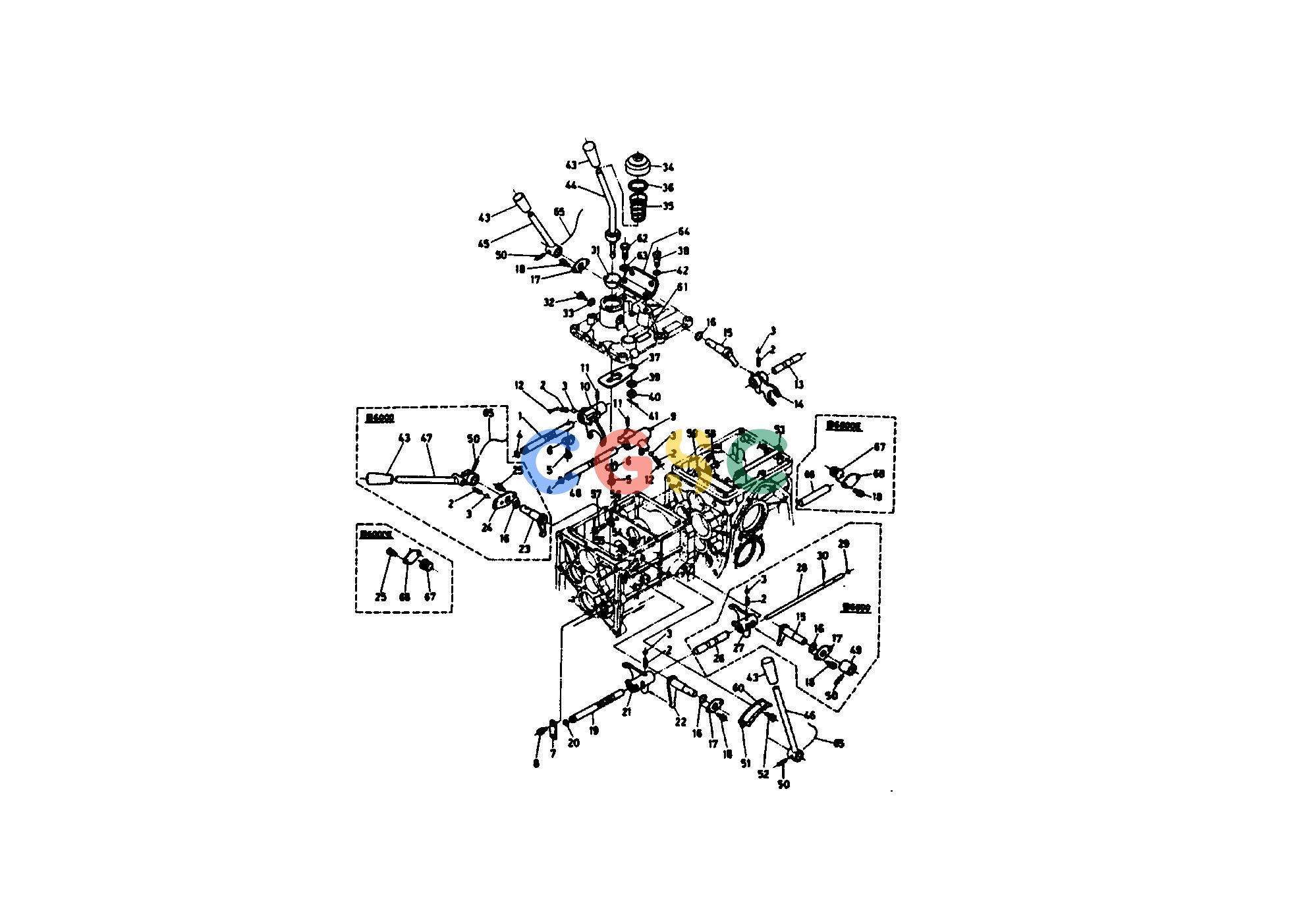

久保田零件查询130000 SPEED CHANGE GROUP SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6659118112
|
[1] |
SHAFT FORK
|
0.0000(lbs); 0.000
|
| 002. |
6206118260
|
[6] |
SPRING
|
0.0044(lbs); 0.002
|
| 003. |
0771501605
|
[6] |
BALL
|
0.0066(lbs); 0.003
|
| 004. |
0481106100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 005. |
0115000816
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 006. |
0411100080
|
[2] |
WASHER TONGUED
|
0.0000(lbs); 0.000
|
| 007. |
6659118120
|
[1] |
STOPPER
|
0.0396(lbs); 0.018
|
| 008. |
0102000616
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 009. |
6659118134
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 010. |
6659118145
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 011. |
0541200520
|
[2] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 012. |
0551100322
|
[2] |
PIN SPLIT
|
0.0000(lbs); 0.000
|
| 013. |
6659118154
|
[1] |
SHAFT FORK
|
0.0000(lbs); 0.000
|
| 014. |
6659118163
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 015. |
6659118172
|
[2] |
ARM AUX S-CHANG
|
0.0000(lbs); 0.000
|
| 016. |
0481100160
|
[4] |
O RING
|
0.0022(lbs); 0.001
|
| 017. |
6659118180
|
[3] |
HOLDER FORK ROD 1
|
0.0264(lbs); 0.012
|
| 018. |
0102000616
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 019. |
6661118610
|
[1] |
SHAFT FORK
|
0.3520(lbs); 0.160
|
| 020. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 021. |
6659118214
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 022. |
6659118222
|
[1] |
ARM ROT.S-CHANGE
|
0.0000(lbs); 0.000
|
| 023. |
6659118233
|
[1] |
ARM FRONT DRIVE
|
0.0000(lbs); 0.000
|
| 024. |
6659118240
|
[1] |
HOLDER FORK ROD 2
|
0.0440(lbs); 0.020
|
| 025. |
0102000616
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 026. |
6659118252
|
[1] |
SHAFT FORK
|
0.0000(lbs); 0.000
|
| 027. |
6659118263
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 028. |
6659118330
|
[1] |
ROD CHECK
|
0.1980(lbs); 0.090
|
| 029. |
0481100050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0551100218
|
[1] |
PIN SPLIT
|
0.0000(lbs); 0.000
|
| 031. |
6659118410
|
[1] |
BUSH
|
0.0088(lbs); 0.004
|
| 032. |
6651518240
|
[2] |
PIN ROD GUIDE
|
0.0220(lbs); 0.010
|
| 033. |
0471400080
|
[2] |
PACKING
|
0.0022(lbs); 0.001
|
| 034. |
6659118420
|
[1] |
COVER
|
0.0308(lbs); 0.014
|
| 035. |
6659118430
|
[1] |
SPRING
|
0.0528(lbs); 0.024
|
| 036. |
0461110380
|
[1] |
CIR-CLIP INTERNAL
|
0.0000(lbs); 0.000
|
| 037. |
6659118442
|
[1] |
PLATE CHECK
|
0.0000(lbs); 0.000
|
| 038. |
6659118450
|
[1] |
BOLT CHECK PLATE
|
0.0528(lbs); 0.024
|
| 039. |
0401400100
|
[1] |
WASHER PLAIN
|
0.0000(lbs); 0.000
|
| 040. |
0237200100
|
[1] |
NUT SLOTTED
|
0.0000(lbs); 0.000
|
| 041. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 042. |
0481110100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 043. |
6659142111
|
[4] |
GRIP LEVER
|
0.0000(lbs); 0.000
|
| 044. |
6662142120
|
[1] |
LEVER MAIN S-CHANGE
|
0.6380(lbs); 0.290
|
| 045. |
6659142132
|
[1] |
LEVER AUX S-CHANGE
|
0.0000(lbs); 0.000
|
| 046. |
6661142712
|
[1] |
LEVER ROT.S-CHANGE
|
0.0000(lbs); 0.000
|
| 047. |
6659142155
|
[1] |
LEVER FRONT DRIVE
|
0.0000(lbs); 0.000
|
| 048. |
6661118110
|
[1] |
SHAFT FORK
|
0.3300(lbs); 0.150
|
| 049. |
6659142160
|
[1] |
COLLAR
|
0.0880(lbs); 0.040
|
| 050. |
0541210622
|
[4] |
PIN SPRING
|
0.0000(lbs); 0.000
|
| 051. |
6659142174
|
[1] |
GUIDE CHANGE LEVER
|
0.0000(lbs); 0.000
|
| 052. |
0112000816
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 053. |
0117001004
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 054. |
0411100100
|
[1] |
WASHER
|
0.0000(lbs); 0.000
|
| 055. |
0211700100
|
[1] |
NUT
|
0.0000(lbs); 0.000
|
| 056. |
0411100800
|
[1] |
WASHER
|
0.0000(lbs); 0.000
|
| 057. |
0115300825
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 058. |
0115300830
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 059. |
6659111440
|
[1] |
PLATE
|
0.0308(lbs); 0.014
|
| 060. |
6660148150
|
[1] |
LABEL 5
|
0.0022(lbs); 0.001
|
| 061. |
6660148222
|
[1] |
LABEL 11
|
0.0000(lbs); 0.000
|
| 062. |
0115051025
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 063. |
0451200100
|
[2] |
WASHER SPRING
|
0.0000(lbs); 0.000
|
| 064. |
6659111433
|
[1] |
STAY 3
|
0.2354(lbs); 0.107
|
| 065. |
9999999999
|
[3] |
WIRE
|
0.0000(lbs); 0.000
|
