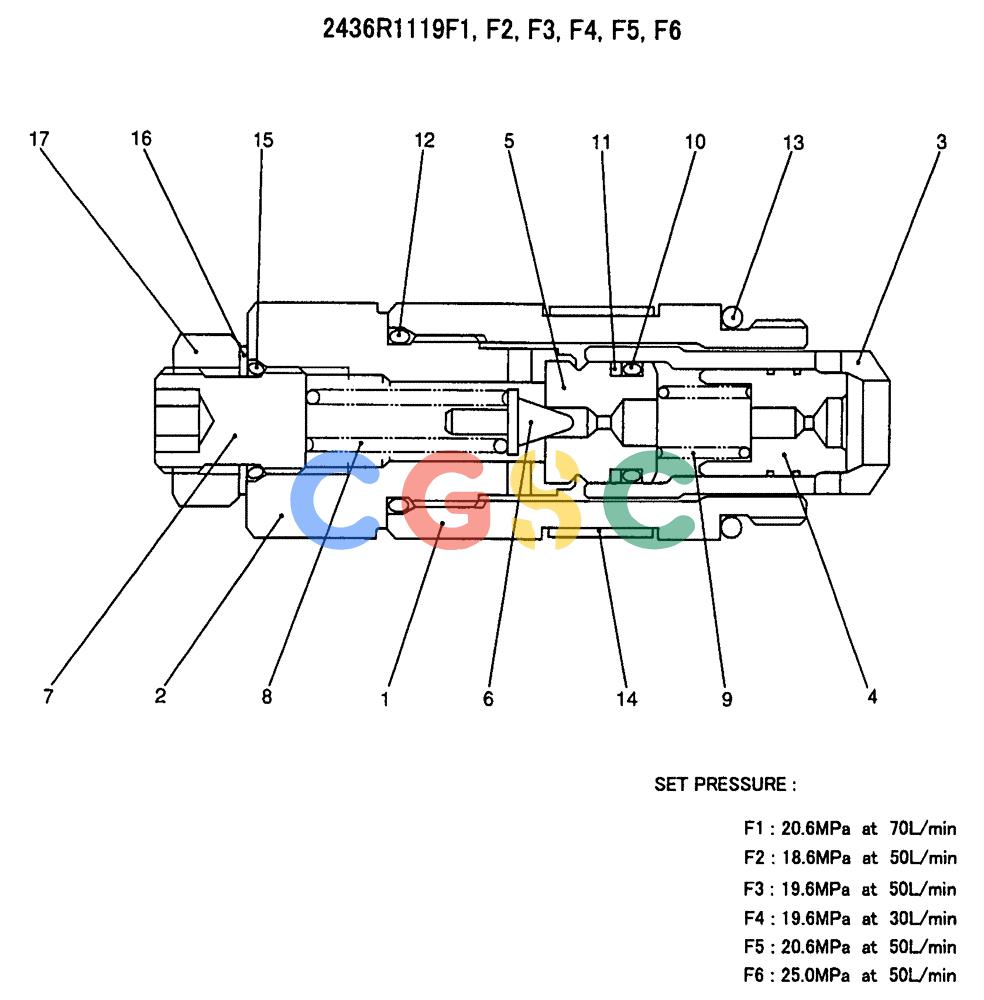

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-012) - VALVE ASSY, RELIEF New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R1119F1 | [1] | VALVE | KOBASSY, RELIEF Superseded by part number: 2436R1119 |
| . . | 2436R1119F2 | [1] | VALVE | KOBASSY, RELIEF |
| . . | 2436R1119F3 | [1] | VALVE | KOBASSY, RELIEF |
| . . | 2436R1119F4 | [1] | VALVE | KOBASSY, RELIEF |
| . . | 2436R1119F5 | [1] | VALVE | KOBASSY, RELIEF |
| . . | 2436R1119F6 | [1] | VALVE | KOBASSY, RELIEF |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONCAP |
| 10. | 2436R1119S10 | [1] | O-RING | KOB |
| 11. | 2436R1119S11 | [1] | BACK-UP RING | KOB |
| 12. | 2436U388S5 | [1] | O-RING | KOB |
| 13. | 2436U388S25 | [1] | O-RING | KOB |
| 15. | ZD12P01000 | [1] | O-RING | KOB |
| . . | 2436R1119R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 13 (1), 15 (1) |
| . . | 2436R1119R200 | [1] | SEAL KIT | KOBREPAIR, CONSISTS OF REF. 10 (1), 11 (1) |
