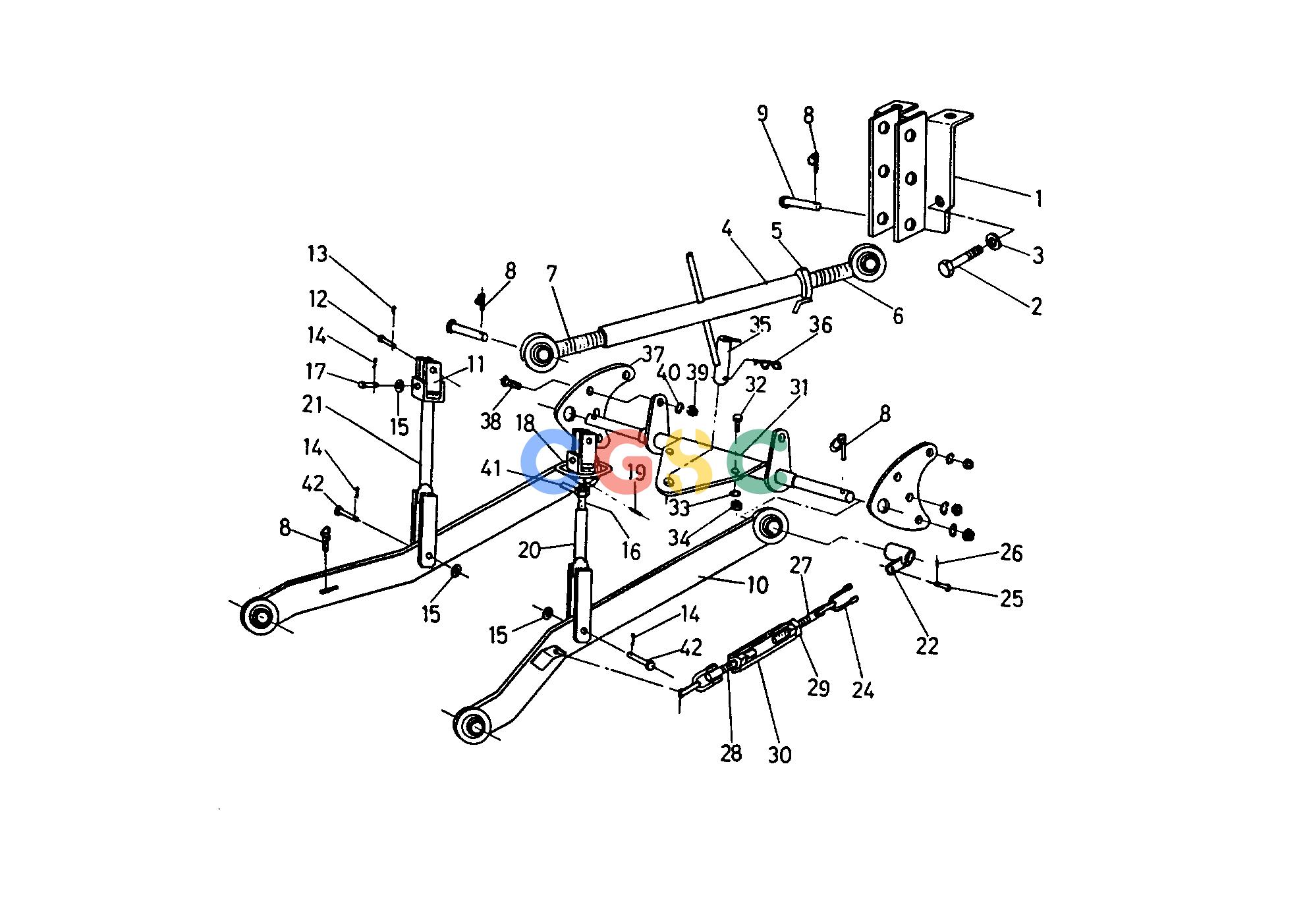

久保田零件查询310000 3 POINT LINKAGE HITCH GROUP [P] HITCH/DRAWBAREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
237 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
9631605114
|
[1] |
BRACKET UPPER LINK
|
0.0000(lbs); 0.000
|
| 002. |
0115651230
|
[2] |
BOLT
|
0.0814(lbs); 0.037
|
| 003. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 004. |
9926122110
|
[1] |
LINK UPPER
|
1.2320(lbs); 0.560
|
| 005. |
9926122180
|
[1] |
NUT
|
0.1100(lbs); 0.050
|
| 006. |
9926122210
|
[1] |
JOINT RH
|
1.5400(lbs); 0.700
|
| 007. |
9926122220
|
[1] |
JOINT LH
|
1.5400(lbs); 0.700
|
| 008. |
9922122270
|
[6] |
GUIDE
|
0.0000(lbs); 0.000
|
| 009. |
9921122390
|
[2] |
PIN UPPER LINK
|
0.0000(lbs); 0.000
|
| 010. |
9631605510
|
[2] |
LINK LOWER
|
11.9240(lbs); 5.420
|
| 011. |
9631605130
|
[2] |
SUPPORT LIFT ROD
|
0.5500(lbs); 0.250
|
| 012. |
0511251235
|
[2] |
PIN
|
0.0748(lbs); 0.034
|
| 013. |
0551551200
|
[2] |
PIN SNAP
|
0.0066(lbs); 0.003
|
| 014. |
0551110325
|
[4] |
PIN SPLIT
|
0.0000(lbs); 0.000
|
| 015. |
0401350120
|
[4] |
WASHER
|
0.0154(lbs); 0.007
|
| 016. |
9631605140
|
[1] |
ROD LIFT RH
|
0.7128(lbs); 0.324
|
| 017. |
0511251255
|
[2] |
PIN
|
0.1144(lbs); 0.052
|
| 018. |
9631605150
|
[1] |
HANDLE
|
0.5676(lbs); 0.258
|
| 019. |
0541210628
|
[1] |
PIN SPRING
|
0.0000(lbs); 0.000
|
| 020. |
9631605520
|
[1] |
ROD LIFT
|
1.2056(lbs); 0.548
|
| 021. |
9631605530
|
[1] |
ROD LIFT LH
|
1.6896(lbs); 0.768
|
| 022. |
9631605540
|
[2] |
BRACKET
|
0.3740(lbs); 0.170
|
| 024. |
3115071863
|
[4] |
JOINT CHAIN
|
0.0000(lbs); 0.000
|
| 025. |
3115071880
|
[4] |
PIN
|
0.0000(lbs); 0.000
|
| 026. |
0551110320
|
[4] |
PIN SPLIT
|
0.0000(lbs); 0.000
|
| 027. |
9631605230
|
[2] |
TURN BACKLE BOLT RH
|
0.2420(lbs); 0.110
|
| 028. |
9631605240
|
[2] |
TURN BACKLE BOLT LH
|
0.2530(lbs); 0.115
|
| 029. |
0211250120
|
[2] |
NUT
|
0.0154(lbs); 0.007
|
| 030. |
9926122890
|
[2] |
TURN BACKLE
|
0.0000(lbs); 0.000
|
| 031. |
6659181204
|
[1] |
COMP HITCH
|
0.0000(lbs); 0.000
|
| 032. |
0117351235
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 033. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 034. |
0217350120
|
[2] |
NUT
|
0.0000(lbs); 0.000
|
| 035. |
3415029720
|
[1] |
PIN
|
1.3464(lbs); 0.612
|
| 036. |
3115029730
|
[1] |
PIN SPRING
|
0.0968(lbs); 0.044
|
| 037. |
6659181122
|
[2] |
COVER LOWER LINK SID
|
0.0000(lbs); 0.000
|
| 038. |
0117351230
|
[2] |
BOLT
|
0.0814(lbs); 0.037
|
| 039. |
0217350120
|
[2] |
NUT
|
0.0000(lbs); 0.000
|
| 040. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 041. |
9631605220
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 042. |
0511251240
|
[2] |
PIN
|
0.0858(lbs); 0.039
|
