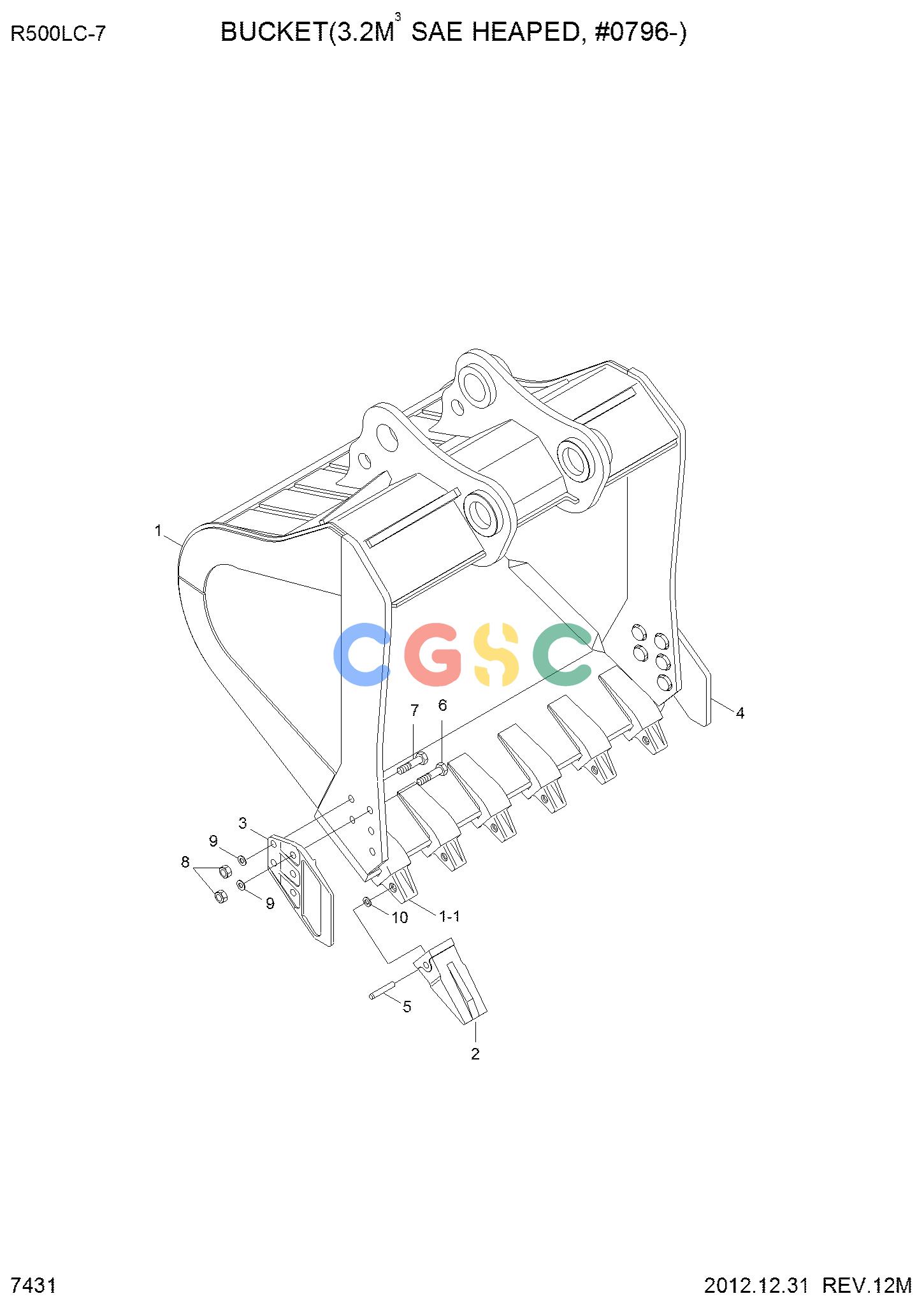

现代零件查询R500LC-7 BUCKET(3.20M3 SAE HEAPED, #0796-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
64QB-30801BG
|
[1] |
BUCKET ASSY
|
|
| . |
64QB-30802BG
|
[1] |
BUCKET ASSY
|
|
| 1. |
64QB-38011BG
|
[1] |
BUCKET WA
|
|
| 1. |
64QB-38012BG
|
[1] |
BUCKET WA
|
|
| 1-1. |
61NB-31320
|
[6] |
ADAPTER-TOOTH
|
|
| 2. |
61NB-31310GG
|
[6] |
POINT-TOOTH
|
|
| 3. |
61E7-0102GG
|
[1] |
CUTTER(LH)-SIDE
|
|
| 4. |
61E7-0103GG
|
[1] |
CUTTER(RH)-SIDE
|
|
| 5. |
61E7-04620
|
[6] |
PIN-TOOTH
|
|
| 6. |
S017-30085D
|
[6] |
BOLT-HEX
|
|
| 7. |
S017-30080D
|
[4] |
BOLT-HEX
|
|
| 8. |
S205-30100B
|
[10] |
NUT-HEX
|
|
| 9. |
S411-300006
|
[10] |
WASHER-SPRING
|
|
| 9. |
S441-300006
|
[10] |
WASHER-HARDENED
|
|
| 10. |
61E7-04630
|
[6] |
WASHER-LOCK
|
|
