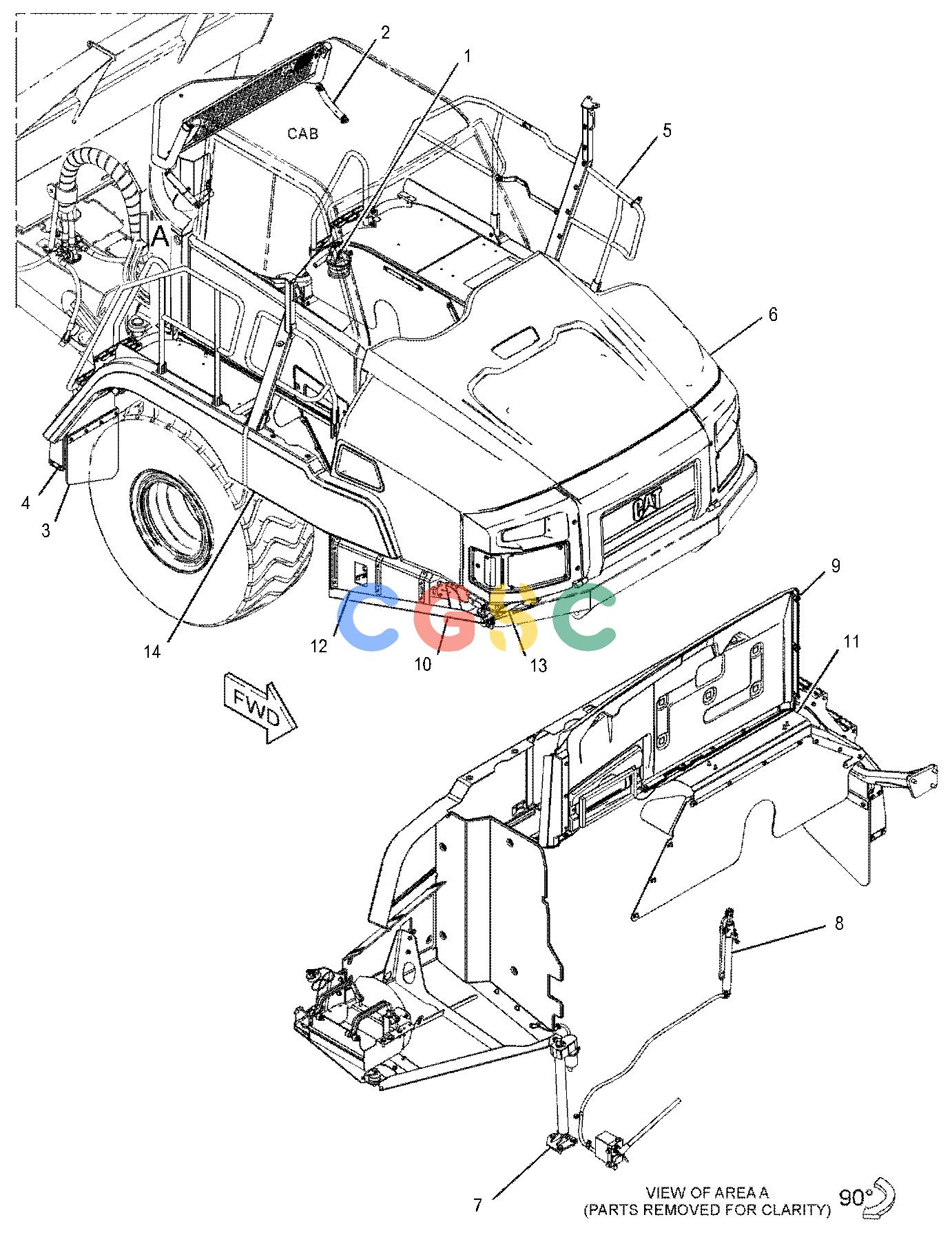

卡特零件查询（730C） 358-3963: ENCLOSURE AR-HOOD
广数供应链运营团队, 15 02月, 2025，浏览：
416 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 139-4593Y | [1] | MOUNTING GP-ROPS | |
| 2. | 291-8960Y | [1] | GUARD GP-WINDOW | |
| 3. | 364-5174Y | [1] | FENDER GP(REAR) | |
| 4. | 364-5176Y | [1] | GUARD GP-CRANKCASE | |
| 5. | 364-5177Y | [1] | GUARD GP-PLATFORM | |
| 6. | 364-5179Y | [1] | HOOD GP-ENGINE | |
| 7. | 364-8698Y | [1] | TILT GP-HOOD | |
| 8. | 364-8699Y | [1] | TILT GP-PLATFORM | |
| 9. | 458-7300Y | [1] | PANEL GP-CAB | |
| 10. | 380-7598Y | [1] | GUARD GP-BOTTOM | |
| 11. | Y | [1] | PANEL GP-FENDER(RH) |
| 12. | 392-7745Y | [1] | SHIELD GP-HEAT | |
| 13. | 416-2482Y | [1] | MOUNTING GP-DEF TANK | |
| 14. | 419-0753Y | [1] | PANEL GP-FENDER(FRONT) | |
| 15. | 425-5754Y | [1] | STEP GP | |
| | Y | | SEPARATE ILLUSTRATION |
