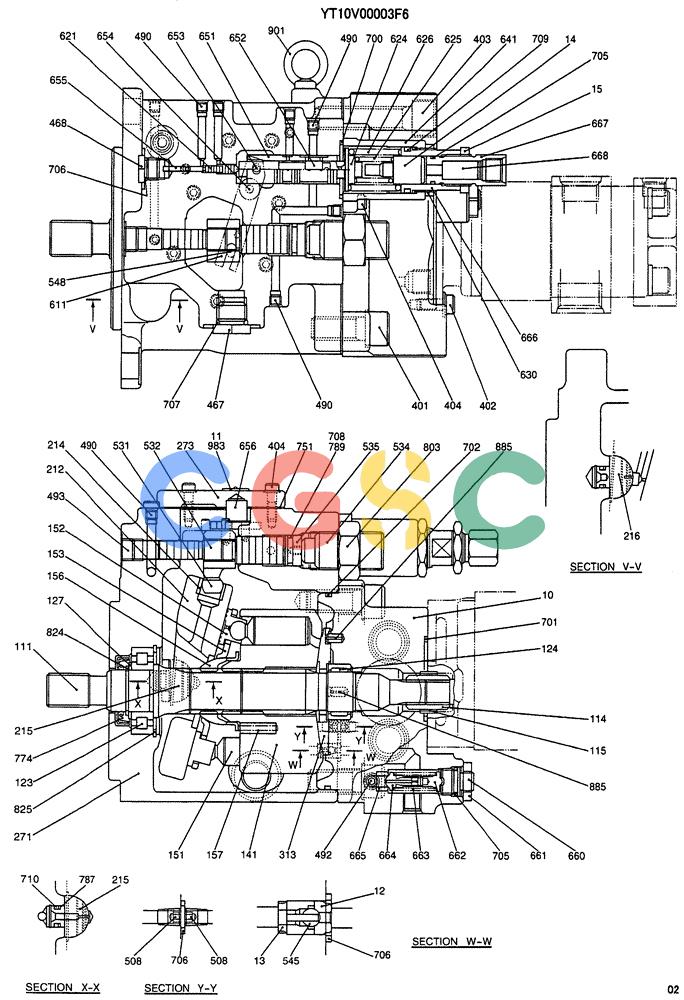

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-029) - PUMP ASSY, P/N YT10V00003F6 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
622 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT10V00003F6 | [1] | PUMP ASSY | |
| 10. | YT10V00003S010 | [1] | VALVE | KOBCOVER |
| 11. | YT10V00003S011 | [1] | LABEL | KOBNAME PLATE |
| 12. | NSS | [2] | NOT SERVICED SEPARATELY | CONSEAT |
| 14. | YT10V00003S014 | [1] | STEM | |
| 15. | YT10V00003S015 | [1] | NUT | KOB |
| 111. | YT10V00003S111 | [1] | SHAFT | KOB |
| 114. | YT10V00003S114 | [1] | COUPLING | KOB |
| 115. | YT10V00003S115 | [1] | COLLAR | KOB |
| 123. | YT10V00003S123 | [1] | BEARING | KOBROLLER |
| 124. | PY10V00003S124 | [1] | BEARING | KOBNEEDLE |
| 127. | 2441U398S127 | [1] | SPACER | KOB |
| 153. | YT10V00003S153 | [1] | PLATE | KOB |
| 156. | YW10V00005S156 | [1] | BUSHING | KOB |
| 157. | YT10V00003S157 | [10] | SPRING | KOB |
| 215. | YT10V00003S215 | [1] | BALL | KOB |
| 216. | YT10V00003S216 | [1] | BALL | KOB |
| 271. | YT10V00003S271 | [1] | CASE | KOB |
| 273. | YT10V00003S273 | [1] | COVER | KOB |
| 401. | ZS23C16040 | [4] | CAPSCREW,Hex Socket Head, M16 x 40mm | KOBSCREW CAP |
| 402. | YT10V00003S402 | [2] | CAPSCREW | KOBSCREW CAP |
| 403. | ZS23C16070 | [1] | SCREW,Hex Socket Head, M16 x 70mm | KOBCAP |
| 404. | ZS23C06020 | [9] | SCREW,Hex Socket Head, M6 x 20mm | KOBCAP Superseded by part number: ZS28C06020 |
| 467. | 2441U436S468 | [1] | PLUG | KOB |
| 468. | 2441U667S466 | [1] | PLUG | KOB |
| 490. | 2441U722S490 | [14] | PLUG | KOB |
| 492. | 2436U1165S152 | [1] | PLUG | KOB |
| 493. | 2436U749S151 | [1] | PLUG | KOB Superseded by part number: ZE82T06000 |
| 508. | YT10V00003S508 | [4] | BATTERY | KOBORIFICE |
| 532. | YT10V00003S532 | [1] | PISTON | KOB |
| 534. | YT10V00003S534 | [1] | SCREW | KOBSET |
| 535. | YT10V00003S535 | [1] | STOP | KOB |
| 621. | YT10V00003S621 | [1] | PISTON | KOB |
| 624. | PY10V00003S624 | [1] | SPRING SEAT | KOB |
| 625. | YT10V00003S625 | [1] | SPRING | KOB |
| 626. | YT10V00003S626 | [1] | SPRING | KOB |
| 630. | 2436U1378S630 | [1] | NUT | KOB |
| 641. | YT10V00003S641 | [1] | COVER | KOBSPRING |
| 655. | YT10V00003S655 | [1] | PIN | KOB |
| 656. | YT10V00003S656 | [1] | PIN | KOB |
| 660. | YT10V00003S660 | [1] | SCREW | KOBADJUST |
| 661. | YN10V00006S312 | [1] | LOCK NUT | KOB |
| 662. | YN10V00006S309 | [1] | SPRING | KOBSEAT |
| 663. | YN10V00006S310 | [1] | SPRING | KOB |
| 664. | YN10V00006S307 | [1] | POPPET | KOB Superseded by part number: YX10V00004R100 |
| 665. | YT10V00003S665 | [1] | SEAT | KOB |
| 666. | YT10V00003S666 | [1] | SCREW, ADJUST | |
| 667. | YT10V00003S667 | [1] | STEM | |
| 668. | YT10V00003S668 | [1] | PISTON | |
| 700. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB |
| 701. | ZD12G05500 | [1] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO |
| 702. | ZD12G13500 | [1] | O-RING,134.40mm ID x 140.60mm OD x 3.10mm | KOB |
| 705. | ZD12P01600 | [2] | O-RING | KOB |
| 706. | ZD12P01100 | [7] | O-RING | KOB |
| 707. | ZD12P01800 | [1] | O-RING | KOB |
| 708. | YT10V00003S708 | [1] | O-RING | KOB |
| 709. | ZD12P02600 | [1] | O-RING | KOB |
| 710. | YT10V00003S710 | [1] | O-RING | KOB |
| 751. | YT10V00003S751 | [1] | GASKET | KOB |
| 774. | YT10V00003S774 | [1] | OIL SEAL | KOB |
| 787. | YT10V00003S787 | [1] | RING | KOBBACK UP |
| 789. | YT10V00003S789 | [2] | BACK-UP RING | KOB |
| 803. | YT10V00003S803 | [1] | NUT | KOB |
| 824. | 2441U398S820 | [1] | RING | KOB Superseded by part number: ZR16X03000 |
| 825. | ZR26X06200 | [1] | SNAP RING | KOBRETAINING |
| 885. | ZP26D06012 | [2] | PIN | KOBSPRING |
| 901. | PY10V00003S901 | [1] | BOLT | KOBEYE |
| 983. | 2437U407S983 | [2] | RIVET | KOB |
| . . | PY10V00003R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 651 (1), 652 (1) |
| . . | YT10V00003R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 141 (1), 313 (1) |
| . . | YT10V00003R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 212 (1), 214 (1) |
| . . | YT10V00003R300 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 531 (1), 548 (1) |
| . . | YT10V00003R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 611 (1), 653 (1), 654 (1) |
| . . | YT10V00003R500 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 151 (10), 152 (10) Superseded by part number: YT10V00003R600 |
