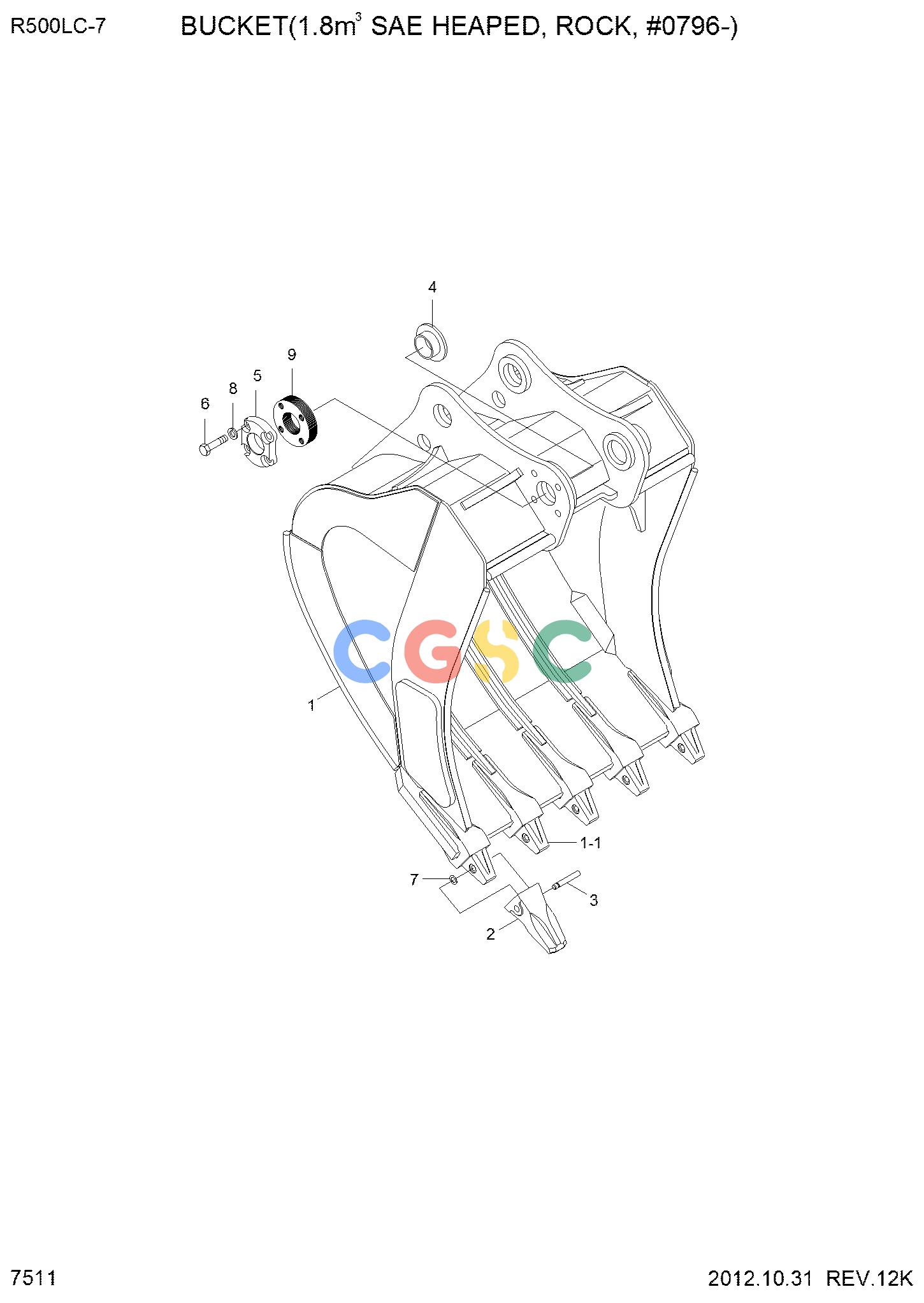

现代零件查询R500LC-7 BUCKET(1.80M3 SAE HEAPED, ROCK, #0796-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
740 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
65QB-30401BG
|
[1] |
BUCKET ASSY
|
|
| . |
65QB-30402BG
|
[1] |
BUCKET ASSY
|
|
| 1. |
65QB-34011BG
|
[1] |
BUCKET WA
|
|
| 1. |
65QB-34012BG
|
[1] |
BUCKET WA
|
|
| 1-1. |
61NB-31320
|
[5] |
ADAPTER-TOOTH
|
|
| 2. |
61NB-31310GG
|
[5] |
POINT-TOOTH
|
|
| 3. |
66NB-31340
|
[5] |
PIN-TOOTH
|
|
| 4. |
63NB-32500
|
[1] |
BUSHING
|
|
| 5. |
63NB-32510GG
|
[1] |
PLATE-COVER
|
|
| 6. |
S017-27060D
|
[4] |
BOLT-HEX
|
|
| 7. |
66NB-31350
|
[5] |
WASHER-LOCK
|
|
| 8. |
S441-270006
|
[4] |
WASHER-HARDENED
|
|
| 9. |
63NB-32520
|
[12] |
SHIM(1.0T)
|
|
