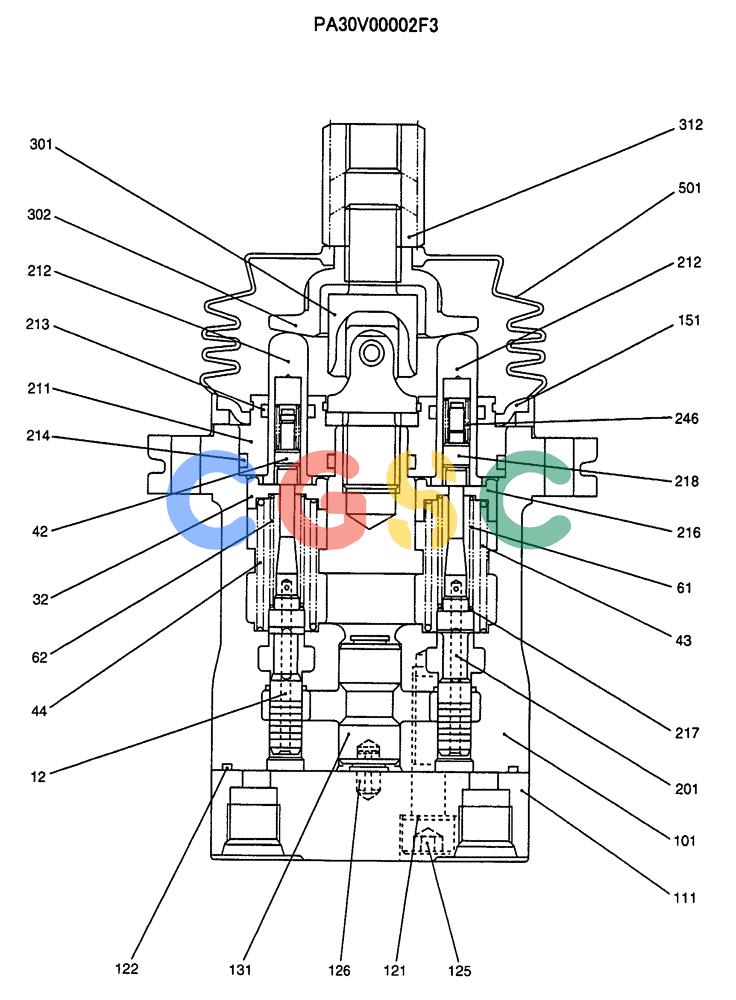

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-043) - VALVE ASSY, PILOT (DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
875 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PA30V00002F3 | [1] | PILOT VALVE | KOBASSY Superseded by part number: PX30V00043F2 |
| 12. | NSS | [2] | NOT SERVICED SEPARATELY | CONSPOOL |
| 121. | 2436U1277S121 | [2] | WASHER | KOBSEAL |
| 122. | PA30V00003S122 | [1] | O-RING | KOB |
| 213. | 2436U1277S213 | [4] | SEAL | KOB |
| 214. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 501. | YT30V00008S501 | [1] | BOOT | KOB |
