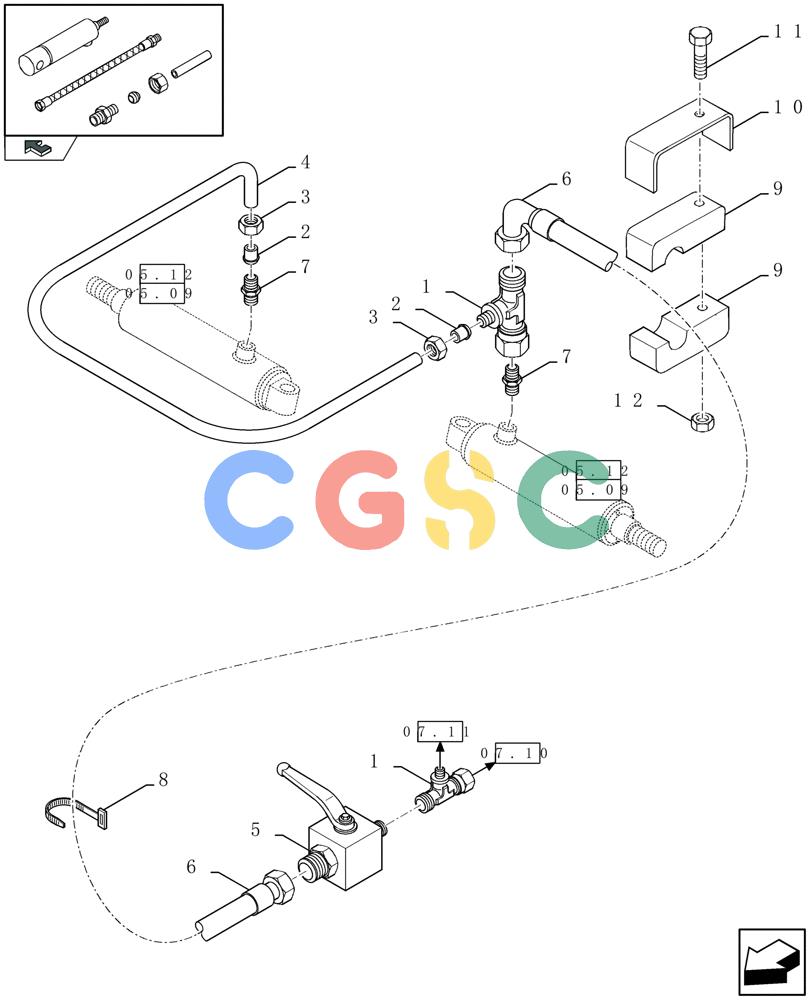

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (07.12[01]) - TANDEM AUTO-STEER AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
560 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80734031
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 734031
|
| 2. |
80150014
|
[2] |
FERRULE
|
ZED
10 MM Superseded by part number: 150014
|
| 3. |
86548975
|
[2] |
PIPE UNION NUT,M16 x 1.5
|
ZED
M10
|
| 4. |
80371539
|
[1] |
RIGID TUBE
|
ZED
D= 10 MM, L= 2 M Superseded by part number: 371539
|
| 5. |
84043962
|
[1] |
DRAINCOCK/TAP SUPPLY
|
ZED
|
| 6. |
84449414
|
[1] |
FLEXIBLE HOSE,7.94mm ID x 1960mm L, SAE 100R1
|
ZED
|
| 7. |
89813512
|
[2] |
HYD CONNECTOR
|
ZED
|
| 8. |
80368582
|
[3] |
STRAP
|
ZED
Superseded by part number: 14560287
|
| 9. |
80433007
|
[2] |
CLAMP
|
ZED
Superseded by part number: 433007
|
| 10. |
80433100
|
[1] |
SUPPORT
|
ZED
Superseded by part number: 433100
|
| 11. |
86508569
|
[1] |
BOLT,Hex, M6 x 70mm, Cl 8.8
|
NH
|
| 12. |
80412152
|
[1] |
NUT
|
ZED
M6 Superseded by part number: 412152
|
