纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-008) - TIMING GEAR CASE AND FLYWHEEL HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
980 次

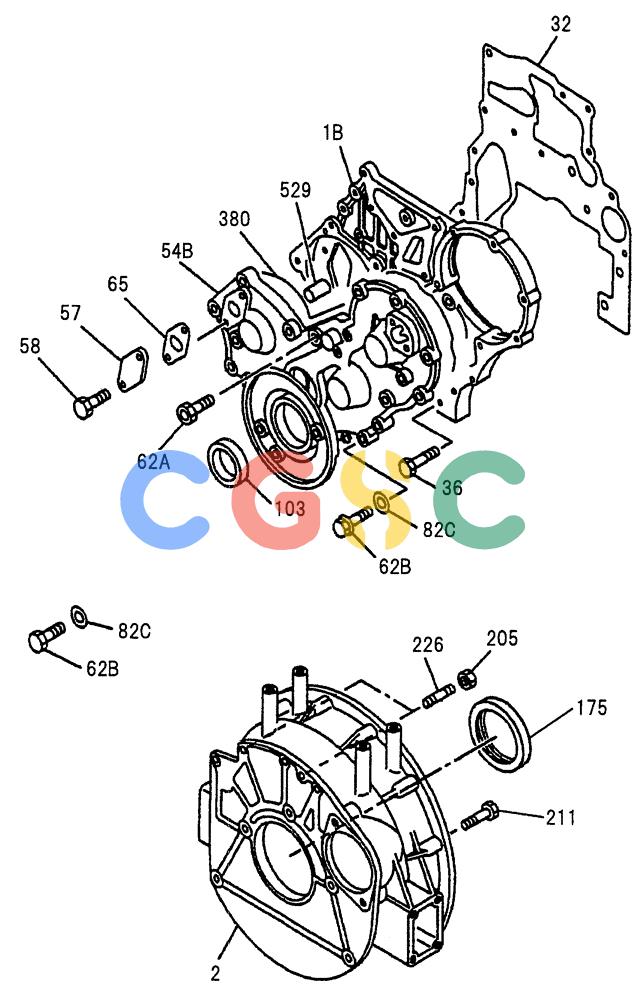

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1B. | VI8972190014 | [1] | CASE | KOBCASE; TIMING GEAR |
| 2. | VI8972181121 | [1] | FLYWHEEL | KOBHOUSING; FLYWHEEL |
| 32. | VI8971294271 | [1] | GASKET | KOBGASKET; GEAR CASE TO C/BL |
| 36. | VI0500408450 | [2] | BOLT | KOBBOLT; GEAR CASE M8 X 45 W/LK WASHER |
| 36. | VI0500408180 | [3] | BOLT | KOBBOLT; GEAR CASE M8 X 18 W/LK WASHER |
| 36. | VI0500408200 | [3] | BOLT | KOBBOLT; GEAR CASE M8 X 20 W/LK WASHER Superseded by part number: VI0507408200 |
| 54B. | VI8972312141 | [1] | COVER | KOBCOVER; GEAR CASE |
| 57. | VI5113210090 | [2] | COVER | KOBCOVER; TIMING CHECK HOLE |
| 58. | VI0280806120 | [4] | BOLT | KOBBOLT; CHECK HOLE COVER M6 X 12 FLANGE |
| 62A. | VI0583112550 | [1] | BOLT | KOBBOLT; COVER M12 X 55 W/HEX-SOCKET |
| 62B. | VI0280808300 | [8] | BOLT | KOBBOLT; COVER M8 X 30 FLANGE Superseded by part number: VI0280508300 |
| 62B. | VI0280808600 | [7] | BOLT | KOBBOLT; COVER M8 X 60 FLANGE |
| 65. | VI8970276011 | [2] | GASKET | KOBGASKET; COVER, TIMING CHECK HOLE Superseded by part number: VI8971186980 |
| 82C. | VI9091607080 | [1] | WASHER | KOBWASHER; LK, COVER Superseded by part number: VI0916107080 |
| 103. | VI5096250790 | [1] | SEAL | KOBSEAL; OIL, CR/SHF, FRT Superseded by part number: VI8970491450 |
| 175. | VI8970715611 | [1] | SEAL | KOBSEAL; OIL, CR/SHF, RR |
| 205. | VI0911502100 | [2] | NUT | KOBNUT; HSG |
| 211. | VI5090002270 | [3] | BOLT | KOBBOLT; HSG M12 X 25 |
| 211. | VI0286810300 | [1] | BOLT | KOBBOLT; HSG M10 X 30 FLANGE |
| 226. | VI8941077260 | [2] | STUD | KOBSTUD; HSG |
| 380. | VI8941401171 | [1] | GASKET | KOBGASKET; COVER Superseded by part number: VI8972386310 |
| 529. | VI9081510200 | [2] | FLYWHEEL | KOBPIN; STRAIGHT |
