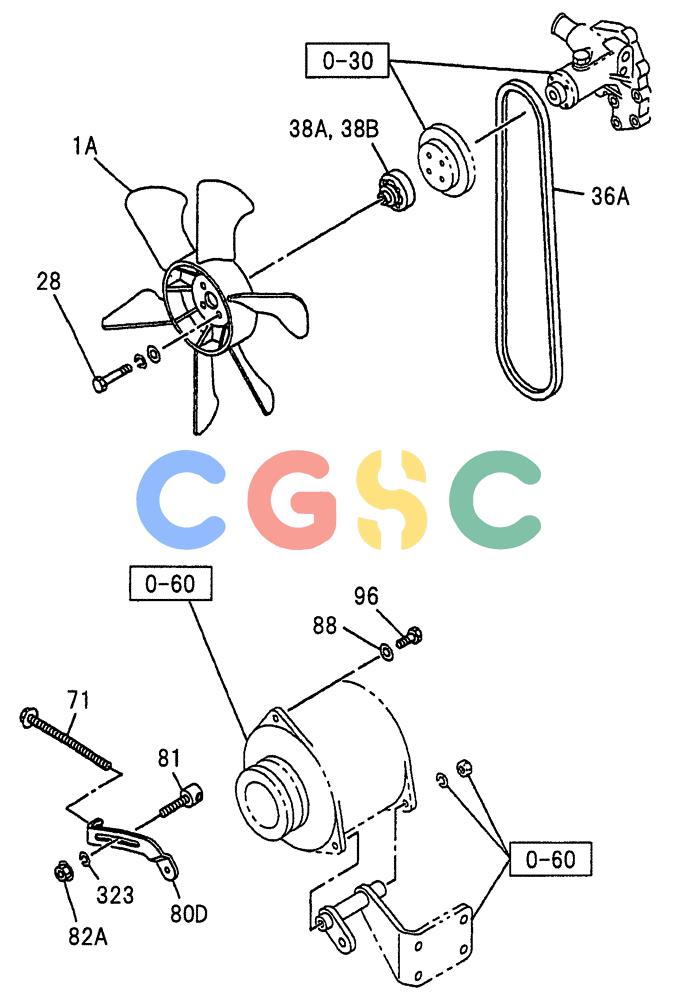

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-016) - FAN AND FAN BELT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
777 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1A. | VI8943426182 | [1] | FAN | KOBCOOLING, D=450-7-SUCT-PP |
| 28. | VI0280806700 | [4] | BOLT | KOBCOOLING FAN M6 X 70, FLANGE Superseded by part number: VI0280506700 |
| 36A. | VI8973142270 | [1] | BELT | KOBCOOLING FAN, L=1025 |
| 38A. | VI9136420780 | [1] | SPACER | KOBFAN |
| 38B. | VI8970634003 | [1] | SPACER | KOBFAN |
| 38A. | VI9891364230 | [1] | SPACER | KOBFAN |
| 71. | VI8971727201 | [1] | BOLT | KOBADJ PLATE, GEN, M8 X 130 FLANGE |
| 80D. | VI8971842640 | [1] | PLATE | KOBADJ |
| 81. | VI8972572230 | [1] | SLIDE | KOBPIECE; SLIDING |
| 82A. | VI9091105080 | [1] | HANGER | KOBNUT; ADJ PLATE |
| 88. | VI9091647080 | [1] | WASHER | KOBPL, ADJ PLATE Superseded by part number: 87597736 |
| 96. | VI0280808200 | [1] | BOLT | KOBADJ PLATE M8 X 20, FLANGE Superseded by part number: VI0280508200 |
| 323. | VI9091505080 | [1] | WASHER | KOBLK, SLIDING PIECE Superseded by part number: VI0915105080 |
