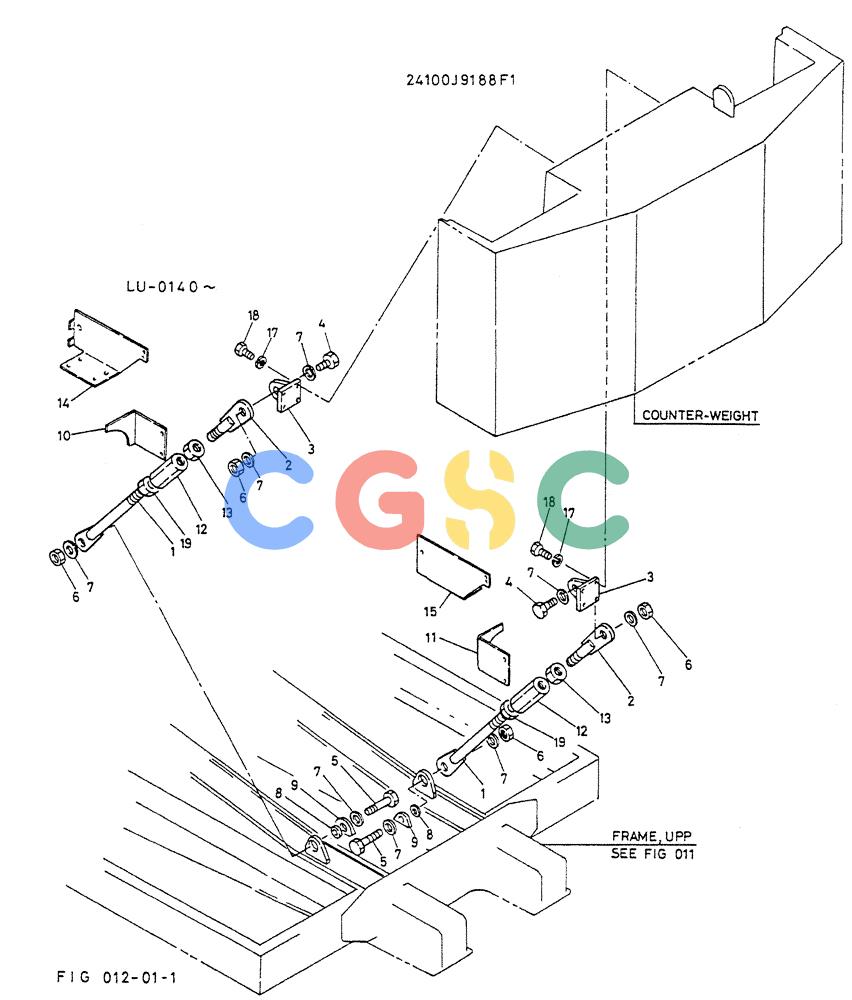

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (01-002) - INSTAL, COUNTER-WEIGHT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
388 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24I00J9188F1 | [1] | INSTAL, COUNTER-WEIGHT | |
| 1. | 2416T20388 | [2] | STAY | |
| 2. | 2416T20389 | [2] | STAY | |
| 3. | 2416T20387 | [2] | BRACKET | |
| 4. | ZS18C20070 | [2] | BOLT,Hex, M20 x 70mm | KOBM20x2.50x70mm |
| 5. | ZS18C20100 | [2] | SCREW,Hex, M20 x 100mm | KOBM20x2.50x100mm |
| 6. | ZN18C20016 | [4] | NUT | KOBM20x2.5mm |
| 7. | ZW16H20000 | [8] | WASHER | KOBID 21 x OD 40 x Th 4.5mm |
| 8. | 2418T15472 | [2] | PLATE | KOB |
| 9. | 2418T15471 | [2] | PLATE | PLATE |
| 10. | 2416P11472D1 | [1] | BRACKET | |
| 11. | 2416P11472D2 | [1] | BRAKCET | |
| 12. | 2420T4565 | [2] | NUT | |
| 13. | ZN18C36029 | [2] | NUT | KOB |
| 14. | 2416P12030D1 | [1] | BRACKET | |
| 15. | 2416P12030D2 | [1] | BRACKET | |
| 17. | ZW26X16000 | [8] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 18. | ZS18C16050 | [8] | SCREW,Hex, M16 x 50mm | KOBM16x2.0x50mm |
| 19. | 2420T4566 | [2] | NUT | |
