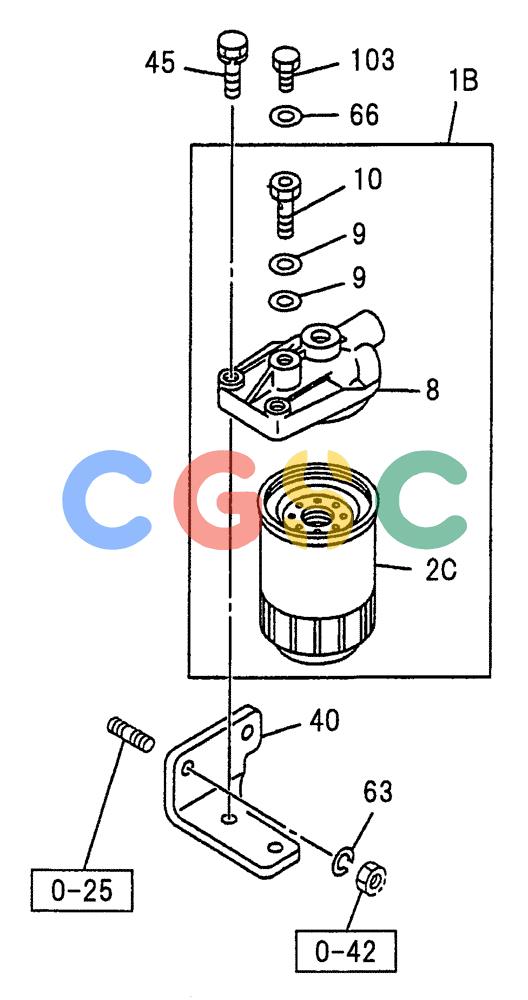

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-018) - FUEL FILTER AND BRACKET New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
311 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1B. | VI8971798541 | [1] | FUEL FILTER | KOBFILTER ASM; FUEL |
| 2C. | VI8971725491 | [1] | ELEMENT | KOBEngine Fuel Filter -- ISUZU Engine Part Number Superseded by part number: YB02P00001-2 |
| 8. | VI8971798550 | [1] | COVER | KOBCOVER; FUEL FILTER Superseded by part number: 76615430 |
| 9. | VI1096300850 | [2] | GASKET | KOBGASKET; EYE JOINT |
| 10. | VI1132600470 | [1] | REDUCER | KOBVALVE; OVERFLOW, FUEL FILTER |
| 40. | VI8944104040 | [1] | BRACKET | KOBBRACKET; FUEL FILTER |
| 45. | VI0286810350 | [2] | BOLT | KOBBOLT; FUEL FILTER M10 X 35 FLANGE |
| 63. | VI9091505100 | [2] | WASHER | KOBWASHER; LK, FUEL FILTER Superseded by part number: VI1099853450 |
| 66. | VI9095714080 | [1] | PACKING | KOBGASKET; PLUG, FUEL FILTER Superseded by part number: 289808A1 |
| 103. | VI9092023080 | [1] | SCREW | KOBPLUG; OVER FLOW VLV |
