神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (01-007) - REDUCTION UNIT P/N 24100X397F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
389 次

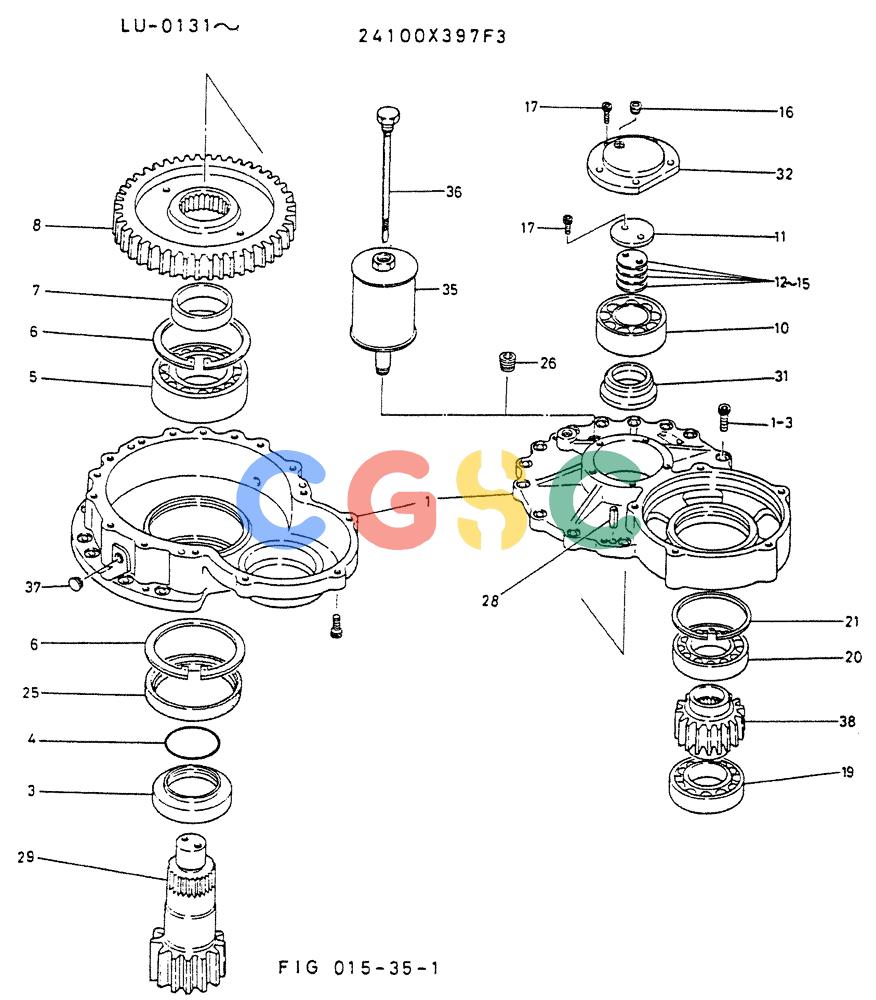

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X397F3 | [1] | REDUCTION UNIT | |
| 1. | 24I4J391F1 | [1] | CASE | |
| 1-3. | ZS23C16055 | [16] | SCREW,Hex Socket Head, M16 x 55mm | KOBM16x2.0x55mm |
| 3. | 2418T3933 | [1] | HOSE | KOB |
| 4. | ZD11G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOB |
| 5. | R25P0056D8 | [1] | BEARING | KOB |
| 6. | R16P0032D2 | [2] | SNAP RING | KOB Superseded by part number: 2418R5D71 |
| 7. | A16T0035D3 | [1] | SPACER | KOB |
| 8. | A01K0023 | [1] | GEAR | KOB |
| 10. | 25Z539D5 | [1] | BEARING | KOB |
| 11. | 2418T3935 | [1] | PLATE | KOB |
| 12. | 2420T2555D1 | [1] | SHIM | KOB |
| 13. | 2420T2555D2 | [1] | SHIM | KOB |
| 14. | 2420T2555D3 | [1] | SHIM | KOB |
| 15. | 2420T2555D4 | [1] | SHIM | KOB |
| 16. | ZE82T06000 | [1] | PLUG | KOBPipe, 3/8" PT |
| 17. | ZS23C10025 | [7] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 19. | 25Z628D13 | [1] | ROLLER BEARING | KOB |
| 20. | R25P0052D4 | [1] | ROLLER BEARING | KOB |
| 21. | 2418R5D61 | [1] | RING, RETAINING | RING, RETAINING |
| 25. | ZD21T15000 | [1] | OIL SEAL | KOB |
| 26. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| 28. | ZP26D13045 | [3] | ROLL PIN | KOB |
| 29. | 2401J125 | [1] | PINION | KOB |
| 31. | 2418T5101 | [1] | SPACER | KOB |
| 32. | 2414T986 | [1] | COVER | COVER |
| 35. | 2427P1307 | [1] | TANK | TANK |
| 36. | 2489P3 | [1] | DIPPER | KOB |
| 37. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 38. | 2401N533 | [1] | PINION | |
