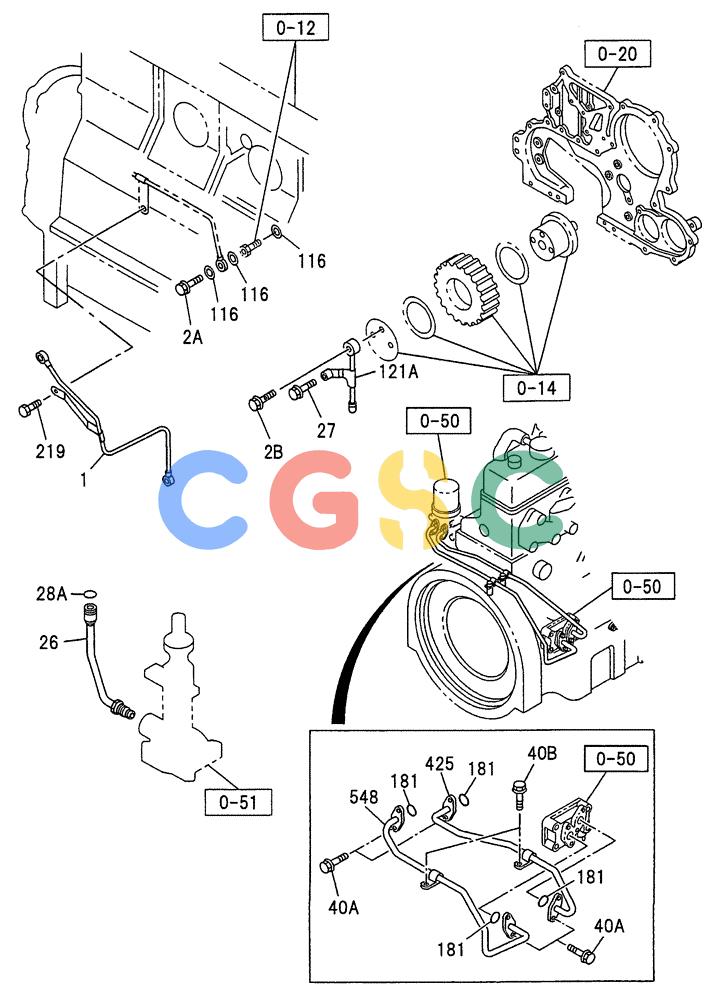

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-022) - OIL AND VACUUM PIPING, ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
403 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8972329570 | [1] | TUBE | KOBPIPE; OIL, INJ PUMP TO C/BL |
| 2A. | VI5096750181 | [1] | BOLT | KOBBOLT; EYE, OIL PIPE M8 X 20 FLANGE |
| 2B. | VI8944541990 | [1] | BOLT | KOBBOLT; EYE, OIL PIPE M8 X 23 FLANGE Superseded by part number: VI5096750430 |
| 26. | VI8944348271 | [1] | PIPE | KOBPIPE; OIL, PUMP TO C/BL |
| 27. | VI0500408220 | [1] | BOLT | KOBBOLT; OIL PIPE FIX M8 X 22 WASHER |
| 28A. | VI5096230020 | [1] | O-RING | KOBGASKET; OIL PIPE |
| 40A. | VI0286808200 | [8] | BOLT | KOBBOLT; OIL PIPE M8 X 20 FLANGE Superseded by part number: 84284784 |
| 40B. | VI0281810120 | [2] | BOLT; OIL PIPE M10 X 12 FLANGE | |
| 116. | VI9095720080 | [3] | GASKET | KOBGASKET; CAP NUT, OIL PIPE ID=8.2 OD=17 |
| 121A. | VI8971607060 | [1] | PIPE | KOBPIPE; OIL, GEAR CASE |
| 181. | VI9095612220 | [4] | GASKET | KOBGASKET |
| 219. | VI0500406120 | [1] | BRACKET | KOBBOLT; CLIP FIX, OIL PIPE M6 X 12 W/LK WASHER |
| 425. | VI8972153860 | [1] | PIPE ASM; OIL COVER TO FILTER | |
| 548. | VI8972153870 | [1] | PIPE | KOBPIPE ASM; OIL COVER TO FILTER |
