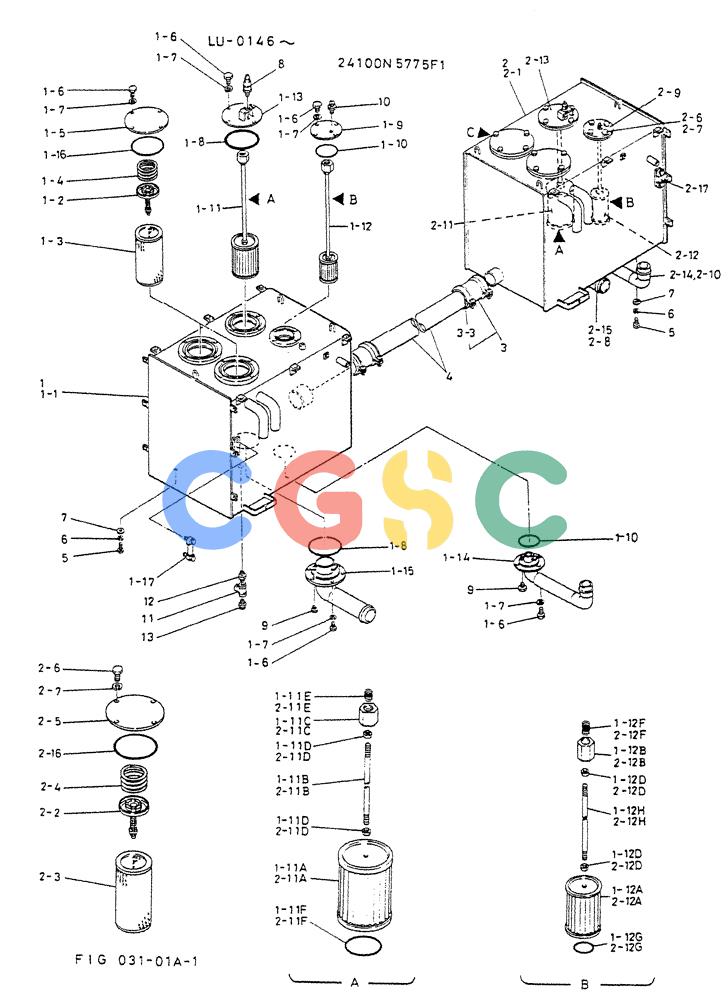

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (01-009) - TANK ASSY, HYD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
718 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5775F1 | [1] | TANK ASSY, HYD | |
| 1. | 24100J10806F1 | [1] | TANK ASSY, HYD | |
| 1-1. | 2427J1403 | [1] | TANK, HYD | |
| 1-2. | 2446R131 | [2] | VALVE | KOB |
| 1-3. | R36P0012 | [2] | ELEMENT | KOB Superseded by part number: 24046Z2P |
| 1-4. | 2417T296 | [2] | SPRING | KOB |
| 1-5. | 2418T7763 | [2] | FLANGE | |
| 1-6. | ZS18C12025 | [26] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 1-7. | ZW26X12000 | [26] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 1-8. | ZD11G16500 | [2] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| 1-9. | 2418T7765 | [1] | FLANGE | |
| 1 -10. | ZD11G11500 | [2] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 1-11. | 2446R116F1 | [1] | STRAINER ELEMENT | KOBASSY |
| 1-11A. | 2446R116E1 | [1] | STRAINER ELEMENT | KOB Superseded by part number: 2446R116F3, 77259136 |
| 1-11B. | 2446R116S2 | [1] | CAPSCREW | |
| 1-11C. | 2446R110S2 | [1] | HOLDER | KOB |
| 1-11D. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 1-11E. | 2446R110S6 | [1] | SPRING | KOB |
| 1-11F. | 45Z9106 | [1] | O-RING | |
| 1-12. | 2446R110F3 | [1] | STRAINER ASSY | STRAINER ASSY |
| 1-12A. | 2446R110S1 | [1] | STRAINER ELEMENT | KOB |
| 1-12B. | 2446R110S2 | [1] | HOLDER | KOB |
| 1-12D. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 1-12F. | 2446R110S6 | [1] | SPRING | KOB |
| 1-12G. | 45Z91D53 | [1] | O-RING | KOB |
| 1-12H. | 2446R110S8 | [1] | CAPSCREW | |
| 1-13. | 2418P17591 | [1] | FLANGE | |
| 1-14. | 2420P2466 | [1] | IPE | |
| 1-15. | 2420P2465 | [1] | PIPE | |
| 1-16. | ZD11G19000 | [2] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOBID 189.30 ± 1.47 x OD 200mm |
| 1-17. | 2489Z20401 | [1] | GAUGE, LEVEL | |
| 2. | 24100J10838F1 | [1] | TANK ASSY, HYDR | |
| 2-1. | 2427J1404 | [1] | TANK, HYD | |
| 2-2. | 2446R131 | [2] | VALVE | KOBRELIEF |
| 2-3. | R36P0012 | [2] | ELEMENT | KOB Superseded by part number: 24046Z2P |
| 2-4. | 2417T296 | [2] | SPRING | KOB |
| 2-5. | 2418T7763 | [2] | FLANGE | |
| 2-6. | ZS18C12025 | [26] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 2-7. | ZW26X12000 | [26] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 2-8. | ZD11G16500 | [2] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| 2-9. | 2418T7765 | [1] | FLANGE | |
| 2-10. | ZD11G11500 | [2] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 2-11. | 2446R116F1 | [1] | STRAINER ELEMENT | KOBASSY |
| 2-11A. | 2446R116E1 | [1] | STRAINER ELEMENT | KOB Superseded by part number: 2446R116F3, 77259136 |
| 2-11B. | 2446R116S2 | [1] | CAPSCREW | |
| 2-11C. | 2446R110S2 | [1] | HOLDER | KOB |
| 2-110. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 2-11E. | 2446R110S6 | [1] | SPRING | KOB |
| 2-11F. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| 2-12. | 2446R110F3 | [1] | STRAINER ASSY | STRAINER ASSY |
| 2-12A. | 2446R110S1 | [1] | STRAINER ELEMENT | KOB |
| 2-12B. | 2446R110S2 | [1] | HOLDER | KOB |
| 2-12D. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 2-12F. | 2446R110S6 | [1] | SPRING | KOB |
| 2-12G. | 45Z91D53 | [1] | O-RING | KOB |
| 2-12H. | 2446R110S8 | [1] | CAPSCREW | |
| 2-13. | 2418P17591 | [1] | FLANGE | |
| 2-14. | 2420P2466 | [1] | PIPE | |
| 2-15. | 2420P2465 | [1] | PIPE | |
| 2-16. | ZD11G19000 | [2] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOBID 189.30 ± 1.47 x OD 200mm |
| 2-17. | 2489Z204D1 | [1] | LEVEL GAUGE | KOBGAUGE, LEVEL |
| 3. | R44P0089D3 | [2] | COUPLING COUPLING | COUPLING COUPLING |
| 3-3. | R44P0089D3S3 | [2] | GASKET GASKET | GASKET GASKET |
| 4. | 2418T7766 | [1] | PIPE | |
| 5. | ZS18C16040 | [8] | SCREW,Hex, M16 x 40mm | KOBM16x2.0x40mm |
| 6. | ZW26X16000 | [8] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 7. | ZW16X16000 | [8] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 8. | 2436Z270D1 | [2] | SAFETY VALVE | KOBVALVE, SAFETY |
| 9. | R20T0133D2 | [4] | PLUG PLUG | PLUG PLUG |
| 10. | 2436Z277 | [2] | BLEEDER | KOBBREATHER |
| 1 1. | ZG52U08000 | [1] | TEE | KOBCONNECTOR |
| 12. | ZG22E08000 | [1] | NIPPLE CONNECTOR | NIPPLE CONNECTOR |
| 13. | R44P0012D1 | [2] | COCK, DRAIN COCK, DRAIN | COCK, DRAIN COCK, DRAIN |
