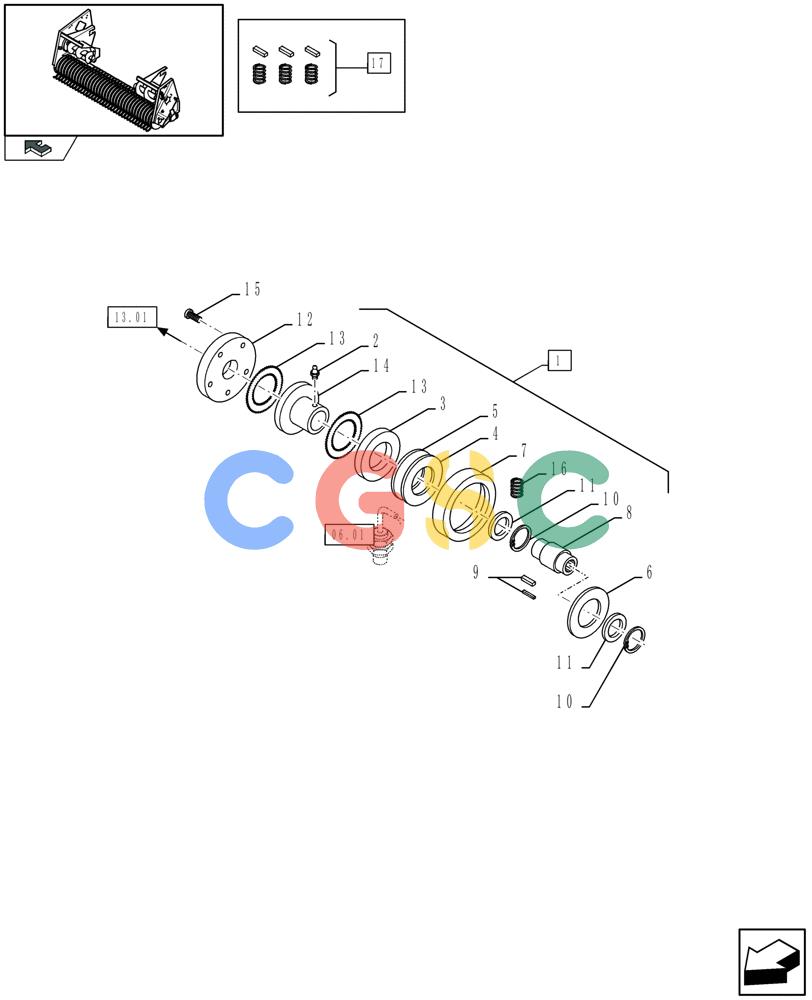

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (13.01A[01]) - PICK-UP, MAIN TRANSMISSION , RH - CLUTCH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
510 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89837857
|
[1] |
CLUTCH
|
ZED
, Serial Range: (2-16) Superseded by part number: 87364750
|
| 2. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 3. |
84004304
|
[1] |
CLUTCH PLATE,76.2mm ID x 157.23mm OD x 9.53mm Thk
|
ZED
|
| 4. |
84004305
|
[1] |
CLUTCH PLATE
|
ZED
|
| 5. |
84004500
|
[1] |
CLUTCH DRIVING PLATE
|
ZED
|
| 6. |
84004306
|
[1] |
WASHER
|
ZED
|
| 7. |
84004501
|
[1] |
HOUSING
|
ZED
|
| 8. |
84004499
|
[1] |
HUB
|
ZED
|
| 9. |
NSS
|
[3] |
NOT SOLD SEPARAT
|
CON
Included in Ref. 17
|
| 10. |
84004298
|
[2] |
CIRCLIP
|
ZED
|
| 11. |
84004299
|
[2] |
RING
|
ZED
Superseded by part number: 87731760
|
| 12. |
84043419
|
[1] |
FLANGE
|
ZED
|
| 13. |
84026625
|
[2] |
DISC
|
ZED
|
| 17. |
84004498
|
[1] |
REPAIR KIT
|
ZED
(9, 16)
|
