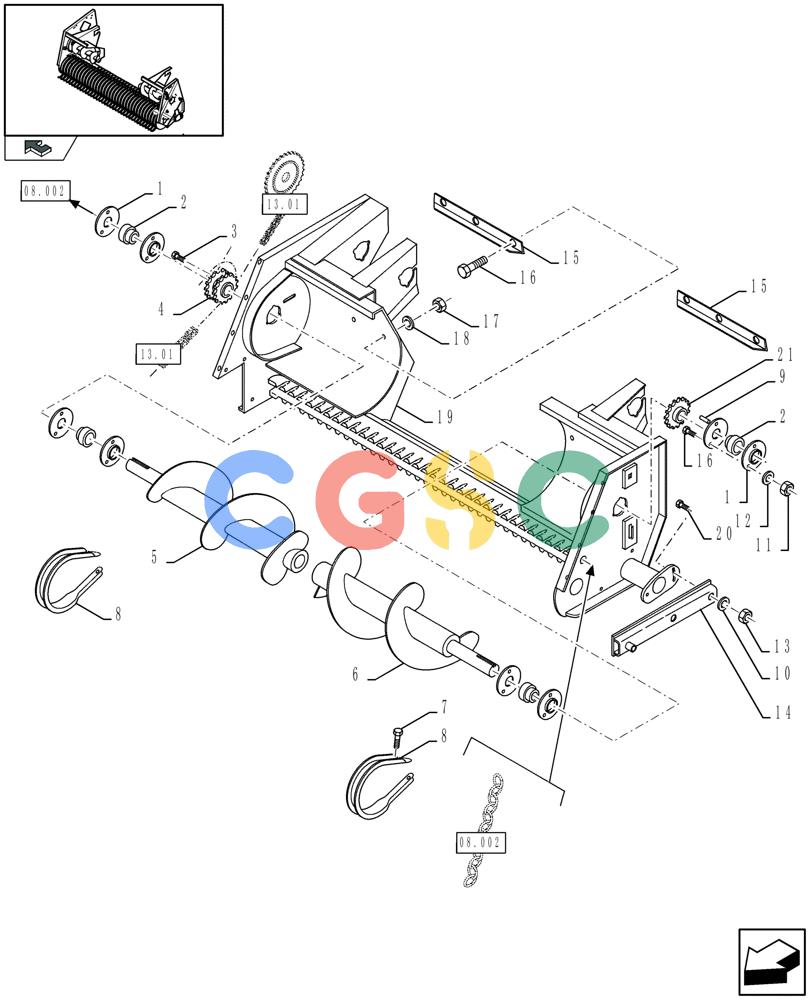

| 1. |
80036403
|
[8] |
FLANGE
|
ZED
Superseded by part number: 86620026
|
| 2. |
89837842
|
[4] |
BEARING ASSY
|
ZED
Superseded by part number: 9837842
|
| 3. |
89837838
|
[1] |
KEY
|
ZED
Superseded by part number: 9837838
|
| 4. |
89837885
|
[1] |
DRIVEN SPROCKET
|
ZED
Superseded by part number: 9837885
|
| 5. |
84607750
|
[1] |
AUGER
|
ZED
|
| 5. |
84607795
|
[1] |
AUGER
|
ZED
|
| 6. |
84607747
|
[1] |
AUGER
|
ZED
|
| 6. |
84607794
|
[1] |
AUGER
|
ZED
|
| 7. |
86511478
|
[1] |
BOLT,Hex Serr, M8 x 1.25 x 16mm
|
ZED
|
| 8. |
84607815
|
[27] |
GUARD
|
ZED
, Serial Range: -C547 Superseded by part number: 84468627
|
| 8. |
84801631
|
[27] |
GUARD
|
ZED
, Start Serial: D548 Superseded by part number: 84468627
|
| 9. |
80333228
|
[1] |
KEY
|
ZED
Superseded by part number: 333228
|
| 10. |
140046
|
[12] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 11. |
89706685
|
[8] |
NUT
|
ZED
Superseded by part number: 9706685
|
| 12. |
80140046
|
[8] |
WASHER
|
ZED
Superseded by part number: 140046
|
| 13. |
9706685
|
[12] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 14. |
84607735
|
[2] |
ARM
|
ZED
|
| 15. |
84607749
|
[2] |
ANGLE
|
ZED
|
| 15. |
84607748
|
[2] |
SKID PLATE
|
ZED
|
| 16. |
80120041
|
[18] |
CARRIAGE BOLT
|
ZED
M10 x 20 Superseded by part number: 120041
|
| 17. |
100016
|
[6] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 18. |
80140045
|
[6] |
WASHER
|
ZED
Belleville, M10 Superseded by part number: 140045
|
| 19. |
84818655
|
[1] |
FRAME
|
ZED
Superseded by part number: 87535752, 86500688, 84025509, 84162041, 84162039, 87676773, 120100, 43158, 9832679, 370006, 322357, 140015, 100038, 87335294
|
| 19. |
84818648
|
[1] |
FRAME
|
ZED
Superseded by part number: 86500688, 87535752, 9832679, 84162039, 87616545, 84025509, 43158, 87335294, 370006, 322357, 140015, 120100, 100038, 84162041
|
| 20. |
338263
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8
|
ZED
|
| 21. |
89837884
|
[1] |
DRIVEN SPROCKET
|
ZED
Superseded by part number: 700056251, 9837884
|
