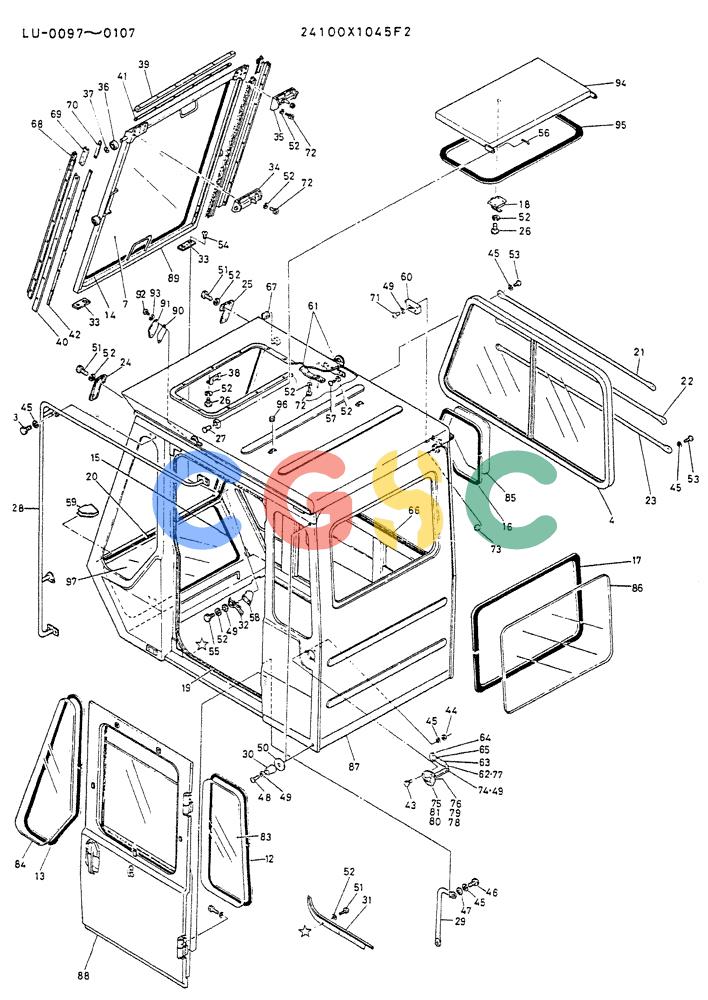

| . . | 24100X1045F2 | [1] | CAB ASSY (NA) | |
| 4. | 2427P1383 | [1] | WINDOW | KOB |
| 7. | 2427T663 | [1] | GLASS | KOB |
| 11. | 2427P1599 | [1] | FRAME, WINDOW | |
| 12. | R27T0006D37 | [1] | GROMMET | KOB |
| 13. | R27T0006D36 | [1] | RUBBER | KOB |
| 14. | R27T0006D63 | [1] | CHANNEL, RUBBER | CHANNEL, RUBBER |
| 15. | R27T0006D61 | [1] | GROMMET | KOB |
| 16. | R27T0006D27 | [1] | GROMMET | KOB |
| 17. | R27T0006D62 | [1] | CHANNEL, RUBBER | CHANNEL, RUBBER |
| 18. | 2427R294F1 | [1] | LATCH | LATCH |
| 19. | 2416Z220D3 | [1] | RUBBER SLEEVE | KOB |
| 20. | 2416Z220D1 | [1] | SEAL | KOB |
| 21. | 2427P1391D1 | [1] | HANDRAIL | KOB |
| 22. | 2427P1391D2 | [1] | RAIL, HAND | RAIL, HAND |
| 23. | 2427P1391D3 | [1] | RAIL, HAND | RAIL, HAND |
| 24. | 2414P1757D1 | [1] | COVER | |
| 25. | 2414P1757D2 | [1] | COVER | |
| 26. | ZS16C06014 | [6] | SCREW | KOBM06x1.0x16mm Superseded by part number: ZS18C06014 |
| 27. | 2419T2217 | [2] | PIN | KOB |
| 28. | 2427N1319 | [1] | HANDRAIL | |
| 29. | 2427P1417 | [1] | RAIL, HAND | RAIL, HAND |
| 30. | 2416T6167 | [2] | RUBBER SLEEVE | KOB |
| 31. | 2416P4734 | [1] | BRACKET | |
| 32. | 2427P1395 | [2] | LATCH | KOB |
| 33. | 2416T6303 | [2] | RUBBER SLEEVE | KOB |
| 34. | 2427P1392F2 | [1] | LATCH | LATCH |
| 35. | 2427P1392F1 | [1] | LATCH | LATCH |
| 36. | 2427Z382 | [4] | ROLLER | KOB |
| 37. | ZR36X00800 | [4] | SNAP RING | KOBSNAP |
| 38. | 2416T12302 | [1] | | |
| 39. | 2416T7503 | [1] | BRACKET | KOBBRACKET |
| 40. | 2416T7780 | [2] | | |
| 41. | 2421Z231D4 | [1] | BRUSH | BRUSH |
| 42. | 2421Z231D7 | [2] | BRUSH | |
| 43. | Z516C08020 | [11] | CAPSCREW | |
| 44. | ZN16C08007 | [3] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 45. | ZW26X08000 | [19] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 46. | ZS16C08016 | [2] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 47. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 46. | ZS31C06040 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 40mm | KOBM06x1.0x40mm |
| 49. | ZW16K06000 | [7] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 50. | 2418T6681 | [2] | PLATE | KOB |
| 51. | ZS16C06008 | [9] | CAPSCREW M06x1.0x08mm | CAPSCREW M06x1.0x08mm |
| 52. | ZW26X06000 | [45] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 53. | ZS31C06020 | [6] | SCREW,Phillips Drive, Pan HD, M6 x 20mm | KOBM06x1.0x20mm |
| 54. | ZS41C06012 | [4] | MACHINE SCREW M06x1.0x12mm | MACHINE SCREW M06x1.0x12mm |
| 55. | ZS16C06012 | [4] | SCREW | KOBM06x1.0x12mm |
| 56. | ZP15D03015 | [2] | COTTER PIN | KOB Superseded by part number: ZP15D03035, 77276179 |
| 57. | ZS23C06012 | [4] | SCREW,Hex Socket Head, M6 x 12mm | KOBM06x1.0x12mm |
| 60. | 2416T6170 | [2] | RUBBER | RUBBER |
| 61. | 2418T3991 | [4] | PLATE | KOB |
| 62. | 2406T1364 | [1] | ROD | KOB |
| 63. | ZX15K06035 | [1] | TUBE, NYLON | TUBE, NYLON |
| 64. | 2406Z194 | [1] | GRIP | KOB |
| 65. | ZN16C05004 | [1] | NUT | KOBM05x0.8mm Superseded by part number: ZN18C05004 |
| 66. | 2416Z220D4 | [1] | SEAL | KOB |
| 67. | 2405T757 | [2] | BUSHING | BUSHING |
| 68. | 2416T7505 | [2] | BRACKET | KOB |
| 69. | 2416T7506 | [2] | BRACKET | KOB |
| 70. | 2421Z231D6 | [2] | BRUSH | BRUSH |
| 71. | ZS31C06025 | [4] | SCREW,Phillips Drive, Pan HD, M6 x 25mm | KOBM06x1.0x25mm |
| 72. | ZS23C06016 | [16] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm Superseded by part number: ZS28C06016 |
| 73. | 2405T768 | [2] | BUSHING | BUSHING |
| 74. | 2418T6441 | [1] | PLATE | KOB |
| 75. | B16P0146 | [1] | BRACKET | BRACKET |
| 76. | B17P0004 | [1] | SPRING | KOB |
| 77. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 78. | ZP15K02018 | [1] | SPRING | KOB Superseded by part number: ZP15K02035 |
| 79. | B19P0043D54 | [1] | PIN | KOBPIN Superseded by part number: ZP45X10045 |
| 80. | 2418T6680 | [1] | PLATE | PLATE |
| 81. | 2418T6709 | [1] | PACKING | KOB |
| 82. | 2416Z176D5 | [1] | SEAT, RUBBER | SEAT, RUBBER |
| 83. | 2427T520C2 | [1] | GLASS | KOB |
| 84. | 2427T512C2 | [1] | GLASS | HIT |
| 85. | 2427T511C2 | [1] | GLASS | KOB |
| 86. | 2427T639C2 | [1] | GLASS | KOB |
| 87. | 2427N431 | [1] | CAB | |
| 88. | 2427P1642 | [1] | DOOR ASSY, SEE FIG. 02-015 | |
| 88-1. | 24100J2500F1 | [1] | DOOR ASSY | DOOR ASSY |
| 89. | 2427P1641 | [1] | FRAME, WINDOW | |
| 90. | 2418T6760 | [1] | PACKING | |
| 91. | 2414T1394 | [1] | COVER | |
| 92. | ZS31C04012 | [2] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOBM04x0.7x12mm |
| 93. | ZW26X04000 | [2] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 97. | 2427T968 | [1] | GLASS | HIT |
