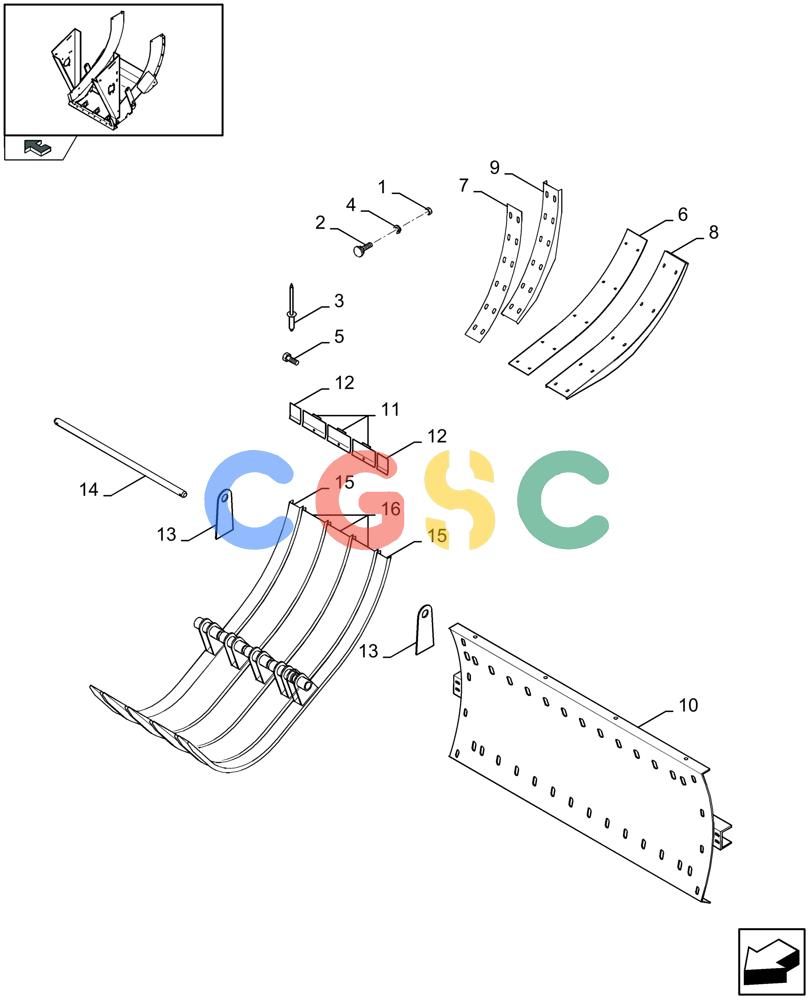

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (13.32[01]) - FILL FLOW KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 2. |
43138
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 3. |
NS
|
[1] |
NOT SERVICED
|
BAS
RIVET
|
| 4. |
80140045
|
[1] |
WASHER
|
ZED
10 MM Superseded by part number: 140045
|
| 5. |
80338949
|
[1] |
CARRIAGE BOLT
|
ZED
M40 x 25 Superseded by part number: 338949
|
| 6. |
84607490
|
[3] |
PLATE
|
ZED
|
| 7. |
84607491
|
[2] |
PLATE
|
ZED
|
| 8. |
84607485
|
[3] |
PLATE
|
ZED
|
| 9. |
84607487
|
[2] |
STIFFENER
|
ZED
|
| 10. |
84078472
|
[1] |
PLATE
|
ZED
|
| 11. |
84058535
|
[3] |
PLATE
|
ZED
|
| 12. |
84058536
|
[2] |
PLATE
|
ZED
|
| 13. |
84058467
|
[2] |
PLATE
|
ZED
|
| 14. |
84038868
|
[1] |
ROD
|
ZED
|
| 15. |
84058443
|
[2] |
GUIDE
|
ZED
|
| 16. |
84058412
|
[3] |
GUIDE
|
ZED
|
