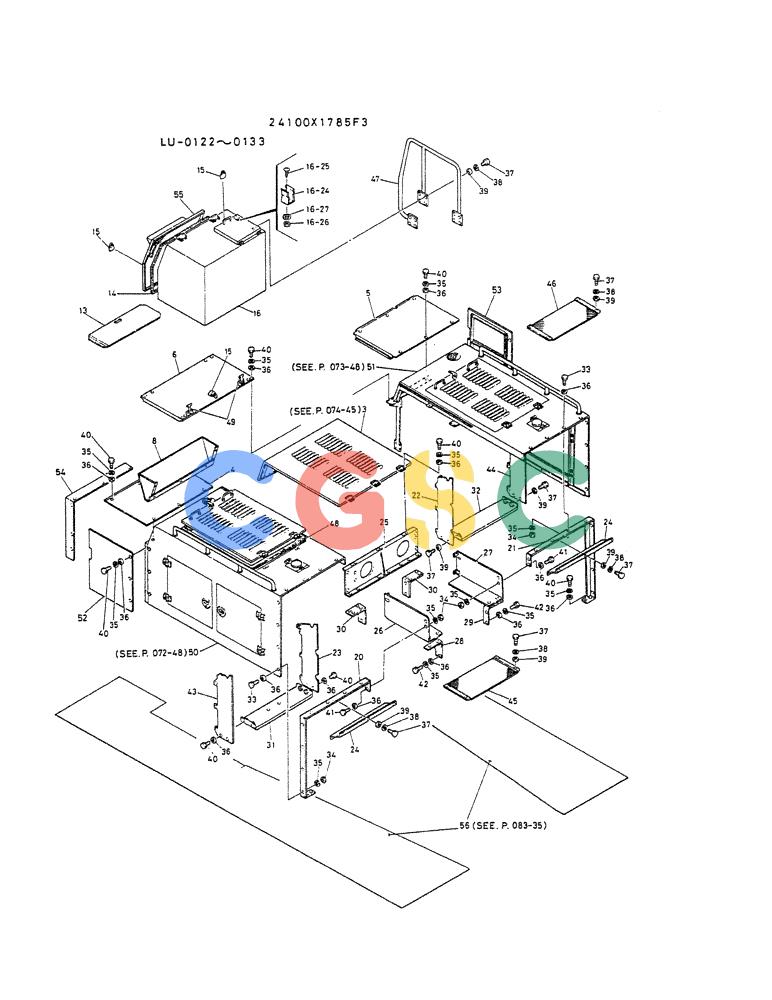

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (02-026) - GUARD ASSY (FOR NORWAY) P/N 24100X1785F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
713 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X1785F3 | [1] | GUARD ASSY (FOR NORWAY) | |
| 3. | 24100N3313F1 | [1] | GUARD ASSY, SEE FIG. 02-044 | |
| 4. | 2414P2539 | [1] | COVER | |
| 5. | 2414P2425 | [1] | COVER COV ER | COVER COV ER |
| 6. | 2414P3634 | [1] | GUARD | |
| 8. | 2427P1685 | [1] | Duct | |
| 13. | 2414P2190 | [1] | cover | |
| 14. | 2416Z218D11 | [1] | SEAT, RUBBER | |
| 15. | 21Z1 | [3] | WRENCH | KOBKEY, LOCK PADLOCK, wITH KEYS |
| 16. | 2427J1125 | [1] | BOX, TOOL | |
| 16-24. | 2427T328 | [2] | LOCK | |
| 16-25. | ZS31C05012 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBM05x0.8x12mm |
| 16-26. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 16-27. | ZW22X05000 | [4] | LOCK WASHER | KOBID 05 x OD 09.2 x Th 1.3mm |
| 20. | 2416P6207 | [1] | BRACKET | |
| 21. | 2416P6206 | [1] | BRACKET | BRACKET |
| 22. | 2427P1941D1 | [1] | DUCT | |
| 23. | 2427P1941D2 | [1] | DUCT | |
| 24. | 2427P1679 | [2] | DUCT | |
| 25. | 2416P11393 | [1] | BRACKET | |
| 26. | 2416P5987D2 | [1] | BRACKET | |
| 27. | 2416P5987D1 | [1] | BRACKET | |
| 28. | 2416T5329D2 | [1] | BRACKET | |
| 29. | 2416T5329D1 | [1] | BRACKET | |
| 30. | 2416T5330 | [2] | BRACKET | |
| 31. | 2427P1681 | [1] | DUCT | DUCT |
| 32. | 2427P1682 | [1] | DUCT | |
| 33. | ZS16C12030 | [16] | CAPSCREW M12x1.75x30mm | CAPSCREW M12x1.75x30mm |
| 34. | ZN16C12010 | [20] | NUT | KOB Superseded by part number: ZN18C12010 |
| 35. | ZW26X12000 | [75] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 36. | ZW16X12000 | [75] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 37. | ZS16C10015 | [21] | CAPSCREW M10x1.50x15mm | CAPSCREW M10x1.50x15mm |
| 38. | ZW26X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 39. | ZW16X10000 | [21] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 40. | ZS16C12025 | [42] | CAPSCREW M12x1.75x25mm | CAPSCREW M12x1.75x25mm |
| 41. | ZS16C12040 | [21] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040, 77276427 |
| 42. | ZS16C12020 | [32] | KEY | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 43. | 2427P1680D1 | [1] | DUCT | DUCT |
| 44. | 2427P1680D2 | [1] | DUCT | |
| 45. | 2414P2559 | [1] | COVER | |
| 46. | 2414P2560 | [1] | COVER | |
| 47. | 2406N455 | [1] | HANDRAIL | |
| 48. | 2416Z218D9 | [2] | SEAT, RUBBER | |
| 49. | R27T0013D2 | [2] | LATCH | KOB |
| 50. | 24100J5735F2 | [1] | GUARD ASSY, SEE FIG. 02-036 | |
| 51. | 24100J5734F2 | [1] | GUARD ASSY, SEE FIG. 02-042 | |
| 52. | 2414P3755D1 | [1] | COVER | |
| 53. | 2414P3755D2 | [1] | COVER | |
| 54. | 2414P4466 | [1] | COVER | |
| 55. | 2414N2670 | [1] | COVER | |
| 56. | 24100J7269F1 | [1] | COVER ASSY, SEE FIG. 02-047 | |
