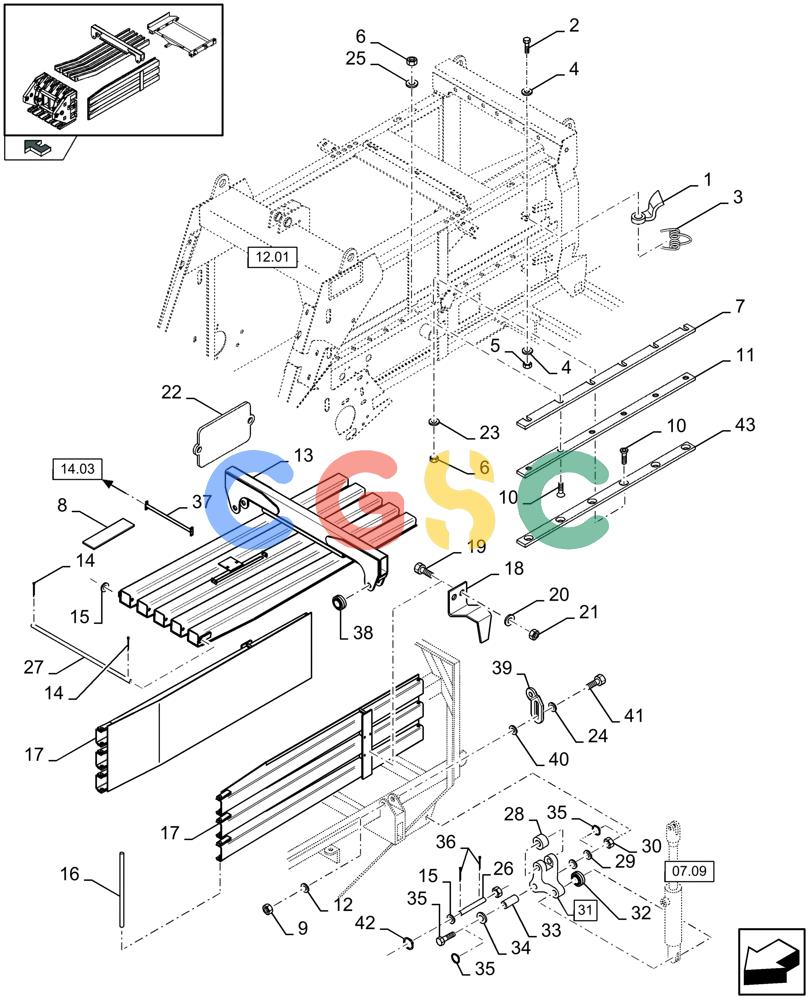

| 1. |
89837987
|
[1] |
GUIDE
|
ZED
Superseded by part number: 9837987
|
| 2. |
80043874
|
[1] |
SCREW
|
ZED
M16 x 110 Superseded by part number: 43874
|
| 3. |
84806594
|
[1] |
SPRING
|
ZED
|
| 4. |
80051639
|
[1] |
WASHER
|
ZED
16 MM Superseded by part number: 51639
|
| 5. |
86000441
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 6. |
86514720
|
[24] |
NUT
|
WIN
Superseded by part number: 190003888452
|
| 7. |
84444575
|
[1] |
SHIM,60mm OD x 0.5mm Thk
|
ZED
THK.: 0.5 MM
|
| 7. |
84444574
|
[1] |
ADJUSTING PLATE
|
ZED
THK.: 1 MM
|
| 8. |
80401502
|
[1] |
ANTI-SKID STRIP
|
ZED
L= 1.750 M Superseded by part number: 401502
|
| 9. |
100020
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 10. |
80412466
|
[24] |
SCREW
|
ZED
M10 x 35 Superseded by part number: 412466
|
| 11. |
89837986
|
[2] |
GUIDE
|
ZED
Superseded by part number: 9837986
|
| 12. |
80140048
|
[2] |
WASHER
|
ZED
Superseded by part number: 140048
|
| 13. |
84800775
|
[1] |
DOOR
|
ZED
|
| 13. |
84817507
|
[1] |
DOOR
|
ZED
|
| 13. |
84807574
|
[1] |
DOOR
|
ZED
|
| 13. |
84807568
|
[1] |
DOOR
|
ZED
|
| 14. |
80412687
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 412687
|
| 15. |
80378247
|
[1] |
WASHER
|
ZED
20 MM Superseded by part number: 378247
|
| 16. |
84818491
|
[2] |
ROD
|
ZED
|
| 16. |
84818495
|
[2] |
ROD
|
ZED
|
| 17. |
84818277
|
[2] |
DOOR
|
ZED
|
| 17. |
84818284
|
[2] |
DOOR
|
ZED
Superseded by part number: 84460319
|
| 17. |
84460319
|
[2] |
DOOR
|
ZED
, Start Serial: D440
|
| 18. |
84078501
|
[2] |
SUPPORT
|
ZED
|
| 19. |
89706687
|
[4] |
SCREW
|
ZED
M12x 30 Superseded by part number: 9706687
|
| 20. |
80140046
|
[4] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 21. |
89706685
|
[4] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 22. |
84021078
|
[2] |
COVER
|
ZED
|
| 23. |
80140042
|
[12] |
WASHER
|
ZED
Superseded by part number: 140042
|
| 24. |
84005115
|
[2] |
WASHER,17mm ID x 50mm OD x 6mm Thk
|
ZED
|
| 25. |
80378244
|
[24] |
LOCK WASHER
|
ZED
M10 Superseded by part number: 378244
|
| 26. |
89838029
|
[1] |
SHAFT
|
ZED
, Serial Range: -C499 Superseded by part number: 87346836
|
| 26. |
87346836
|
[1] |
PIN,20mm OD x 82mm L
|
ZED
, Start Serial: D500
|
| 27. |
84818497
|
[1] |
ROD
|
ZED
|
| 27. |
84818493
|
[1] |
ROD
|
ZED
|
| 28. |
89838030
|
[1] |
ROLLER
|
ZED
Superseded by part number: 9838030
|
| 29. |
80321245
|
[4] |
LOCK WASHER
|
ZED
Superseded by part number: 321245
|
| 30. |
89837788
|
[1] |
NUT
|
ZED
, Serial Range: -C404 Superseded by part number: 9837788
|
| 31. |
84012859
|
[4] |
LEVER
|
ZED
(32)
|
| 31. |
89837996
|
[1] |
LEVER
|
ZED
(32) Superseded by part number: 9837996
|
| 32. |
89838429
|
[4] |
BEARING ASSY
|
ZED
Superseded by part number: 9838429
|
| 33. |
89838028
|
[1] |
RING
|
ZED
, Serial Range: -C404 Superseded by part number: 9838028
|
| 33. |
84800563
|
[1] |
SHAFT
|
ZED
, Start Serial: D405
|
| 34. |
80378248
|
[1] |
WASHER
|
ZED
24 MM, Serial Range: -C404 Superseded by part number: 378248
|
| 34. |
84800564
|
[1] |
WASHER,38.5mm ID x 50mm OD x 2mm Thk
|
ZED
, Start Serial: D405
|
| 35. |
89838027
|
[1] |
SCREW
|
ZED
M24 x 120, Serial Range: -C404 Superseded by part number: 9838027
|
| 35. |
80300632
|
[1] |
RETAINER
|
ZED
, Start Serial: D405 Superseded by part number: 11068676
|
| 36. |
80412686
|
[1] |
COTTER PIN
|
ZED
, Serial Range: -C499 Superseded by part number: 412686
|
| 37. |
84817692
|
[1] |
TUBE
|
ZED
|
| 37. |
84817391
|
[1] |
TUBE
|
ZED
|
| 39. |
84814093
|
[1] |
PLATE
|
ZED
LH
|
| 39. |
84814094
|
[1] |
PLATE
|
ZED
RH
|
| 40. |
80376291
|
[2] |
RING
|
ZED
Superseded by part number: 376291
|
| 41. |
80043168
|
[2] |
BOLT
|
ZED
Superseded by part number: 43168
|
| 42. |
370024
|
[1] |
CIRCLIP,M20, Ext
|
NH
, Start Serial: D500
|
| 43. |
9837986
|
[2] |
GUIDE
|
ZED
6 Holes
|
| 43. |
84801492
|
[2] |
GUIDE
|
ZED
7 Holes
|
