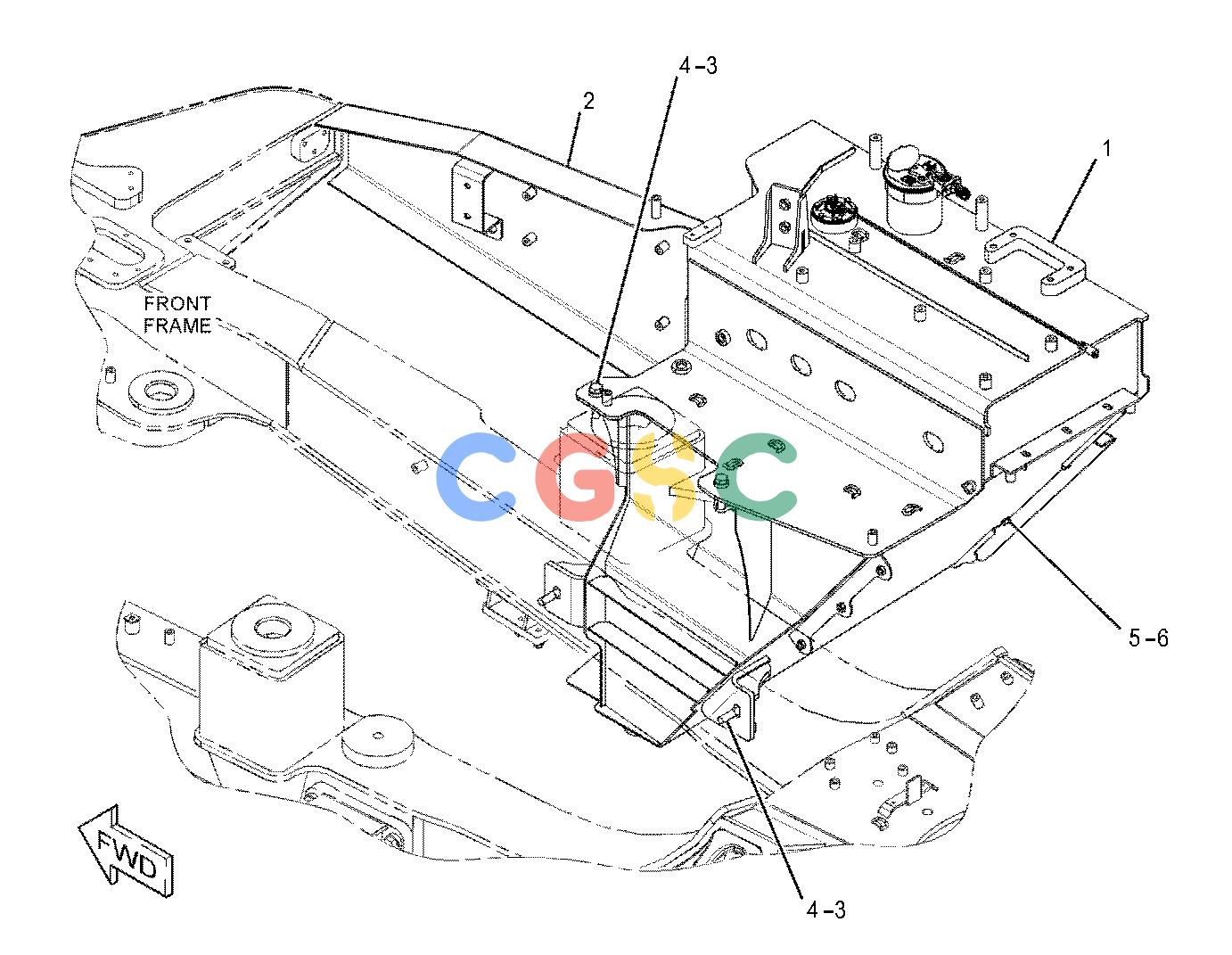

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 384-8591Y | [1] | TANK GP-FUEL | |
| 2. | 389-7116 | [1] | COVER AS(RH) | |
| 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | ||
| 9R-2160M | [6] | BOSS(M8X1.25X25-MM) | ||
| 183-7602M | [1] | BOSS-THREADED(M10X1.5-THD) | ||
| 3. | 198-4780 | [4] | WASHER-HARD(17.5X32X8-MM THK) | |
| 4. | 7X-2554M | [4] | BOLT(M16X2X70-MM) | |
| 5. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
