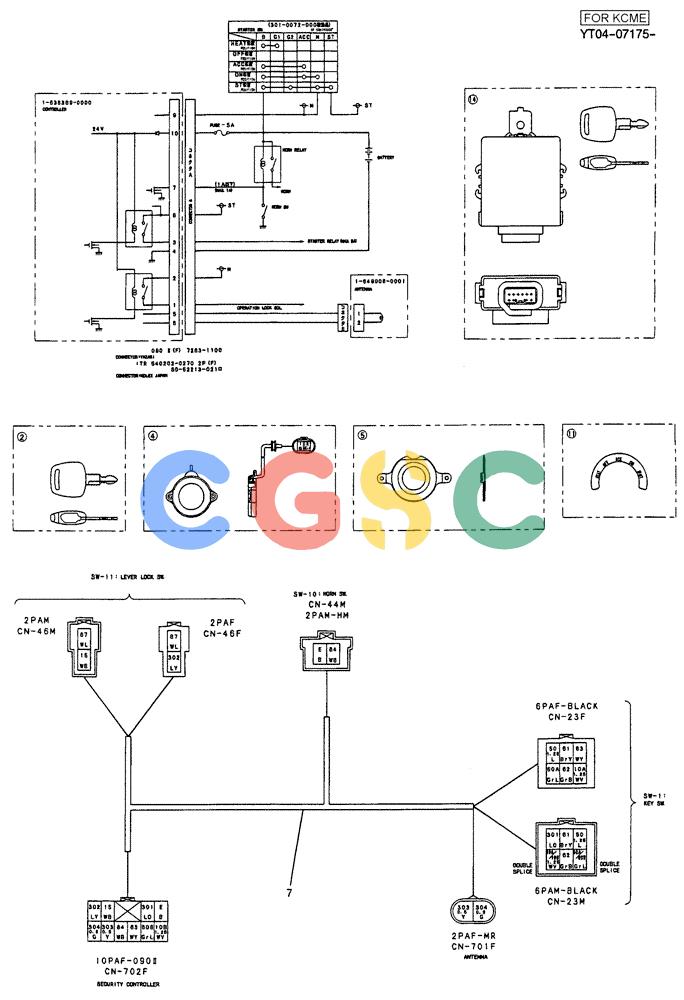

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (05-015[02]) - ELEC ASSY, UPP (FOR ANTI-THEFT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
176 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT01E00001F3 | [1] | WRENCH | KOBKEY, LOCK ELEC ASSY, UPP (STD KEY 5 EQUIV ALENT) |
| 2. | YN01E01005P1 | [1] | IGNITION KEY | KOBKEY |
| 4. | YN54S00009P1 | [1] | ANTENNA | KOBANTENNA |
| 5. | YN54S01001P1 | [1] | STAY | KOBSTAY |
| 6. | ZS31C03005 | [2] | CAPSCREW | |
| 7. | YT13E01040P1 | [1] | HARNESS | |
| 8. | ZS18C06016 | [1] | SCREW,Hex, M6 x 16mm | KOBCAP |
| 9. | ZW26X06000 | [1] | LOCK WASHER | KOB |
| 10. | ZW16X06000 | [1] | WASHER | KOB Superseded by part number: 86588450 |
| 11. | YN01E01007P1 | [1] | LABEL | |
| 14. | YN54S00025P2 | [1] | CLUTCH | KOB |
