神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (02-032) - GUARD ASSY, P/N 24100J5735F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
540 次

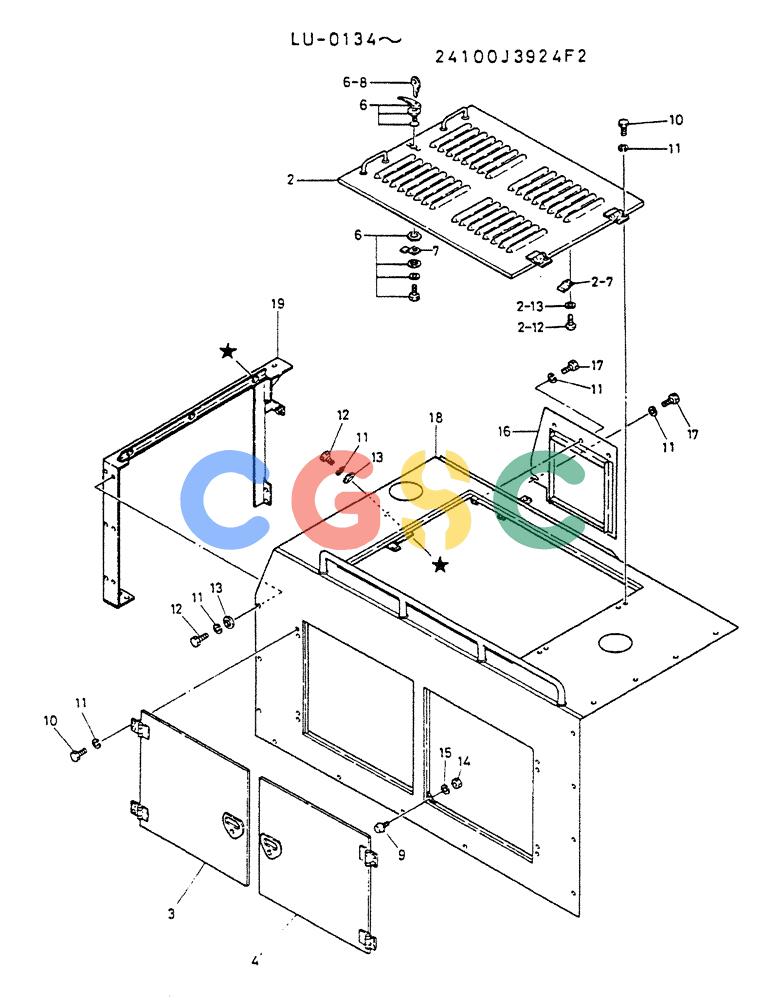

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J3924F2 | [1] | GUARD -ASSY | |
| 2. | 2414N1623 | [1] | DOOR | |
| 2-7. | B16T0530 | [1] | CLIP | CLIP |
| 2-12. | ZS31C06010 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 2-13. | ZW22X06000 | [2] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 3. | 2414P2561 | [1] | DOOR | DOOR |
| 4. | 2414P2562 | [1] | DOOR | DOOR |
| 5. | 2416N2307 | [1] | BRACKET | BRACKET |
| 6. | 2427R171D2 | [1] | HANDLE | KOB |
| 7. | 2418T7655 | [1] | PLATE | |
| 9. | 2416T6682 | [4] | RUBBER BAND | KOB |
| 10. | ZS18C12020 | [12] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 11. | ZW26X12000 | [22] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 12. | ZS18C12025 | [6] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 13. | ZW16X12000 | [6] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 14. | ZN16C05004 | [4] | NUT | KOBM05x0.8mm Superseded by part number: ZN18C05004 |
| 15. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 16. | 2414PS363 | [1] | COVER | |
| 17. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 18. | 2414J1615 | [1] | GUARD | |
| 19. | 2416N4259 | [1] | BRACKET | |
