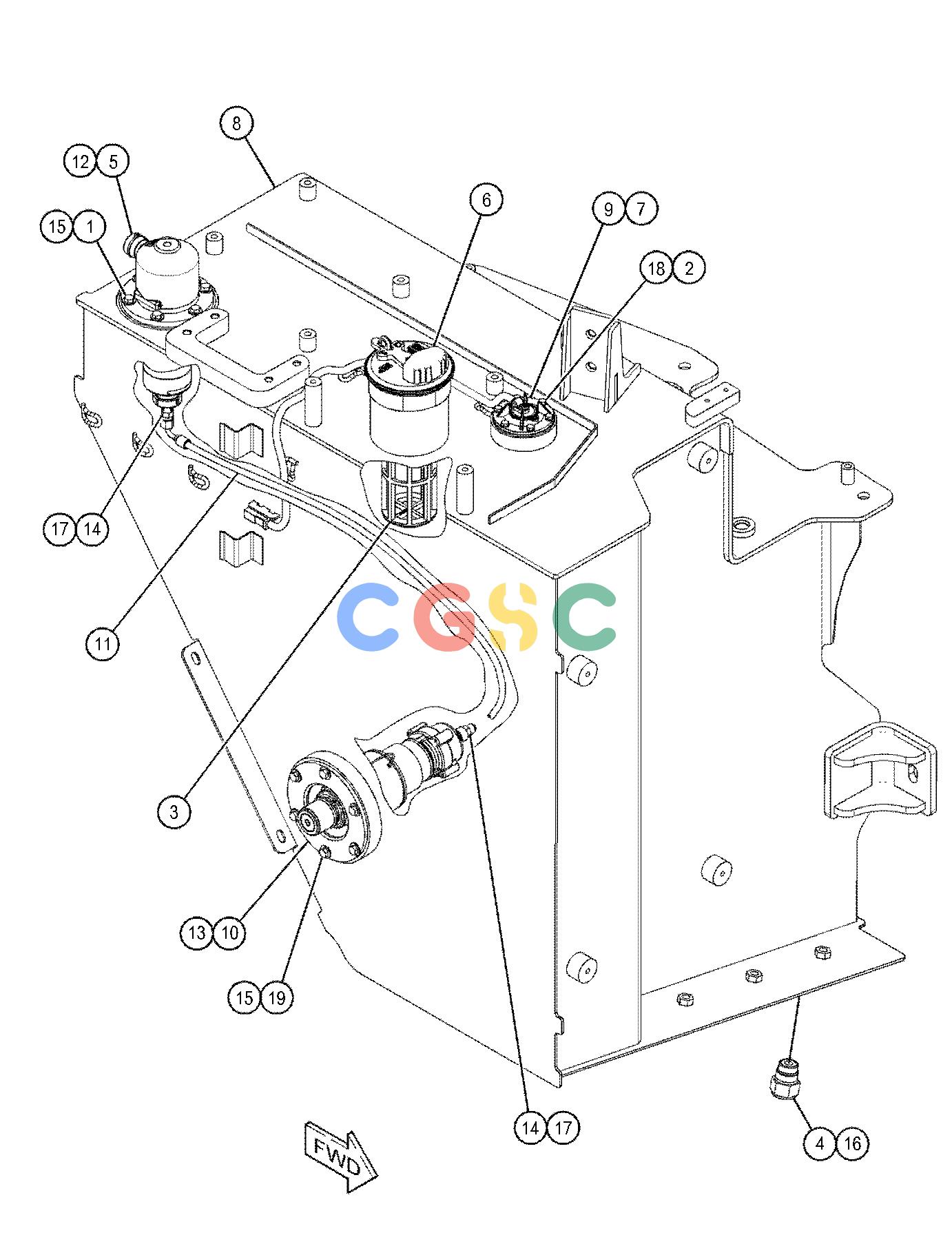

卡特零件查询（730C） 376-9844: TANK GP-FUEL
广数供应链运营团队, 15 02月, 2025，浏览：
521 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| 2. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 3. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK) | |
| 4. | 248-0833 | [1] | PLUG AS-DRAIN(FUEL TANK) | |
| | 3S-9233 | [1] | SEAL-O-RING | |
| | 5L-4759 | [1] | SEAL-O-RING | |
| 5. | 252-5805 | [1] | VENT AS | |
| 6. | 349-7059 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| | 350-7735 | [1] | KIT-CAP FILTER(FUEL TANK) | |
| | | | (INCLUDES BREATHER BODY, GASKET, SCREWS & WASHERS) |
| 7. | 363-4122 | [1] | GASKET | |
| 8. | 462-4576Y | [1] | TANK GP-FUEL | |
| 9. | 380-3891 | [1] | SENDER AS-FUEL LEVEL(TANK) | |
| | 382-1939 | [1] | KIT-DIAL SENSOR | |
| | | | (INCLUDES SENSOR AS, SCREWS, RECEPTACLE AS, WEDGE & PIN CONNECTORS) |
| | 6C-3060 | [1] | GASKET | |
| | | | -OR- |
| | 363-4122BH | [1] | GASKET | |
| 10. | 391-5746 | [1] | VALVE AS(RECESSED) | |
| | 005-8593 | [1] | SEAL-O-RING | |
| | 471-8197 | [1] | ADAPTER-FAST FILL FUEL | |
| 11. | 415-3841I | [1] | HOSE AS | |
| 12. | 1H-8128 | [1] | SEAL-O-RING | |
| 13. | 259-4598 | [1] | SEAL-O-RING | |
| 14. | 5P-2618 | [2] | CONNECTOR | |
| 15. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 16. | 5P-7701 | [1] | SEAL-O-RING | |
| 17. | 5P-7814 | [2] | SEAL-O-RING | |
| 18. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 19. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| | B | | USE AS REQUIRED |
| | H | | USE FOR BIO-DIESEL APPLICATION |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
