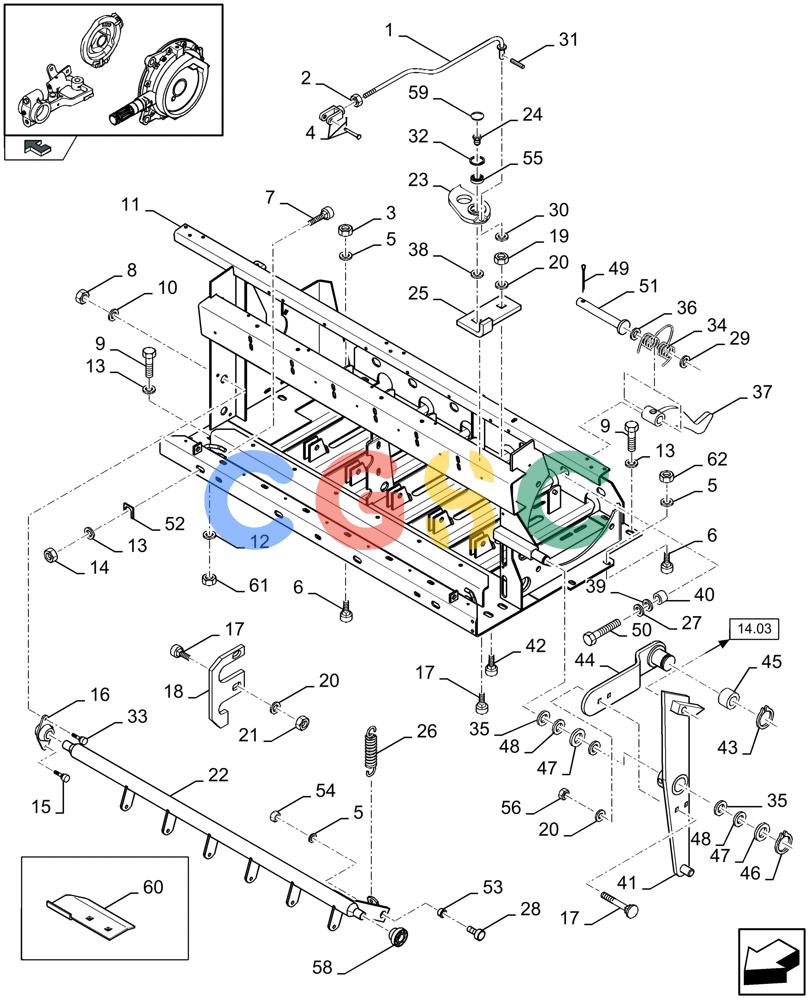

| 1. |
84818537
|
[1] |
TIE-ROD,M10 x 333.4mm
|
ZED
|
| 2. |
84807411
|
[1] |
THIN NUT,Thin, M10 x 1.5, Cl 04
|
ZED
Superseded by part number: 57039
|
| 3. |
89706685
|
[1] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 4. |
89838355
|
[1] |
YOKE
|
ZED
Superseded by part number: 9838355
|
| 5. |
80140046
|
[1] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 6. |
80120044
|
[1] |
BOLT
|
ZED
M12 x 30 Superseded by part number: 120044
|
| 7. |
89838060
|
[4] |
SCREW
|
ZED
Superseded by part number: 86595832
|
| 8. |
89706690
|
[4] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 9. |
80043168
|
[10] |
BOLT
|
ZED
M16 x 40 Superseded by part number: 43168
|
| 10. |
80322358
|
[4] |
LOCK WASHER
|
ZED
Superseded by part number: 322358
|
| 11. |
84074043
|
[1] |
FRAME
|
ZED
|
| 11. |
84807795
|
[1] |
FRAME
|
ZED
|
| 12. |
80378246
|
[1] |
WASHER
|
ZED
Superseded by part number: 378246
|
| 13. |
80140048
|
[1] |
WASHER
|
ZED
16 MM Superseded by part number: 140048
|
| 14. |
100020
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 15. |
80308761
|
[3] |
SCREW,M8 x 25mm
|
ZED
M8 x 25 Superseded by part number: 308761
|
| 16. |
89837806
|
[2] |
BEARING ASSY
|
ZED
Superseded by part number: 9837806
|
| 17. |
86512446
|
[1] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 18. |
84806104
|
[1] |
SUPPORT
|
ZED
|
| 19. |
84817613
|
[1] |
NUT
|
ZED
M10
|
| 20. |
80140045
|
[1] |
WASHER
|
ZED
Belleville, M10 Superseded by part number: 140045
|
| 21. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 22. |
84074044
|
[1] |
SHAFT
|
ZED
|
| 22. |
84814306
|
[1] |
SHAFT
|
ZED
|
| 23. |
84817164
|
[1] |
FINGER
|
ZED
|
| 24. |
84817604
|
[1] |
INSERT,M10 x 6
|
ZED
|
| 25. |
84817602
|
[1] |
PLATE
|
ZED
|
| 26. |
89838359
|
[1] |
SPRING
|
ZED
Superseded by part number: 9838359
|
| 27. |
80378245
|
[1] |
WASHER
|
ZED
Superseded by part number: 378245
|
| 28. |
89838366
|
[1] |
ROLLER
|
ZED
Superseded by part number: 9838366
|
| 29. |
84058945
|
[1] |
WASHER,16.5mm ID x 41mm OD x 6mm Thk
|
ZED
|
| 30. |
84818558
|
[1] |
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
|
ZED
Superseded by part number: 86625251
|
| 31. |
84807090
|
[1] |
ROLL PIN
|
ZED
|
| 32. |
80300642
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 300642
|
| 33. |
86512443
|
[1] |
CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd
|
ZED
|
| 34. |
84806594
|
[1] |
SPRING
|
ZED
|
| 35. |
80000673
|
[2] |
WASHER
|
ZED
Superseded by part number: 673
|
| 36. |
80051639
|
[1] |
WASHER
|
ZED
Superseded by part number: 51639
|
| 37. |
84021708
|
[1] |
SUPPORT
|
ZED
|
| 38. |
80394629
|
[1] |
LOCK WASHER
|
ZED
, Serial Range: -C643 Superseded by part number: 394629
|
| 38. |
300368
|
[1] |
SPRING,10.199mm ID x 20mm OD x 1.1mm Thk
|
ZED
, Start Serial: D644
|
| 39. |
80080679
|
[1] |
LOCK WASHER
|
ZED
Superseded by part number: 80679
|
| 40. |
89838358
|
[1] |
RING
|
ZED
Superseded by part number: 9838358
|
| 41. |
84074883
|
[1] |
ARM
|
ZED
|
| 42. |
80120041
|
[1] |
CARRIAGE BOLT
|
ZED
M10 x 20 Superseded by part number: 120041
|
| 43. |
80370024
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 370024
|
| 44. |
84000033
|
[1] |
ARM
|
ZED
|
| 45. |
89838376
|
[1] |
ROLLER
|
ZED
Superseded by part number: 9838376
|
| 46. |
80300629
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 300629
|
| 47. |
84000011
|
[2] |
WASHER,30.5mm ID x 40mm OD x 1mm Thk
|
ZED
|
| 48. |
80000672
|
[2] |
WASHER
|
ZED
Superseded by part number: 672
|
| 49. |
80130007
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 83903970
|
| 50. |
86629541
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 51. |
84078725
|
[1] |
CLEVIS PIN,16mm OD x 100mm L
|
ZED
|
| 52. |
67606
|
[1] |
SHIM,0.6mm Thk
|
GI
Superseded by part number: 86622605
|
| 53. |
84014757
|
[1] |
BUSHING,12mm ID x 25mm OD x 14mm L
|
ZED
|
| 54. |
80399555
|
[1] |
NUT
|
ZED
M12 Superseded by part number: 399555
|
| 55. |
84806280
|
[2] |
BALL BEARING,15mm ID x 35mm OD x 14.4mm W
|
ZED
|
| 56. |
80100037
|
[2] |
NUT,M10 x 1.5, Class 8
|
ZED
M10 Superseded by part number: 100037
|
| 57. |
86537860
|
[1] |
BAFFLE
|
ZED
NEEDLE SLOT
|
| 58. |
84817518
|
[1] |
BALL BEARING,25mm ID x 47mm OD x 12mm W
|
ZED
|
| 59. |
84817615
|
[1] |
CAP COVER
|
ZED
|
| 60. |
84800791
|
[1] |
PLATE
|
ZED
|
| 61. |
86000441
|
[8] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 62. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
