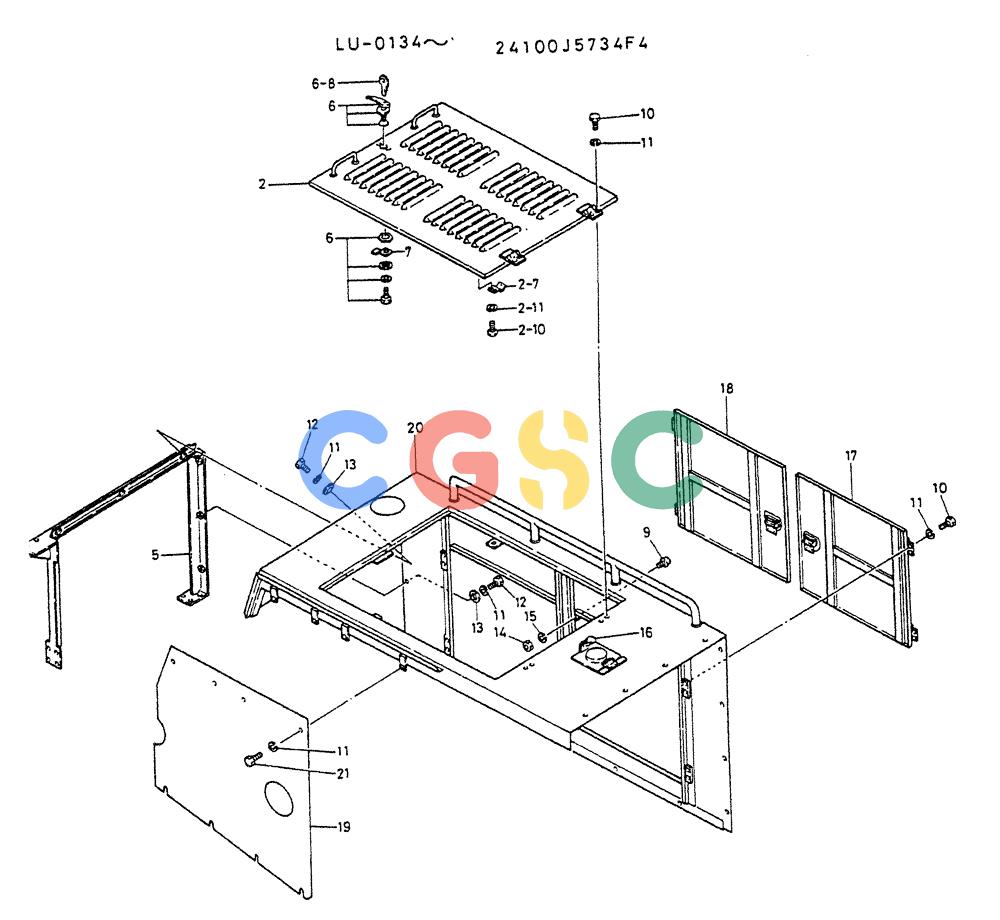

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5734F4 | [1] | GUARD ASSY | |
| 2. | 2414N1622 | [1] | DOOR | |
| 2-7. | B16T0530 | [1] | CLIP CLIP | CLIP CLIP |
| 2-12. | ZS31C06010 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 2-13. | ZW22X06000 | [2] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 5. | 2416N1867D2 | [5] | BRACKET | BRACKET |
| 6. | 2427R171 | [1] | HANDLE | KOB |
| 6-8. | 2427R171S8 | [2] | KEY | KOB |
| 7. | 2418T7655 | [1] | PLATE | |
| 9. | 2416T6682 | [4] | RUBBER BAND | KOBCUSHION |
| 10. | ZS16C12020 | [12] | KEY | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 11. | ZW26X12000 | [22] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 12. | ZS16C12025 | [6] | CAPSCREW M12x1.75x25mm | CAPSCREW M12x1.75x25mm |
| 13. | ZW16X12000 | [6] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 14. | ZN16C05004 | [4] | NUT | KOBM05x0.8mm Superseded by part number: ZN18C05004 |
| 15. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 16. | 21Z1 | [1] | WRENCH | KOBKEY, LOCK PADLOCK, WITH KEYS |
| 17. | 2414P3753 | [1] | DOOR | |
| 18. | 2414P3754 | [1] | DOOR | |
| 19. | 2414N3165 | [1] | COVER | |
| 20. | 2414J1616 | [1] | GUARD | |
| 21. | ZS16C12030 | [4] | CAPSCREW M12x1.75x30mm | CAPSCREW M12x1.75x30mm |
