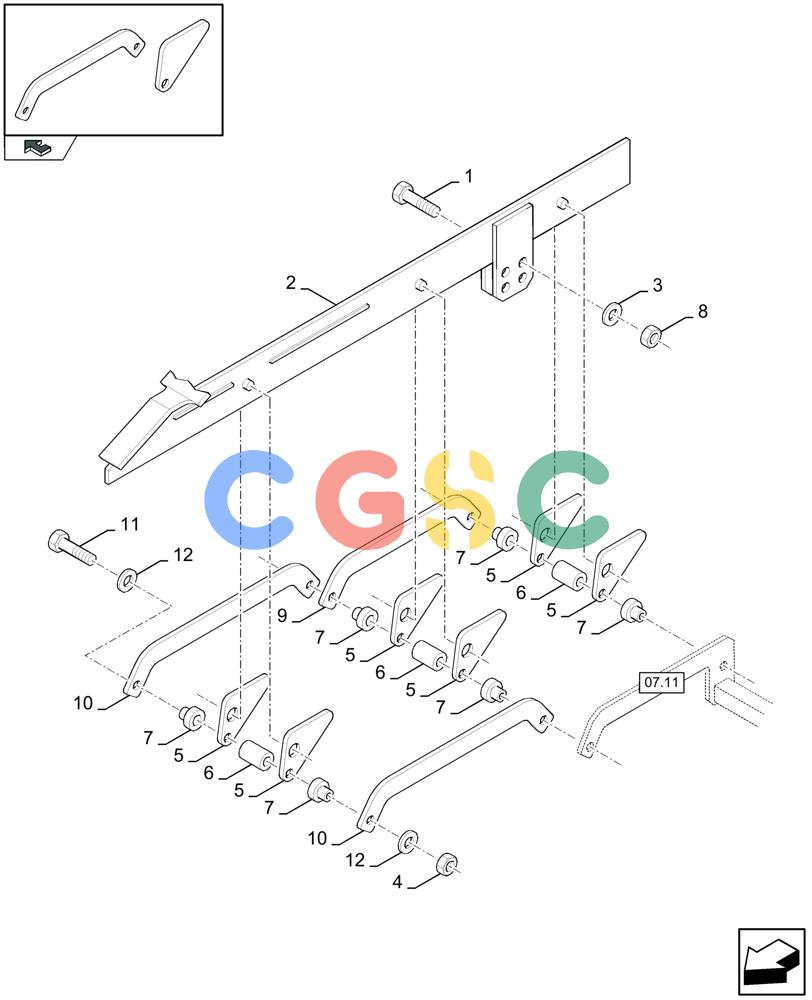

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (16.01[01]) - BALE EJECT SYSTEM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
901 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89706702
|
[8] |
SCREW
|
ZED
M12 x 50 Superseded by part number: 9706702
|
| 2. |
84062262
|
[2] |
BAR
|
ZED
|
| 3. |
80140046
|
[8] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 4. |
80100037
|
[6] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 5. |
84004660
|
[12] |
TOOTH
|
ZED
|
| 6. |
84004713
|
[6] |
BUSHING,10.5mm ID x 25mm OD x 18mm L
|
ZED
|
| 7. |
84004672
|
[12] |
BUSHING,10.5mm ID x 20mm OD x 24mm L
|
ZED
|
| 8. |
89706685
|
[8] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 9. |
84441918
|
[2] |
LINK BLOCK
|
ZED
|
| 10. |
84004674
|
[4] |
LINK BLOCK
|
ZED
|
| 11. |
80120075
|
[6] |
SCREW
|
ZED
M10 x 100 Superseded by part number: 120075
|
| 12. |
80378244
|
[12] |
LOCK WASHER
|
ZED
Superseded by part number: 378244
|
