神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (02-044) - GUARD ASSY, P/N 24100N3313F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
565 次

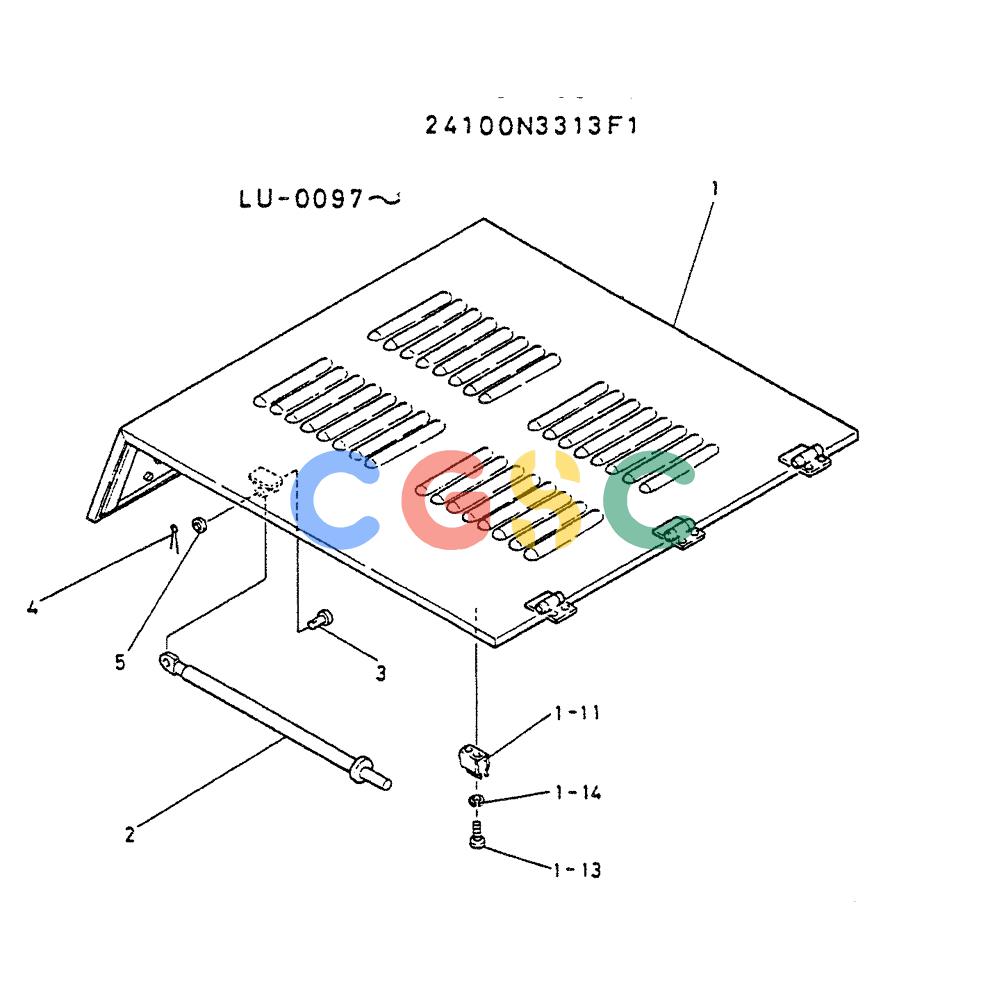

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3313F1 | [1] | GUARD ASSY (NA) | |
| 1. | 2414J1255 | [1] | GUARD | |
| 1-11. | 2427T519 | [2] | LOCK | LOCK |
| 1-13. | ZS31C04012 | [4] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOBM04x0.7x12mm |
| 1-14. | ZW22X04000 | [4] | LOCK WASHER | KOBID 04 x OD 07.6 x Th 1.0mm Superseded by part number: ZW26X04000 |
| 2. | 2406P1355D2 | [2] | STAY | |
| 3. | ZP15D04040 | [2] | COTTER PIN | KOBOD 04 x 40mm Long Superseded by part number: ZP15D04050 |
| . . | ZP45X16050 | [2] | PIN | |
| 5. | ZW16X16000 | [4] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
